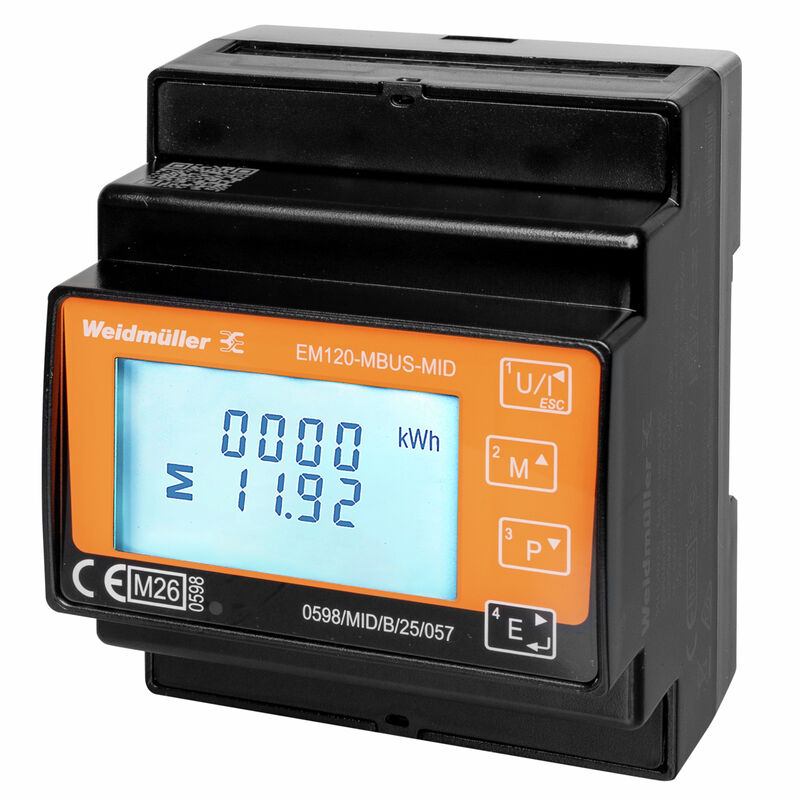

EM120-MBUS-MID

EM120-MBUS-MID

Produkt ID 3141010000
Download datablad Product Downloads
Anvendte produkter 18
General ordering data Dimensions and weights Temperatures Measuring current input Measuring voltage input Communication Inputs/outputs Measurement data recording Technical data Insulation coordination Connection data Classifications

General ordering data

Order No.
3141010000
Type
EM120-MBUS-MID

Dimensions and weights

Depth
65  mm
Depth (inches)
2,559  inch
Height
94,5  mm
Height (inches)
3,72  inch
Width
72  mm
Width (inches)
2,835  inch

Temperatures

Humidity at storage temperature
0...90 % (no condensation)
Humidity at operating temperature
0...90 % (no condensation)

Measuring current input

AC input cable connection
Directly at the device
Current-measuring channels
3
Housing main material
Plastic
Max. current
5000 A
Measuring accuracy for current
0,5  %
Residual current measuring
No

Measuring voltage input

Four-wire system
Yes
Low voltage network
1 phase 2 wire (L + N)
3 phase 3 wire (L1 + L2 + L3)
3 phase 4 wire (L1 + L2 + L3 + N)
Measurement range, voltage L-L, AC
400 V
Measurement range, voltage L-N, AC
3 x 230 V
Measuring accuracy for voltage
0,5  %
Three-wire system
Yes

Communication

Communication
Bi-directional
Stop bits
1
2
Protocol
M-Bus

Inputs/outputs

Digital output configurable
Yes
Input type
Secondary side of a current transformer 0-1 A or 0-5 A
3 phase AC (3P, 3P +N)
Number of digital outputs
2
Number of pulse outputs
2
Temperature input
No

Measurement data recording

Software
EM configuration tools

Technical data

Display
LCD
Display monitoring (monitor)
LCD
Display value
current measured value
Apparent power
Voltage
Input frequency
50/ 60 Hz
Max. current
5000 A
Measurement accuracy
Class 0.5
Power factor input
1 %
Type of mounting
DIN rail
Measurement range, voltage L-N, AC
3 x 230 V
Measurement range, voltage L-L, AC
400 V
Voltage supply
230 V AC
400 V AC
Supply voltage
230 V
Three-wire system
Yes
Four-wire system
Yes
Continuous measurements
Yes
Residual current measuring
No
Current-measuring channels
3
Measuring accuracy for voltage
0,5  %
Measuring accuracy for current
0,5  %
Measurement accuracy for active energy (kWh, .../5 A)
Class 0.5

Insulation coordination

Impulse withstand voltage
6 kV (1.2/50 µs)
Insulation voltage input or output/supply
4 kVeff / 1 min.
Tolerance class
0,5

Connection data

Wire connection cross section, finely stranded, min.
0,5  mm²
Wire connection cross section, finely stranded, max.
2,5  mm²
Wire connection cross section, finely stranded, two clampable wires, min.
0,5  mm²
Wire cross-section, finely stranded, two clampable wires, max.
1,5  mm²

Classifications

ETIM 6.0
EC002301
ETIM 7.0
EC002301
ETIM 8.0
EC002301
ETIM 9.0
EC002301
ETIM 10.0
EC002301
ECLASS 9.0
27-14-23-30
ECLASS 9.1
27-21-03-01
ECLASS 10.0
27-14-23-30
ECLASS 11.0
27-14-23-30
ECLASS 12.0
27-14-23-30
ECLASS 13.0
27-14-23-30
ECLASS 14.0
27-14-23-30
ECLASS 15.0
27-14-23-30
