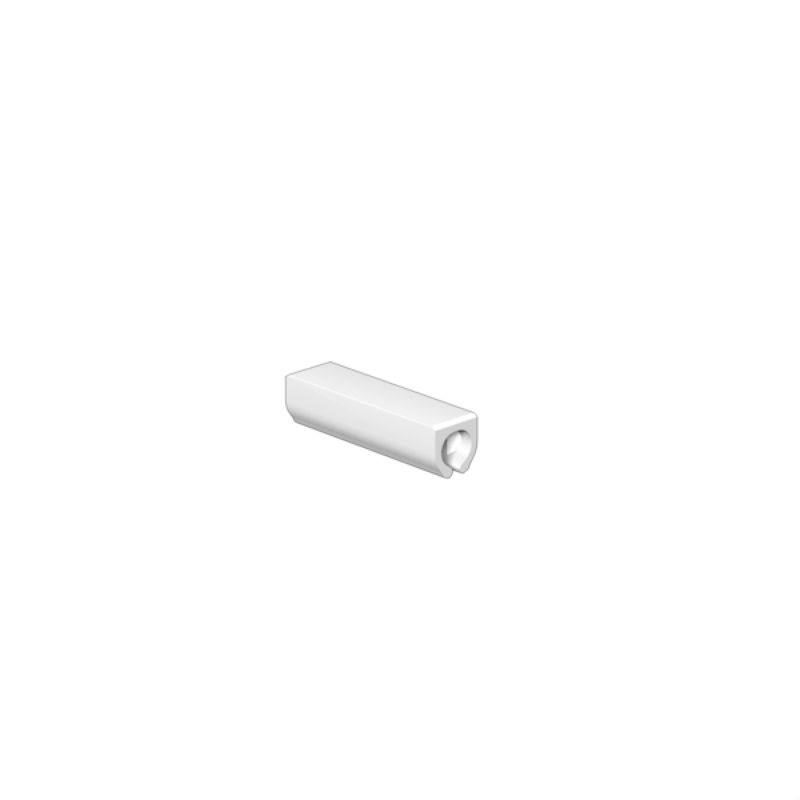

SlimFix, Conductor and cable markers, 1 - 1.3 mm, 12 x 3.2 mm, white

Produkt ID 1752200001
Download datablad Engineering-support Produktdownloads
Anvendte produkter 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Version
SlimFix, Conductor and cable markers, 1 - 1.3 mm, 12 x 3.2 mm, white
Order No.
1752200001
Type
VT SF 00/12 MC NE WS V0
GTIN (EAN)
4032248003624
Qty.
800 Styk

Dimensions and weights

Depth
3,2 mm
Depth (inches)
0,126 inch
Height
12 mm
Height (inches)
0,472 inch
Width
3,2 mm
Width (inches)
0,126 inch
Net weight
0,23 g

Temperatures

Operating temperature range
-50...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.002 kg CO2 eq.

General data

Anyag színe az ellenállás kódja szerint
9
Barwny
white
Classe d'infiammabilità UL 94
V-0
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogenki
No
Larghezza
3,2 mm
Materiał podstawowy
Polyamide 66
Number of markers per combination
1 MultiCard = Conductor and cable markers
Nyomtatás típusa
neutral
Operating temperature range, min.
-50 °C
Recommended industries
Transportation
Machinery
Teckenfältets storlek
12 x 3.2 mm
Zakres temperatury stosowania
-50...120 °C
Количество маркировочных элементов в упаковочной единице

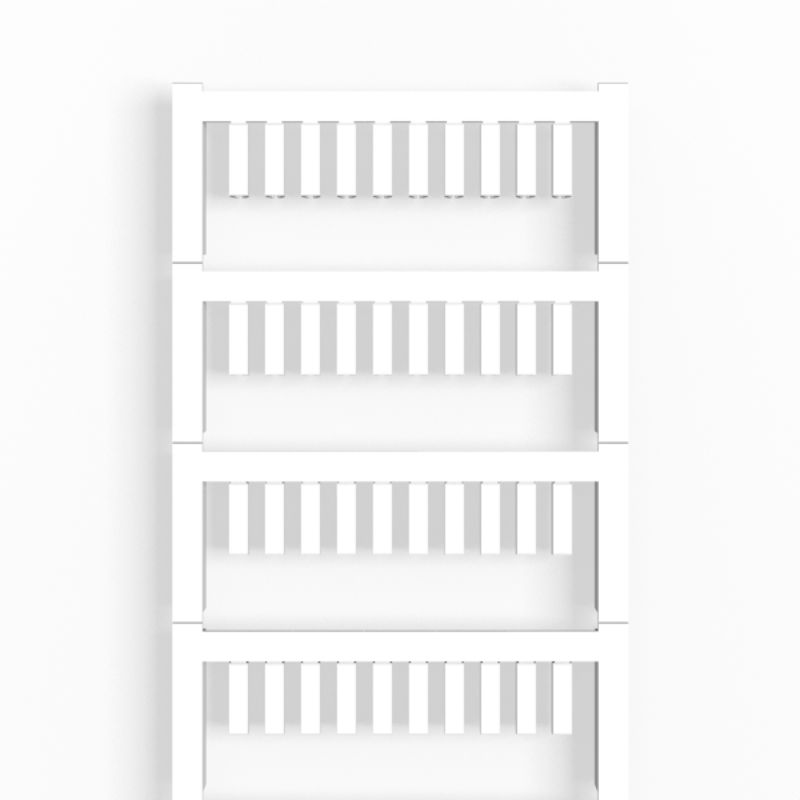

  • Form of supply:
    MultiCard
작동 온도 범위, 최대
120 °C

Conductor and cable markers

Conductor cross-section, max.
0,25 mm²
Conductor cross-section, min.
0,18 mm²
Conductor O.D., max.
1,3 mm
Conductor O.D., min.
1 mm
Cross-section for connected wire
0.18 - 0.25 mm²
Diamètre extérieur du conducteur
1 - 1.3 mm
Halogen
No

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
