BCZ 3.81 AH09 BK BX

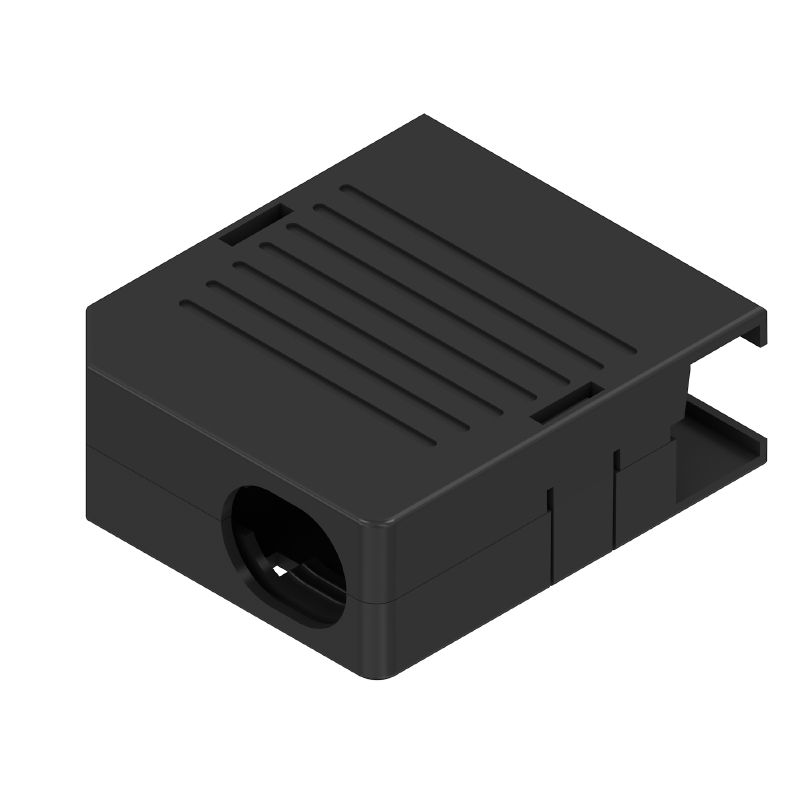

Product image
BCZ 3.81 AH09 BK BX
Product image
BCZ 3.81 AH09 BK BX
Example of use
BCZ 3.81 AH09 BK BX
Dimensional drawing

BCZ 3.81 AH09 BK BX

NYÁK dugaszoló csatlakozó, Tartozékok, Fedél, fekete, Pólusszám: 9

Product ID 1005340000
Gegevensblad downloaden Engineeringondersteuning Productdownloads
Is accessoire van 8 Verwante producten 37
Approvals Általános rendelési adatok Dimensions and weights Conformité environnementale du produit Especificaciones del sistema Datos del material Rated data acc. to IEC Embalaje Важное примечание Classifications

Approvals

ROHS
Conform

Általános rendelési adatok

Version
NYÁK dugaszoló csatlakozó, Tartozékok, Fedél, fekete, Pólusszám: 9
Order No.
1005340000
Type
BCZ 3.81 AH09 BK BX
GTIN (EAN)
4032248752560
Qty.
10 items
Product data

Packaging
Box

Dimensions and weights

Net weight
6,7 g

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC above 0.1 wt%

Especificaciones del sistema

Product family
OMNIMATE Signal - series BC/SC 3.81
Pitch in mm (P)
3,81 mm
Pitch in inches (P)
0,15 "
Number of poles
9
L1 in inches
0,15 "
Pin series quantity
1
Tightening torque
  • Torque type:
    Cover screw
  • Usage information:
    • Tightening torque:
      • min.:
        0,4 Nm
      • max.:
        0,5 Nm

Datos del material

Insulating material
PA 66 GF 30
Colour
черный
Colour chart (similar)
RAL 9011
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
100 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
100 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984

Embalaje

Packaging
Caja
VPE length
149 mm
VPE width
143 mm
VPE height
32 mm

Важное примечание

IPC conformity
Konformitet: Produkterna utvecklas, tillverkas och levereras i enlighet med internationellt erkända standarder och normer, och uppfyller de egenskaper som garanteras i databladet resp. har designegenskaper i enlighet med IPC-A-610 "Klass 2". Övriga anspråk gällande produkterna kan bedömas på begäran.
Notes
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 8.0
EC002943
ETIM 9.0
EC002943
ETIM 10.0
EC002943
ECLASS 14.0
27-46-04-05
ECLASS 15.0
27-46-04-05
