FUSEHOLDER WSFH 10X38 1KV LED
FUSEHOLDER WSFH 10X38 1KV LED
FUSEHOLDER WSFH 10X38 1KV LED

FUSEHOLDER WSFH 10X38 1KV LED

Photovoltaics, Fuse holder, 1000 V, 10x38, 1 String, with LED

Tuotteen tunnus 2827950000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 11 Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Fuse holder connection Fuse holder technical data Classifications

Approvals

ROHS
Conform

General ordering data

Version

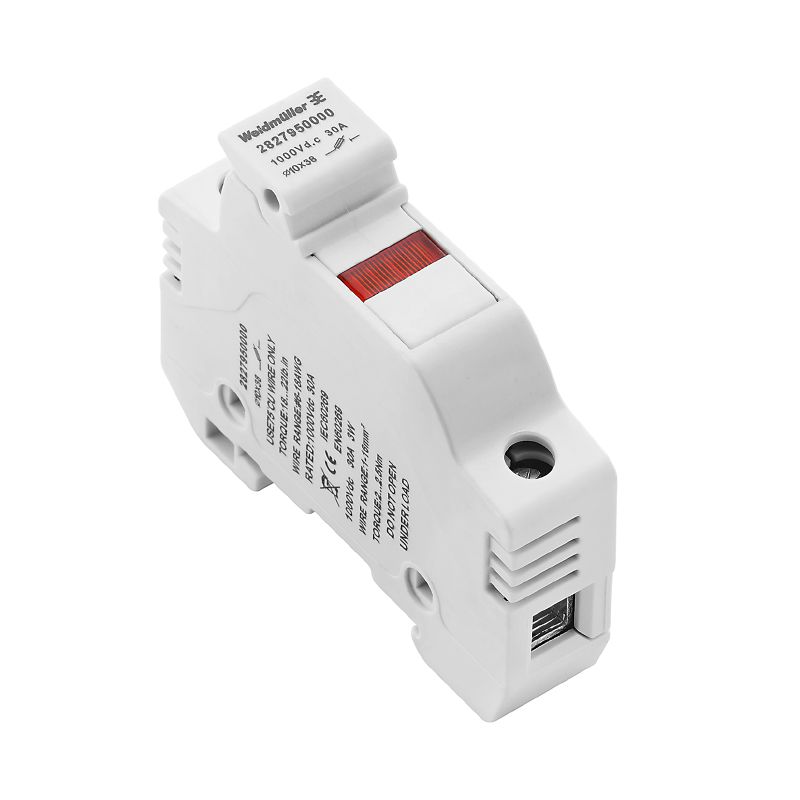

Photovoltaics, Fuse holder, 1000 V, 10x38, 1 String, with LED
Order No.
2827950000
Type
FUSEHOLDER WSFH 10X38 1KV LED
GTIN (EAN)
4064675367673
Qty.
10 items

Dimensions and weights

Depth
61 mm
Depth (inches)
2,402 inch
Height
73 mm
Height (inches)
2,874 inch
Width
18 mm
Width (inches)
0,709 inch
Net weight
10 g

Temperatures

Continuous operating temp., min.
−50 °C
Continuous operating temp., max.
90 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Fuse holder connection

Number of connections
2
Stripping length
10 mm
Tightening torque, max.
2,5 Nm
Tightening torque, min.
2 Nm
Screw connection
Wire material
Copper
Wire connection cross section AWG, min.
AWG 6
Wire connection cross section AWG, max.
AWG 17
Wire connection cross section, finely stranded, min.
1 mm²
Wire connection cross section, finely stranded, max.
10 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
10 mm²
Sección del conductor, flexible con terminales tubulares DIN 46228/4, mín.
1 mm²
와이어 결선 단면적, 와이어 종단 페룰 DIN 46228/4 채용 가는 꼬임, 최대
10 mm²
Сечение соединения проводов, твердое ядро, мин.
1 mm²
Wire connection cross-section, solid core, max.
10 mm²

Fuse holder technical data

Cartridge fuse
10 x 38 mm
Colour
Light Blue
Display
Red LED
Fuse holder (cartridge holder)
Pivoting
Max. current
30 A
Number of potentials
1
Operating voltage, max.
1000 V
Power dissapation, max.
3 W
Mounting rail
TS 35
Rated impulse withstand voltage
6 kV
Surge voltage category
III
Type of mounting
Nosná lišta

Classifications

ETIM 8.0
EC000899
ETIM 9.0
EC000899
ETIM 10.0
EC000899
ECLASS 14.0
27-25-01-13
ECLASS 15.0
27-25-01-13
