LM 5.00/08/180 3.5SN OR BX

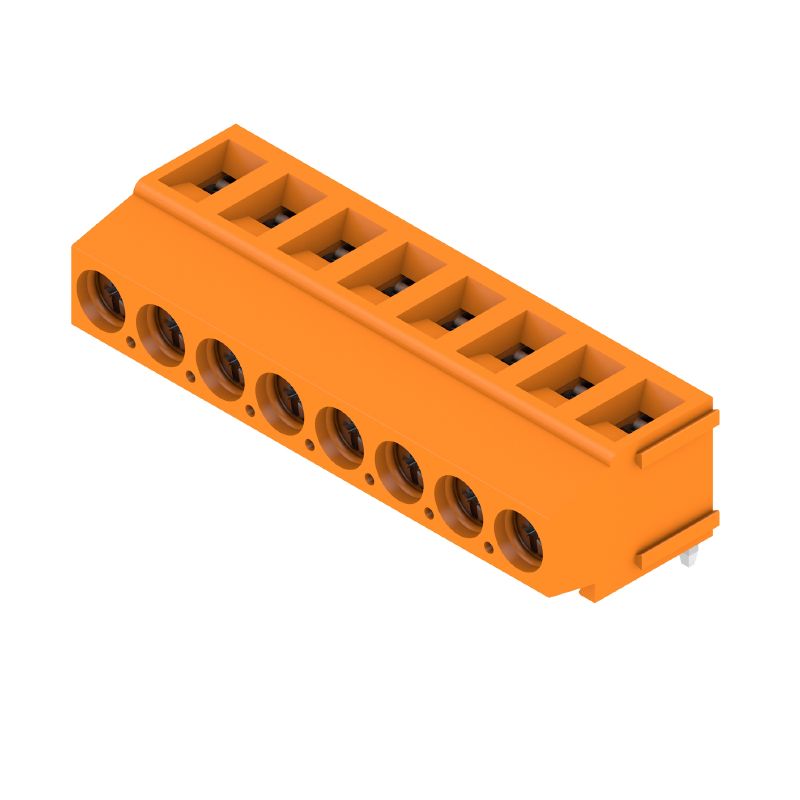

Product image
LM 5.00/08/180 3.5SN OR BX
Product image
LM 5.00/08/180 3.5SN OR BX
Dimensional drawing
LM 5.00/08/180 3.5SN OR BX
Graph
Derating curve valid for 5.00 & 5.08 pitch

LM 5.00/08/180 3.5SN OR BX

Printed circuit board terminals, 5.00 mm, Number of poles: 8, 180°, Solder pin length (l): 3.5 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 2.5 mm², Box

Produkt ID 1234280000
Download datablad Engineering Support Product Downloads
Tilbehør 3 Anvendte produkter 23
Approvals General ordering data Dimensions and weights Environmental Product Compliance System parameters Material data Conductors suitable for connection Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Type tests Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Printed circuit board terminals, 5.00 mm, Number of poles: 8, 180°, Solder pin length (l): 3.5 mm, tinned, orange, Clamping yoke connection, Clamping range, max. : 2.5 mm², Box
Order No.
1234280000
Type
LM 5.00/08/180 3.5SN OR BX
GTIN (EAN)
4050118018622
Qty.
50 Styk
Product data
IEC: 630 V / 17.5 A / 0.2 - 2.5 mm²
UL: 300 V / 15 A / AWG 24 - AWG 14
Packaging
Box

Dimensions and weights

Depth
13.8
Depth (inches)
0,543 inch
Height
13,5 mm
Height (inches)
0,531 inch
Height of lowest version
10 mm
Width
40,55 mm
Width (inches)
1,596 inch
Net weight
9,6 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System parameters

Product family
OMNIMATE Signal - series LM
Wire connection method
Clamping yoke connection
Mounting onto the PCB
THT solder connection
Conductor outlet direction
180°
Pitch in mm (P)
5 mm
Pitch in inches (P)
0,197 "
Number of poles
8
Pin series quantity
1
Fitted by customer
Yes
Number of rows
1
Max. adjacent poles per row
24
Solder pin length (l)
3,5 mm
Solder pin dimensions
0.95 x 0.8 mm
Solder eyelet hole diameter (D)
1,3 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
Number of solder pins per pole
1
Screwdriver blade
0.6 x 3.5
Screwdriver blade standard
DIN 5264
Tightening torque, min.
0,4 Nm
Tightening torque, max.
0,5 Nm
Clamping screw
M 2.5
Stripping length
6 mm
L1 in mm
35 mm
L1 in inches
1,378 "
Touch-safe protection acc. to DIN VDE 0470
IP 10
Touch-safe protection acc. to DIN VDE 57 106
Safe from back-of-hand touch
Protection degree
IP20
Volume resistance
1.20 mΩ
Insulation resistance
≥ 108 Ω

Material data

Insulating material
Wemid (PA)
Colour
orange
Colour chart (similar)
RAL 2000
Insulating material group
I
Comparative Tracking Index (CTI)
≥ 600
Insulation resistance
≥ 108 Ω
UL 94 flammability rating
V-0
Contact material
Cu-alloy
Contact surface
tinned
Coating
1-3 μm Ni
4-6 μm SN
Tinning type
matt
Layer structure of solder connection
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
120 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
120 °C

Conductors suitable for connection

Clamping range, min.
0,2 mm²
Clamping range, max.
2,5 mm²
Wire connection cross section AWG, min.
AWG 24
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
2,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
2,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,25 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,25 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Plug gauge in accordance with EN 60999 a x b; ø
2.4 mm x 1.5 mm; 1.9mm
Clampable conductor
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,5 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409500000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,75 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409600000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0282700000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      1 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      0409700000
    • Stripping length:
      • nominal:
        6 mm
    • Recommended wire-end ferrule:
      0372600000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,25 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025740000
    • Stripping length:
      • nominal:
        5 mm
    • Recommended wire-end ferrule:
      9018910000
  • Cross-section for conductor connection:
    • Type:
      fine-wired
    • nominal:
      0,34 mm²
  • wire end ferrule:
    • Stripping length:
      • nominal:
        8 mm
    • Recommended wire-end ferrule:
      9025750000
Reference text
Length of ferrules is to be chosen depending on the product and the rated voltage.
The outside diameter of the plastic collar should not be larger than the pitch (P)

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Rated current, min. number of poles (Tu=20°C)
17,5 A
Rated current, max. number of poles (Tu=20°C)
16 A
Rated current, min. number of poles (Tu=40°C)
17,5 A
Rated current, max. number of poles (Tu=40°C)
14,2 A
Rated voltage for surge voltage class / pollution degree II/2
630 V
Rated voltage for surge voltage class / pollution degree III/2
320 V
Rated voltage for surge voltage class / pollution degree III/3
250 V
Rated impulse voltage for surge voltage class/ pollution degree II/2
4 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
4 kV
Rated impulse voltage for surge voltage class/ contamination degree III/3
4 kV
Short-time withstand current resistance
3 x 1s with 120 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1815154
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group D / CSA)
300 V
Rated current (Use group B / CSA)
18 A
Rated current (Use group D / CSA)
10 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
300 V
Rated current (Use group B / UL 1059)
15 A
Rated current (Use group D / UL 1059)
10 A
Wire cross-section, AWG, min.
AWG 24
Wire cross-section, AWG, max.
AWG 14
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
279 mm
VPE width
153 mm
VPE height
59 mm

Type tests

Test: Durability of markings
  • Standard:
    DIN EN 60512-1-1 / 01.03
  • Test:
    mark of origin, type identification, pitch, type of material, approval marking UL, approval marking CSA, durability
  • Evaluation:
    available
Test: Clampable cross section
  • Standard:
    DIN EN 60999-1 section 7 and 9.1 / 12.00, DIN EN 60947-1 section 8.2.4.5.1 / 12.02
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 0.2 mm²
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Test for damage to and accidental loosening of conductors
  • Standard:
    DIN EN 60999-1 section 9.4 / 12.00
  • Requirement:
    0.2 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    0.3 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 0.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.4 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 1.5 mm²
  • Evaluation:
    passed
  • Requirement:
    0.7 kg
  • Conductor type:
    • Type of conductor and conductor cross-section:
      solid 2.5 mm²
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed
Pull-out test
  • Standard:
    DIN EN 60999-1 section 9.5 / 12.00
  • Requirement:
    ≥10 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      stranded 0.25 mm²
    • Type of conductor and conductor cross-section:
      AWG 24/1
    • Type of conductor and conductor cross-section:
      AWG 24/19
  • Evaluation:
    passed
  • Requirement:
    ≥20 N
  • Requirement:
    ≥40 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-K1.5
  • Evaluation:
    passed
  • Requirement:
    ≥50 N
  • Conductor type:
    • Type of conductor and conductor cross-section:
      H07V-U2.5
    • Type of conductor and conductor cross-section:
      AWG 14/1
    • Type of conductor and conductor cross-section:
      AWG 14/19
  • Evaluation:
    passed

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Rated current related to rated cross-section & min. No. of poles.
  • Wire end ferrule without plastic collar to DIN 46228/1
  • Wire end ferrule with plastic collar to DIN 46228/4
  • P on drawing = pitch
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Classifications

ETIM 6.0
EC002643
ETIM 7.0
EC002643
ETIM 8.0
EC002643
ETIM 9.0
EC002643
ETIM 10.0
EC002643
ECLASS 9.0
27-44-04-01
ECLASS 9.1
27-44-04-01
ECLASS 10.0
27-44-04-01
ECLASS 11.0
27-46-01-01
ECLASS 12.0
27-46-01-01
ECLASS 13.0
27-46-01-01
ECLASS 14.0
27-46-01-01
ECLASS 15.0
27-46-01-01
