UR20-16DI-P-PLC-INT
Product image
UR20-16DI-P-PLC-INT
Electric symbol
UR20-16DI-P-PLC-INT
Connection diagram
UR20-16DI-P-PLC-INT

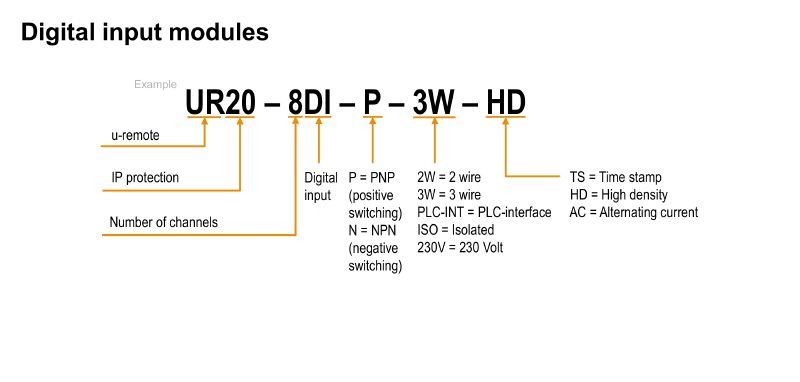

Explanation of abbreviations

UR20-16DI-P-PLC-INT

Remote I/O module, IP20, Digital signals, Input, PLC

Tuotteen tunnus 1315210000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 16 Varaosat 2 Yksittäiset osat 2 Samankaltaiset tuotteet 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance digital inputs Connection data General data Power supply System data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319212/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319215/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319245/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319247/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319249/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319255/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319220/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319224/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_322323/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E141197
Certificate no. (cULusEX)
E223527

General ordering data

Version
Remote I/O module, IP20, Digital signals, Input, PLC
Order No.
1315210000
Type
UR20-16DI-P-PLC-INT
GTIN (EAN)
4050118118179
Qty.
1  items

Dimensions and weights

Depth
76  mm
Depth (inches)
2,992  inch
Height
120  mm
Height (inches)
4,724  inch
Width
11,5  mm
Width (inches)
0,453  inch
Mounting dimension - height
128  mm
Net weight
85  g

Temperatures

Storage temperature
-40 °C ... +85 °C
Operating temperature
-20 °C...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a, 7cI
REACH SVHC
Lead 7439-92-1
SCIP
82327f13-cd27-455a-ab5b-a62e1996dcf8
Product Carbon Footprint
  • Cradle to gate:
    8,017 kg CO2 eq.

digital inputs

Individual channel diagnosis
No
Input filter
3 ms
Input voltage, high
> 11 V
Input voltage, low
<5 V
Module diagnosis
Yes
Number of digital inputs
16
Reverse polarity protection
Yes
Sensor connection
PLC-Interface
Sensor supply
external
Type
Types 1 and 3, EN 61131-2

Connection data

I/O plug-in connector
20-pin ribbon cable connection
Type of connection
PUSH IN
Wire connection cross section, finely stranded, max.
1,5  mm²
Wire connection cross section, finely stranded, min.
0,14  mm²
Wire cross-section, finely stranded, max. (AWG)
AWG 16
Wire cross-section, finely stranded, min. (AWG)
AWG 26
Wire cross-section, solid, max.
1,5  mm²
Wire cross-section, solid, max. (AWG)
AWG 16
Wire cross-section, solid, min.
0,14  mm²
Wire cross-section, solid, min. (AWG)
AWG 26

General data

Air humidity (operation)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (storage)
10% to 95%, non-condensing as per DIN EN 61131-2
Air humidity (transport)
10% to 95%, non-condensing as per DIN EN 61131-2
Air pressure (operation)
≥ 795 hPa (height ≤ 2000 m) as per DIN EN 61131-2
Air pressure (storage)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Air pressure (transport)
1013 hPa (height 0 m) to 700 hPa (height 3000 m) as per DIN EN 61131-2
Mounting rail
TS 35
Pollution severity
2
Shock
15 g over 11 ms, half sinus wave, acc. to IEC 60068-2-27
Surge voltage category
II
Test voltage
500  V
UL 94 flammability rating
V-0
Vibration resistance
5 Hz ≤ f ≤ 8.4 Hz: 3.5-mm amplitude as per IEC 60068-2-6
8.4 Hz ≤ f ≤ 150 Hz: 1 g acceleration as per IEC 60068-2-6

Power supply

Current consumption from IIN (the respective power segment)
<15 mA
Current consumption from Isys, typ.
8 mA
Reverse polarity protection
Yes
Supply voltage
24 V DC +20 %/ -15 %
via the system bus

System data

Diagnostic data
1  Bit
Field bus protocol
PROFINET IRT
PROFINET RT
CC-Link IE TSN
IEC 61162-450
PROFIBUS DP-V1
EtherCAT
Modbus/TCP
EtherNet/IP
CANopen
DeviceNet
POWERLINK
CC-Link
Galvanic isolation
500 V DC between the current paths
Interface
u-remote system bus
Module type
Special module
Process data
2  Byte
Transmission speed of system bus, max.
48  Mbit

Classifications

ETIM 6.0
EC001599
ETIM 7.0
EC001599
ETIM 8.0
EC001599
ETIM 9.0
EC001599
ETIM 10.0
EC001599
ECLASS 9.0
27-24-26-04
ECLASS 9.1
27-24-26-04
ECLASS 10.0
27-24-26-04
ECLASS 11.0
27-24-26-04
ECLASS 12.0
27-24-26-04
ECLASS 13.0
27-24-26-04
ECLASS 14.0
27-24-26-04
ECLASS 15.0
27-24-26-04
