TS 35X7.5/5X18 2M/ST/SZ
Product image
Similar to illustration
TS 35X7.5/5X18 2M/ST/SZ
Product image
Similar to illustration
TS 35X7.5/5X18 2M/ST/SZ

TS 35X7.5/5X18 2M/ST/SZ

Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm

Produkt ID 1879090000
Åbn i konfiguratoren
Download datablad Engineering Support Product Downloads
Tilbehør 20 Anvendte produkter 19
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Mounting rail Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Terminal rail, Accessories, Steel, galvanic zinc plated and passivated, Width: 2000 mm, Height: 35 mm, Depth: 7.5 mm
Order No.
1879090000
Type
TS 35X7.5/5X18 2M/ST/SZ
GTIN (EAN)
4032248473786
Qty.
40

Dimensions and weights

Depth
7,5 mm
Depth (inches)
0,295 inch
Height
35 mm
Height (inches)
1,378 inch
Width
2.000 mm
Width (inches)
78,74 inch
Net weight
300,926 g

Temperatures

Ambient temperature
-5 °C…40 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

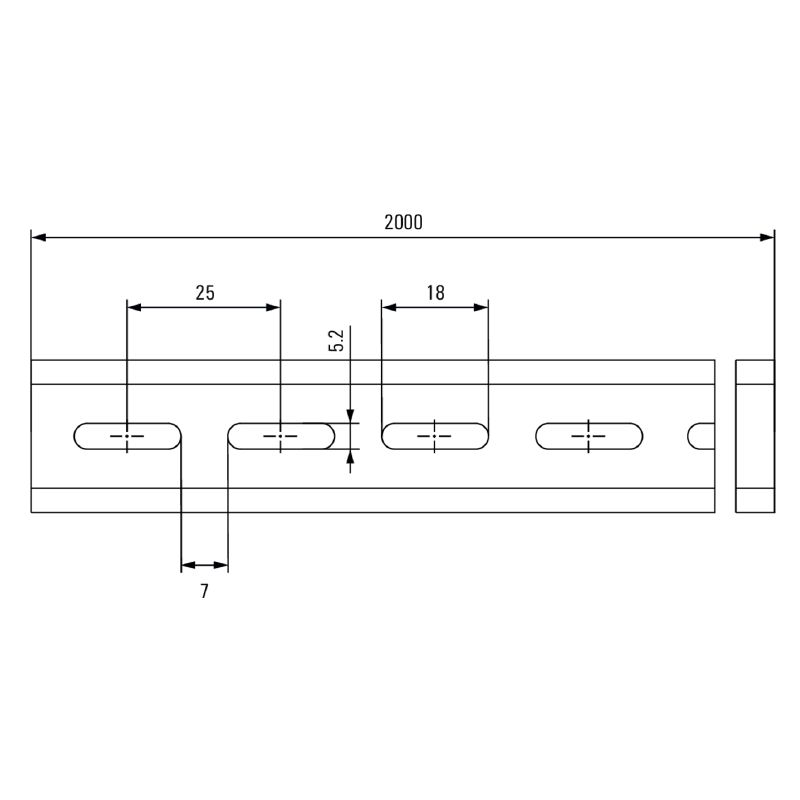

Mounting rail

Basic material
Steel
Distancia de ranura
7 mm
Drill-hole diameter
5,2 mm
Installation advice
Direct mounting
Length of the terminal rail
  • min.:
    0 mm
  • nominal:
    2.000 mm
  • max.:
    2.000 mm
Másodpercenkénti, rövid idejű határáram az IEC 60947-7-2 szerint
1,92 kA
Pre-punched mounting rail
Yes
Schlitzlänge
18 mm
Short circuit strength corresponds to E-Cu wire
16 mm²
Slit gap
  • min.:
    7 mm
  • nominal:
    7 mm
  • max.:
    7 mm
Slit length
  • min.:
    18 mm
  • nominal:
    18 mm
  • max.:
    18 mm
Slit width
5,2 mm
Slit width
  • min.:
    5 mm
  • nominal:
    5 mm
  • max.:
    5 mm
Slotted drill holes
Yes
Solder eyelet hole diameter (D)
5,2 mm
Spacing of holes, centre-to-centre
25 mm
Standards
DIN EN 60715
Surface finish
galvanic zinc plated and passivated
Thickness
1 mm

Important note

Product information
Din rails with Sendzimier treatment have limited corrosion resistance on the outer and cut edges

Classifications

ETIM 8.0
EC001285
ETIM 9.0
EC001285
ETIM 10.0
EC001285
ECLASS 14.0
27-40-06-02
ECLASS 15.0
27-40-06-02
