CC-DT 85/54 K MC SDR
CC-DT 85/54 K MC SDR

CC-DT 85/54 K MC SDR

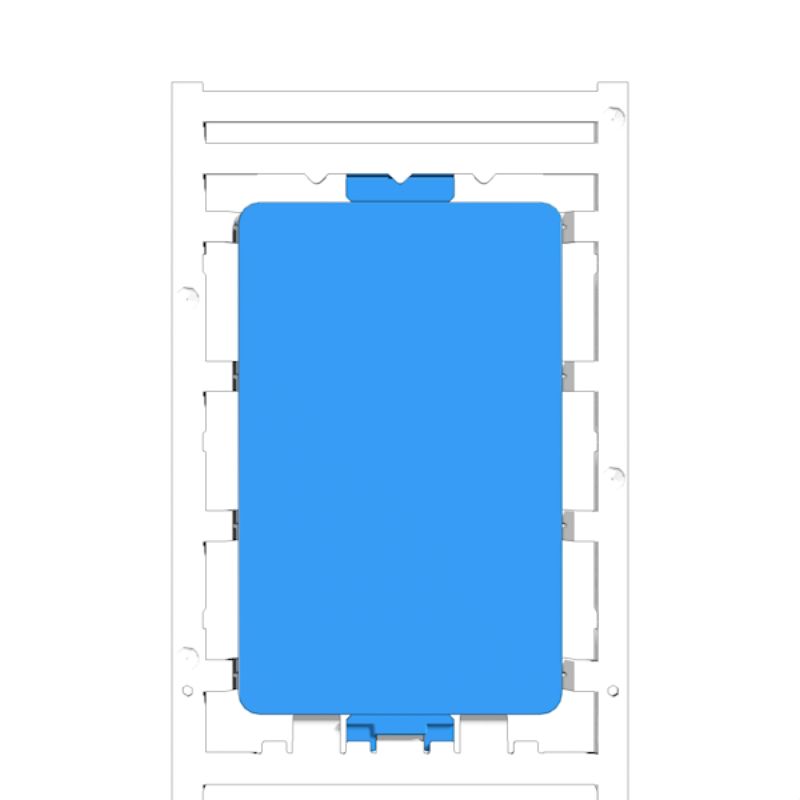

ClipCard, Device markers, 54 x 85 mm, blue

Product ID 3009070000
Gegevensblad downloaden Product Downloads
Toebehoren 1 Verwante producten 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Classifications

Approvals

ROHS
Conform

General ordering data

Wersja
ClipCard, Device markers, 54 x 85 mm, blue
주문 번호
3009070000
Тип
CC-DT 85/54 K MC SDR
GTIN (EAN)
4099986911659
Qty.
2 items

Dimensions and weights

Głębokość
1.2 mm
Depth (inches)
0.047 inch
Höjd
54 mm
Height (inches)
2.126 inch
Ширина
85 mm
Width (inches)
3.346 inch
Net weight
12.29 g

Temperatures

Operating temperature range
-40...60 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.066 kg CO2 eq.

General data

Adhesive
Double-sided adhesive tape
Basic material
Polyamide 66
Colour
blue
Detectible in accordance with Rondotest
4.7 mm Al
Operating temperature range
-40...60 °C
Operating temperature range, max.
60 °C
Operating temperature range, min.
-40 °C
Printed characters
Requires M-Print PRO File
Recommended industries
Food processing industry
UL 94 flammability rating
HB
Version
pluggable
Width
85 mm

Classifications

ETIM 8.0
EC001288
ETIM 9.0
EC001288
ETIM 10.0
EC001288
ECLASS 14.0
27-28-11-04
ECLASS 15.0
27-28-11-04
