Properties

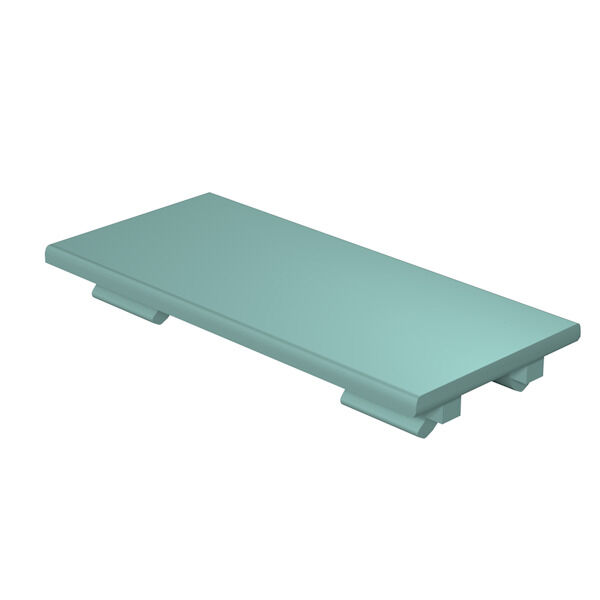

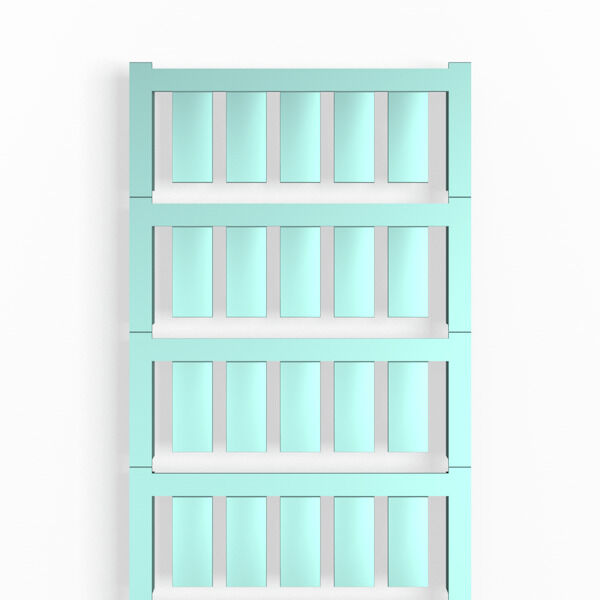

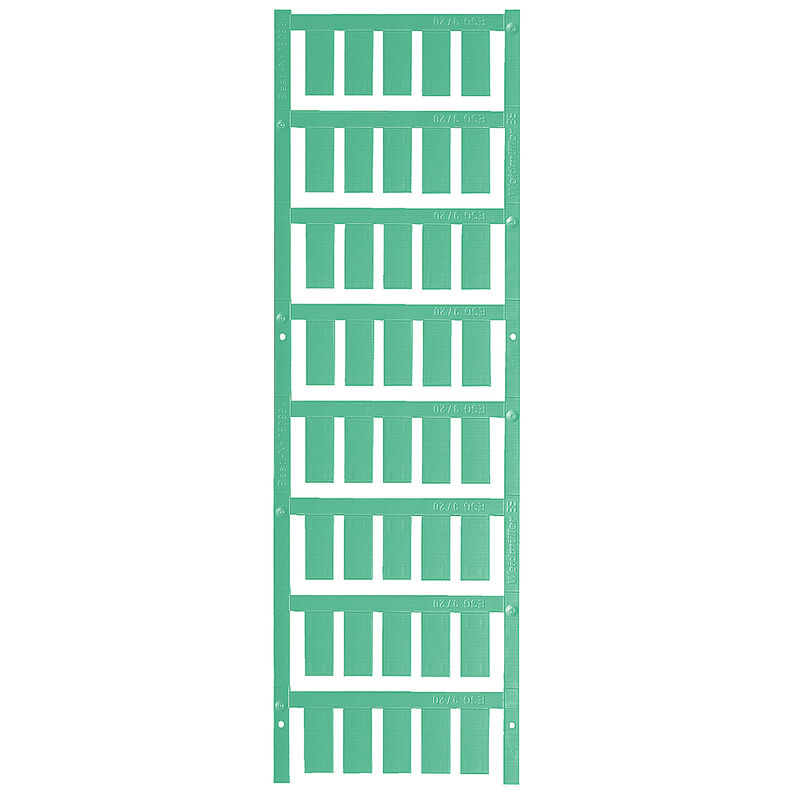

| Version | ESG, Device markers x 20 mm, PA 66, Colour: Turquoise, pluggable |
| Order No. | 1866690000 |
| Type | ESG 9/20 MC NE TK |
| GTIN (EAN) | 4032248436965 |
| Qty. | 200 items |
| Depth | 0.8 mm |
| Depth (inches) | 0.031 inch |
| Height | 9 mm |
| Height (inches) | 0.354 inch |
| Width | 20 mm |
| Width (inches) | 0.787 inch |
| Net weight | 0.53 g |
| Operating temperature range | -40...100 °C |
| REACH SVHC | / |
| Application/manufacturer |
Moeller
Siemens WI SAI distributor ifm-electronics |
| Colour | Turquoise |
| compatible printer | [PRINTJET CONNECT](~/p/2715590000) |
| Halogen | No |
| Material | PA 66 |
| Number of markers per combination | 1 MultiCard = Device markers |
| Number of markers per packaging unit |
|
| Operating temperature range | -40...100 °C |
| Operating temperature range, max. | 100 °C |
| Operating temperature range, min. | -40 °C |
| UL 94 flammability rating | V-2 |
| Version | pluggable |
| Width | 20 mm |
| Halogen | No |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_64461) |
| Eplan Data Portal | [Eplan data](https://dataportal.eplan.com/part-details/WEI.1866690000) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=1866690000) |
| WSCAD Universe | [WSCAD data](https://wscaduniverse.com/part-detail?manufacturerId=88&type=0&partNumber=1866690000&norm=0) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC001288 |
| ETIM 7.0 | EC001288 |
| ETIM 8.0 | EC001288 |
| ETIM 9.0 | EC001288 |
| ECLASS 9.0 | 27-40-06-29 |
| ECLASS 9.1 | 27-40-06-29 |
| ECLASS 10.0 | 27-40-06-29 |
| ECLASS 11.0 | 27-28-11-04 |
| ECLASS 12.0 | 27-28-11-04 |
| ECLASS 13.0 | 27-28-11-04 |
| ROHS | Conform |
