Properties
| Version | Primary current: 400 A, Secondary current max.: 1 A, Load: 5 VA, Tolerance class: 1, Split-core current transformer |
| Order No. | 1481990000 |

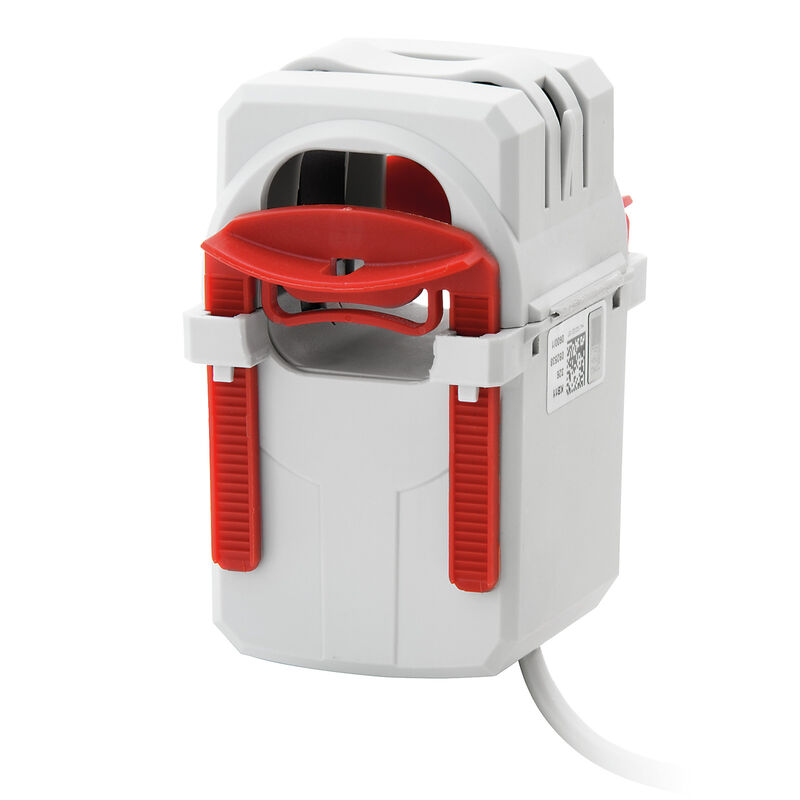

| Type | KCMA-32-400-1A-5VA-1 |
| GTIN (EAN) | 4050118291063 |
| Qty. | 1 items |
| Depth | 90 mm |
| Depth (inches) | 3.543 inch |
| Height | 96.4 mm |
| Height (inches) | 3.795 inch |
| Width | 59.2 mm |
| Width (inches) | 2.331 inch |
| Net weight | 440 g |
| Storage temperature | -25 °C...70 °C |
| Operating temperature | -5 °C...50 °C |
| RoHS Compliance Status | Compliant without exemption |
| REACH SVHC | No SVHC above 0.1 wt% |
| Type of conductor | Insulated conductor only |
| Round conductor | 32.5 mm |
| Installation location | Indoor use |
| Load | 5 VA |
| Primary current | 400 A |
| Secondary current | 0...1 A |
| Tolerance class | 1 |
| Manufacturer | MBS AG |
| Cable length | 2.5 m |
| Insulation class | E |
| Nominal frequency | 50 Hz |
| Protection degree | IP20 |
| Thermal rated continuous current Ithermal | 1.2 x Irated |
| Standard |
IEC 61869-1: 2007
IEC 61869-2: 2012 |
| Tolerance class | 1 |
| Engineering Data | [CAD data -- 3D drawing](https://mdcop.weidmueller.com/mediadelivery/asset/900_38118) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC002048 |
| ETIM 7.0 | EC002048 |
| ETIM 8.0 | EC002048 |
| ETIM 9.0 | EC002048 |
| ECLASS 9.0 | 27-21-09-02 |
| ECLASS 9.1 | 27-21-09-02 |
| ECLASS 10.0 | 27-21-09-02 |
| ECLASS 11.0 | 27-21-09-02 |
| ECLASS 12.0 | 27-21-09-02 |
| ECLASS 13.0 | 27-21-09-02 |
| ECLASS 14.0 | 27-21-09-02 |
| ROHS | Conform |
