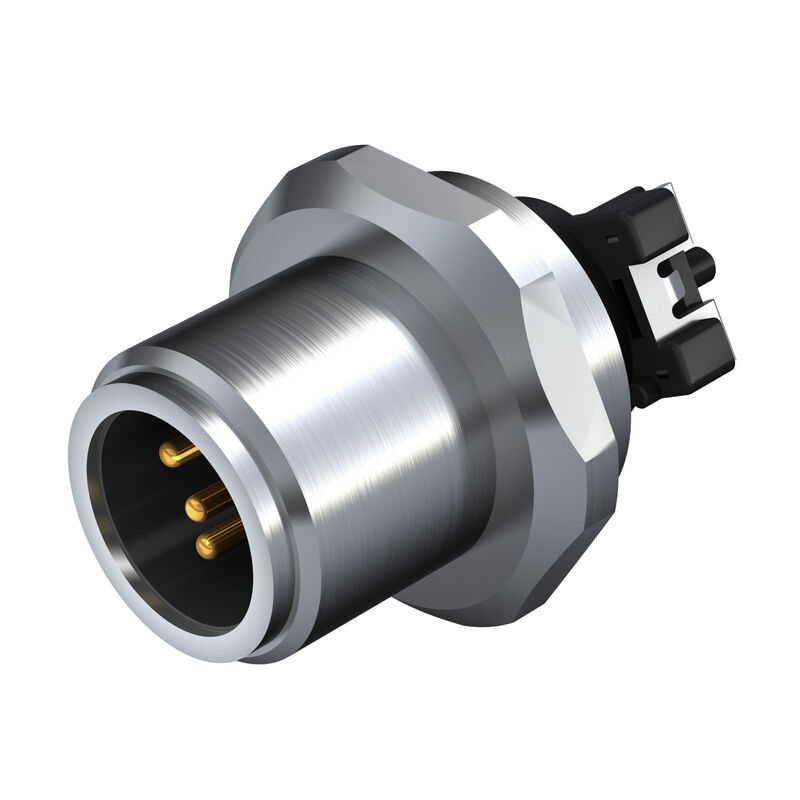

SAIE-M12S-5-9/14SMT
SAIE-M12S-5-9/14SMT
Dimensioned drawing
SAIE-M12S-5-9/14SMT
Pole scheme
M12, pin, A-coded
SAIE-M12S-5-9/14SMT
PCB design

SAIE-M12S-5-9/14SMT

Built-in plugs, M12, Mounting thread: M 14, Number of poles: 5, Strand / cable length:

Produkt ID 2423230000
Download datablad Engineering-support Produktdownloads
Anvendte produkter 26
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical data of PCB plug-in connector General Info Material data System parameters Classifications

Approvals

ROHS
Conform

General ordering data

Versione
Built-in plugs, M12, Mounting thread: M 14, Number of poles: 5, Strand / cable length:
Order No.
2423230000
Type
SAIE-M12S-5-9/14SMT
GTIN (EAN)
4050118431452
Förp.
25 Styk

Dimensions and weights

Net weight
10,88 g

Environmental Product Compliance

Stato conformità RoHS
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
0ea6d931-f9e9-40a6-89d9-8d67103189d3

Technical data of PCB plug-in connector

Coding
A-coded
Filettatura di montaggio
M14
Housing surface
nickel-plated
Housings
M12 pin
Installation height
9 mm
Number of poles
5
Připojení stínění
No
Nennspannung
60 V
Tensión nominal
250 V (4-pole) / 60 V (5-pole) / 30 V (8-pole)
정격 전류
4 A
Rated current
4 A (4- and 5-pole) / 2 A (8-pole)
Диапазон температур
-30…80 °C
Tipo de protección
IP67
Contact surface
Au (Gold)
Housing main material
CuZn
nickel-plated
Anslutningsgänga
M12
Par de apriete
M12: 0.8 Nm
Mounting thread
M 14
Mounting torque
  • max.:
    1,2 Nm
Mounting torque range
1.2 Nm
Mounting onto the PCB
SMD solder connection
Insulation resistance
100 MΩ
Pollution severity
3 (2 within the sealed area)
Plugging cycles
≥ 100
Contact material
Cu-alloy
Lock nut material
Nickel-plated CuZn
Material of the flange-mounted housing
Nickel-plated CuZn

General Info

Number of poles
5
Material capotas
CuZn
nickel-plated
Connection thread
M12
Contact material
Cu-alloy
Contact surface
Au (Gold)
Protection degree
IP67
Plugging cycles
≥ 100

Material data

Contact material
Cu-alloy
Superficie de contacto
Au (Gold)

System parameters

Mounting onto the PCB
SMD solder connection
Insulation resistance
100 MΩ
Number of poles
5
Pin series quantity
1
Plugging cycles
≥ 100
Protection degree
IP67

Classifications

ETIM 8.0
EC003568
ETIM 9.0
EC003568
ETIM 10.0
EC003568
ECLASS 14.0
27-44-01-10
ECLASS 15.0
27-44-01-10
