Properties
| Version | Cross-connector (terminal), when screwed in, Number of poles: 2, Pitch in mm (P): 9.00, Insulated: No, 41 A, black, grey |
| Order No. | 2615030000 |

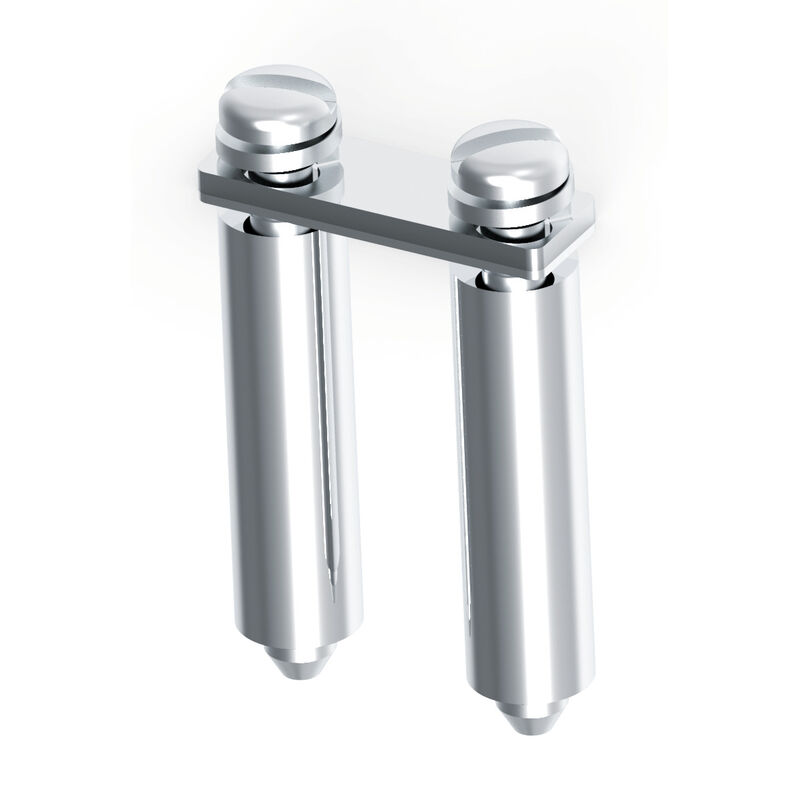

| Type | SQV 3/2 |
| GTIN (EAN) | 4050118653946 |
| Qty. | 100 items |
| Depth | 22.7 mm |
| Depth (inches) | 0.894 inch |
| Height | 4.3 mm |
| Height (inches) | 0.169 inch |
| Width | 13 mm |
| Width (inches) | 0.512 inch |
| Net weight | 0.46 g |
| Storage temperature | -25 °C...55 °C |
| REACH SVHC | / |
| Material | PA |
| Colour |
black
grey |
| Version | Cross-connector |
| Explosion-tested version | No |
| Type of fixing | when screwed in |
| Type of mounting | when screwed in |
| Rated current, multi-pole | 41 A |
| Type | Cross-connector |
| Pitch in mm (P) | 9 mm |
| Number of poles | 2 |
| Rated current | 41 A |
| Engineering Data | [CAD data -- STEP](https://mdcop.weidmueller.com/mediadelivery/asset/900_205556) |
| CADENAS eCATALOG | [CAX data](https://weidmueller-embedded.partcommunity.com?catalog=weidmueller_qs&part=2615030000) |
| Catalogues | [Catalogues in PDF-format](LINK/Catalog.html) |
| ETIM 6.0 | EC000489 |
| ETIM 7.0 | EC000489 |
| ETIM 8.0 | EC000489 |
| ETIM 9.0 | EC000489 |
| ECLASS 9.0 | 27-14-11-40 |
| ECLASS 9.1 | 27-14-11-40 |
| ECLASS 10.0 | 27-14-11-40 |
| ECLASS 11.0 | 27-14-11-40 |
| ECLASS 12.0 | 27-14-11-40 |
| ECLASS 13.0 | 27-25-03-03 |
| ROHS | Conform |
