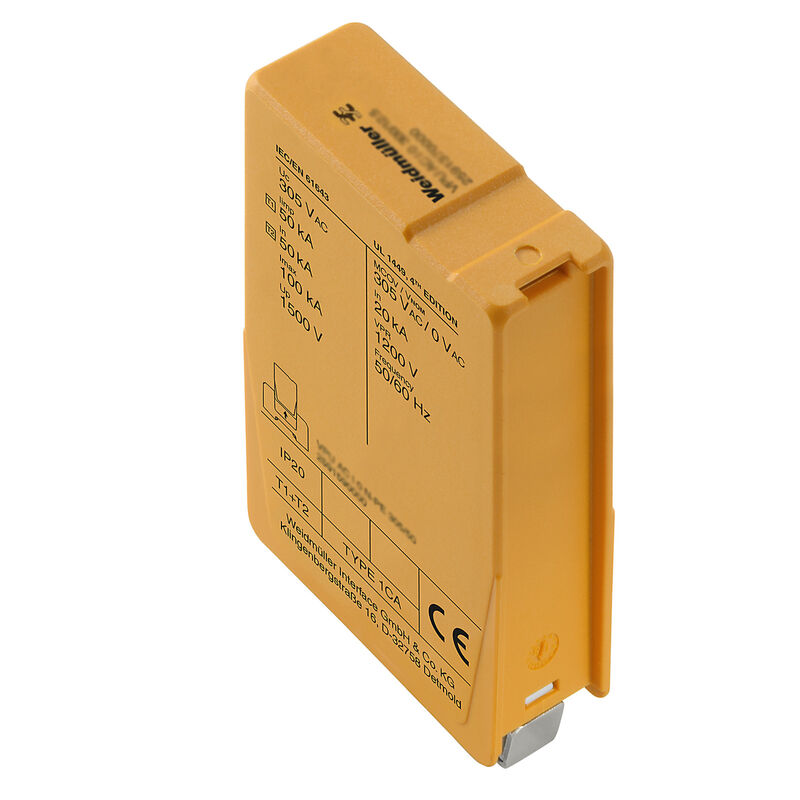

VPU AC I 0 MOV 950/12.5
VPU AC I 0 MOV 950/12.5
Electric symbol

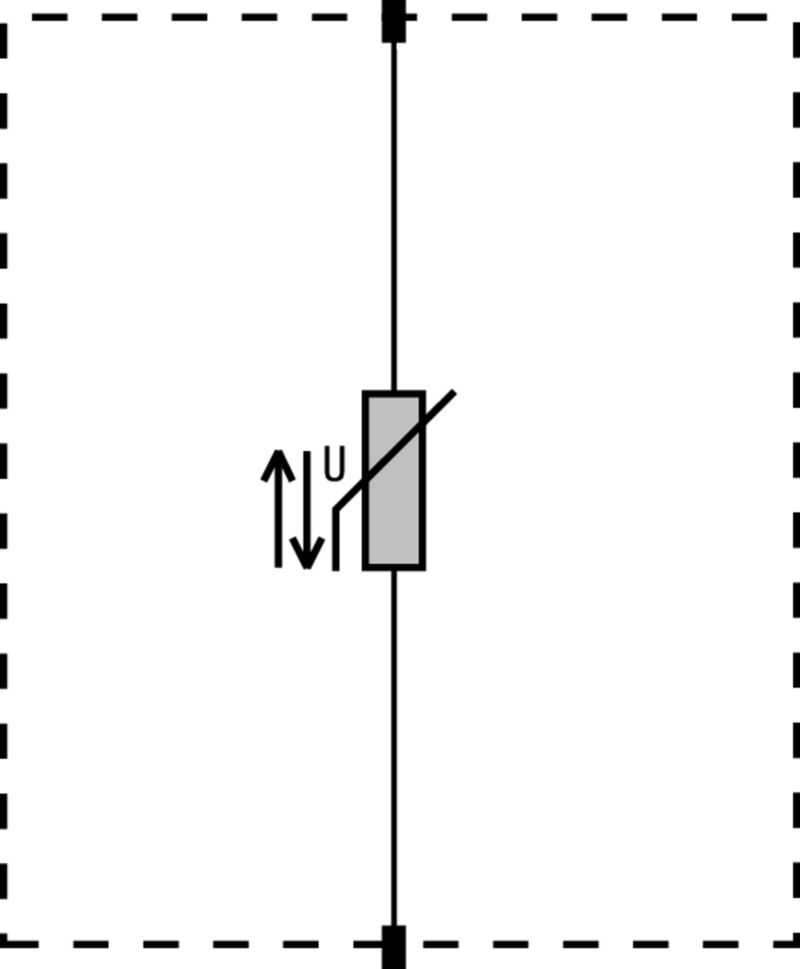

Schematic circuit diagram

VPU AC I 0 MOV 950/12.5

Spare arrester, Surge protection, IT without N

Item No. 2855250000
Download data sheet Product Downloads
Accessories 3 Related products 13
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Guarantee Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Spare arrester, Surge protection, IT without N
Order No.
2855250000
Type
VPU AC I 0 MOV 950/12.5
GTIN (EAN)
4064675533061
Qty.
1 items

Dimensions and weights

Depth
91 mm
Depth (inches)
3,583 inch
Width
18 mm
Width (inches)
0,709 inch
Net weight
128 g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Forme
Insta IP 20
Optical function display
No
Segmento
Power distribution
Szín
orange
UL 94 éghetőségi osztály
V-0
Version
Surge protection
Védelmi osztály
IP20 in installed state
Üzemi magasság
≤ 2000 m

Insulation coordination acc. to EN 50178

Stopień zanieczyszczenia
2

Rated data IEC / EN

Discharge current Imax (8/20µs) wire-PE
50 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type I
Type II
Type III
Frequency range, max.
60 Hz
Frequency range, min.
50 Hz
Integrated back-up fuse
No
Lightning test current Iimp (10/350 µs) (L-PE)
12,5 kA
Low voltage network
IT without N
Max. continuous voltage, Uc (AC)
550 V
Number of poles
1
Protection level Up at IN (L/N-PE)
≤ 4 kV
Rated voltage (AC)
550 V
Short-circuit current rating ISCCR
25 kA
Voltage type
AC
Ток утечки в Un
0,3 mA

Connection data

Anschlussart
Plug-in connection
Wire cross-section, solid, max.
35 mm²
Wire connection cross section, finely stranded, max.
25 mm²

Electrical data

Spannungsart
AC

General data

Polzahl
1
Protection degree
IP20 in installed state
Colour
orange

Guarantee

Zeitraum
5 years

Classifications

ETIM 8.0
EC001457
ETIM 9.0
EC001457
ETIM 10.0
EC001457
ECLASS 14.0
27-17-12-04
ECLASS 15.0
27-17-12-04
