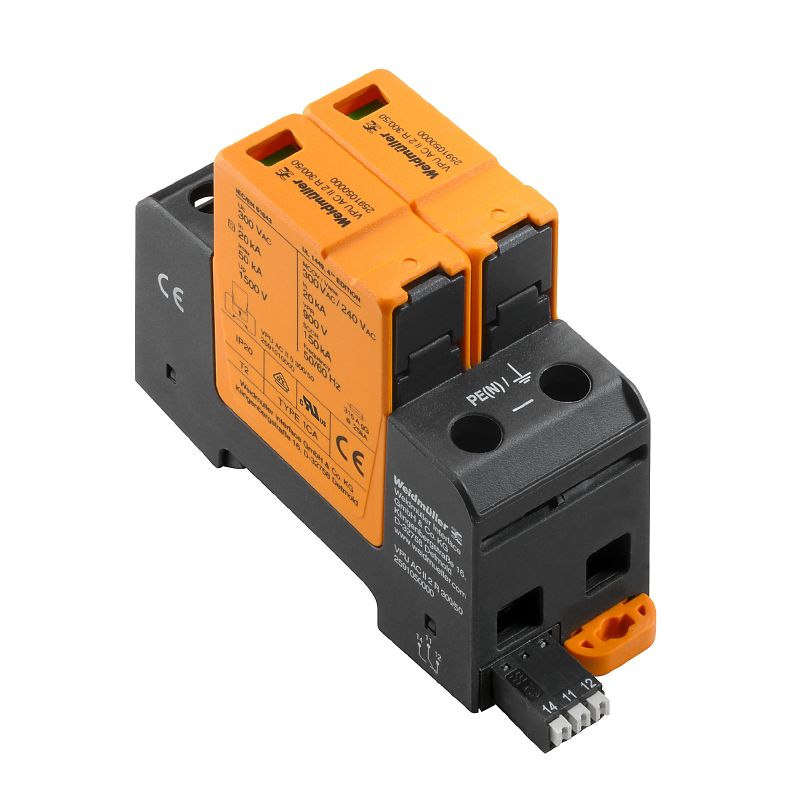

VPU AC II 2 R 300/50
Product image
Image similar
VPU AC II 2 R 300/50
Electric symbol
Schematic circuit diagram

VPU AC II 2 R 300/50

Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase, TN

Tuotteen tunnus 2591050000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 4 Varaosat 3 Samankaltaiset tuotteet 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Connection data, remote alert General data Insulation coordination acc. to EN 50178 Rated data IEC / EN Connection data Electrical data General data Guarantee Important note Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E3542610000

General ordering data

Version
Surge voltage arrester, Low voltage, Surge protection, with remote contact, Single-phase, TN
Order No.
2591050000
Type
VPU AC II 2 R 300/50
GTIN (EAN)
4050118599886
Qty.
1  items

Dimensions and weights

Depth
68  mm
Depth (inches)
2,677  inch
Depth including DIN rail
76  mm
Height
104,5  mm
Height (inches)
4,114  inch
Width
36  mm
Width (inches)
1,417  inch
Net weight
279  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C
Humidity
5 - 95% rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Ambient temperature (operational), max.
85  °C
Rated Voltage UN
240  V
VPR (N-PE)
900  V
MCOV (L-PE)
300  V
MCOV (L/N-PE)
300  V
MCOV (N-PE)
300  V
SCCR
150  kA
In
20  kA
Category
SPD TYPE 1CA
Ambient temperature (operational), min.
−40  °C
Certificate No. (cURus)
E3542610000
MODE
all modes
VPR (L-N)
1 800  V
VPR (L-PE)
900  V
Voltage type
AC
UL Energy Networks
Split-Phase

Connection data, remote alert

Connection type
PUSH IN
Cross-section for connected wire, solid core, max.
1,5  mm²
Cross-section for connected wire, solid core, min.
0,25  mm²
Stripping length
8  mm

General data

Colour
orange
black
Design
Installation housing; 2TE
Insta IP 20
Mounting rail
TS 35
Operating altitude
≤ 4000 m
Optical function display
green = OK; red = arrester is defective - replace
Protection degree
IP20 in installed state
Segment
Power distribution
UL 94 flammability rating
V-0
Version
Surge protection
with remote contact

Insulation coordination acc. to EN 50178

Pollution severity
2
Surge voltage category
III

Rated data IEC / EN

Combined pulse UOC
6  kV
Discharge current (type III)
3  kA
Discharge current Imax (8/20µs) wire-PE
50 kA
Discharge current In (8/20µs) wire-PE
20 kA
Energy coordination (≤10 m)
Type II
Type III
Follow-on current extinguishing capability Ifi
Follow current need not be taken into account
Frequency range, max.
60  Hz
Frequency range, min.
50  Hz
Fuse protection
No Fuse neccessary ≤315 A gG
250 A gG @50 kA Isccr
315 A gG @25 kA Isccr
Integrated back-up fuse
No
Leakage current at Un
0,4  mA
Low voltage network
Single-phase
TN
Mains voltage
230 V / 400 V
Max. continuous voltage, Uc (AC)
300 V
Number of poles
2
Protection level Up at IN (L/N-PE)
≤ 1.5 kV
Rated voltage (AC)
230  V
Requirements category acc. to IEC 61643-11
Type II
Type III
Requirements class, acc. to EN 61643-11
T2
T3
Response time / fallback time
≤ 25 ns
Short-circuit current rating ISCCR
50  kA
Signalling contact
250 V 1A 1CO
SPD type
T2
T3
Standards
IEC 61643-11
EN 61643-11
UL 1449
Temporary surge voltage (over-voltage) - TOV
337  V
Voltage type
AC

Connection data

Stripping length
15  mm
Wire connection method
Screw connection
Type of connection
Screw connection
Stripping length, rated connection
15  mm
Tightening torque, min.
3  Nm
Tightening torque, max.
4,5  Nm
Clamping range, rated connection
16  mm²
Clamping range, min.
1,5  mm²
Clamping range, max.
35  mm²
Wire connection cross section AWG, min.
AWG 16
Wire connection cross section AWG, max.
AWG 2
Wire cross-section, solid, min.
1,5  mm²
Wire cross-section, solid, max.
35  mm²
Wire connection cross section, finely stranded, min.
1,5  mm²
Wire connection cross section, finely stranded, max.
25  mm²
Connection cross-section, stranded, min.
1,5  mm²
Connection cross-section, stranded, max.
35  mm²

Electrical data

Voltage type
AC

General data

Number of poles
2
Protection degree
IP20 in installed state
Colour
orange
black

Guarantee

Time interval
5 years

Important note

Product information
For use in DC applications, please use the fuse of SIBA Type NH2XL aR/aSF DC 1500 V

Product images

Classifications

ETIM 7.0
EC000941
ETIM 8.0
EC000941
ETIM 9.0
EC000941
ETIM 10.0
EC000941
ECLASS 12.0
27-17-12-02
ECLASS 13.0
27-17-12-02
ECLASS 14.0
27-17-12-02
ECLASS 15.0
27-17-12-02
