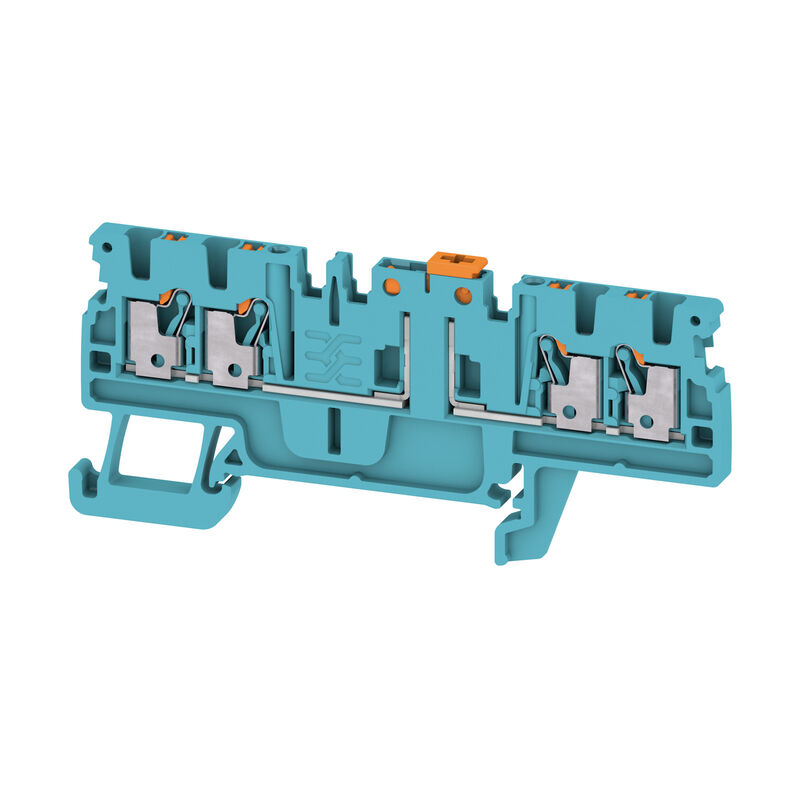

Disconnect and modular disconnect terminal, PUSH IN, 1.5 mm², 400 V, 10 A, blue

Produkt ID 2941230000
Download datablad Engineering Support Product Downloads
Tilbehør 13 Anvendte produkter 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) Disconnect terminals General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Disconnect and modular disconnect terminal, PUSH IN, 1.5 mm², 400 V, 10 A, blue
Order No.
2941230000
Type
ADT 1.5 4C BL
GTIN (EAN)
4099986709249
Qty.
100  Styk

Dimensions and weights

Depth
33,5  mm
Depth (inches)
1,319  inch
Height
77  mm
Height (inches)
3,031  inch
Width
3,5  mm
Width (inches)
0,138  inch
Net weight
6,636  g

Temperatures

Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
130  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
blue
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
4
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Snap-on
Yes
Type of fixing
TS 35
Type of mounting
TS 35

Conductors for clamping (rated connection)

Blade size
0.4 x 2.0 mm
Clamping range, max.
1,5  mm²
Clamping range, min.
0,14  mm²
Connection cross-section, finely stranded, min.
0,14  mm²
Connection cross-section, stranded, max.
1,5  mm²
Connection cross-section, stranded, min.
0,14  mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
4
Stripping length
8  mm
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5  mm²
Wire connection cross section, finely stranded, min.
0,14  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14  mm²
Wire connection cross-section, solid core, max.
1,5  mm²
Wire connection cross-section, solid core, min.
0,14  mm²

Disconnect terminals

Cross-disconnect
without
Integral test socket
Yes
Slitting
Pivoting

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
1,5  mm²
Rated voltage
400  V
Rated DC voltage
400  V
Nominal current
10  A
Current at maximum wires
10  A
Standards
IEC 60947-7-1
Rated impulse withstand voltage
6 kV
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Current size B (cURus)
10 A
Current size C (cURus)
10 A
Current size D (cURus)
10 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
300 V
Wire cross section max. (cURus)
14 AWG
Wire cross section min. (cURus)
26 AWG

Classifications

ETIM 6.0
EC000902
ETIM 7.0
EC000902
ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 9.0
27-14-11-26
ECLASS 9.1
27-14-11-26
ECLASS 10.0
27-14-11-26
ECLASS 11.0
27-14-11-26
ECLASS 12.0
27-14-11-26
ECLASS 13.0
27-25-01-09
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
