APGTB 2.5 PE 3C/1

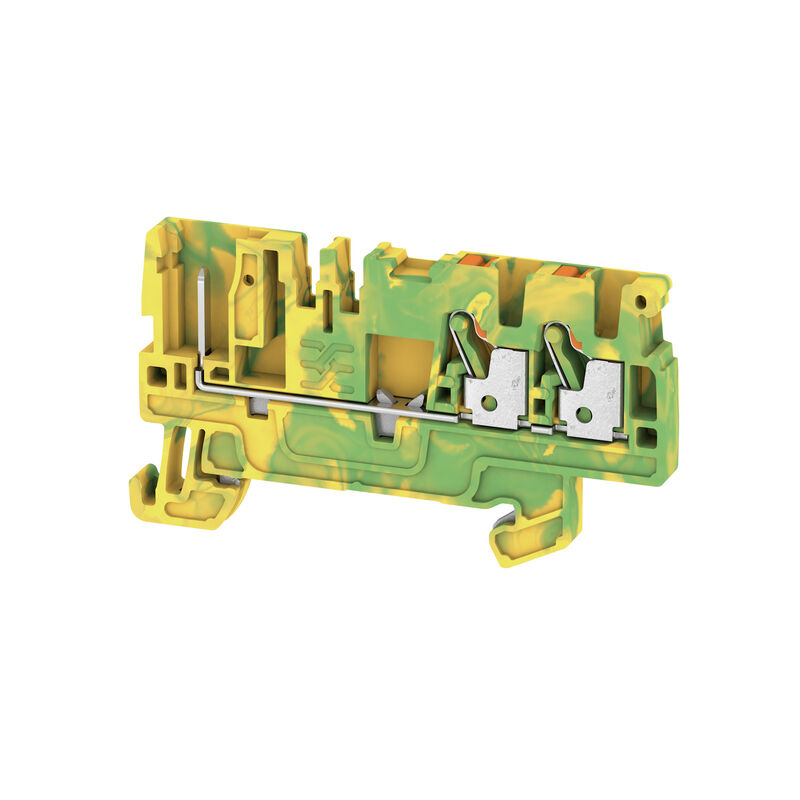

Product image
APGTB 2.5 PE 3C/1

APGTB 2.5 PE 3C/1

Borne enchufable, PUSH IN, 2.5 mm², 800 V, 0 A, Verde/amarillo

Ürün No. 1513890000
Konfigüratörde aç
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 85 İlgili ürünler 162
Approvals Datos generales para pedido Dimensions and weights Temperaturen Umweltanforderungen Material data Rating data IECEx/ATEX 시스템 사양 Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

Datos generales para pedido

Version
Borne enchufable, PUSH IN, 2.5 mm², 800 V, 0 A, Verde/amarillo
Order No.
1513890000
Type
APGTB 2.5 PE 3C/1
GTIN (EAN)
4050118321609
Qty.
50 adet

Dimensions and weights

Depth
36,5 mm
Depth (inches)
1,437 inch
Mélység DIN sínnel együtt
37 mm
Height
66,5 mm
Bygghöjd (tum)
2,618 inch
Width
5,1 mm
Width (inches)
0,201 inch
Net weight
10,268 g

Temperaturen

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
Green/yellow
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7940U
Certificate No. (IECEX)
IECEXTUR16.0046U
Wire cross section max. (ATEX)
1.5 mm²
Ledararea max. (IECEX)
1.5 mm²
Caracterización EN 60079-7
Ex ec II C Gc
Ex 2014/34/EU label
II 3 G D

시스템 사양

End cover plate required
예
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
Yes
Mounting rail
TS 35
N-function
No
PE function
Yes
PEN function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No

Conductors for clamping (additional connection)

Connection type, additional connection
pluggable

Conductors for clamping (rated connection)

4 mm²
Calibre según 60 947-1
A3
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,14 mm²
Dirección de conexión
top
Ledararea, fintrådig med ändhylsa DIN 46228/1, max.
4 mm²
Rodzaj przyłącza
PUSH IN
Sección de conexión del conductor AWG, máx.
AWG 12
Stripping length
10 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      0,75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      8 mm
    • max.:
      6 mm
  • Cross-section for conductor connection:
    • min.:
      0,34 mm²
    • max.:
      0,14 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      6 mm
  • Cross-section for conductor connection:
    • min.:
      1 mm²
    • max.:
      0,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      2,5 mm²
    • max.:
      1,5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      4 mm²
Twin wire-end ferrules, max.
0,75 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection 2
Plug-in connection
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²
Диапазон зажима, мин.
0,14 mm²
Количество соединений
3
Поперечное сечение подключаемого провода AWG, мин.
AWG 28
Размер лезвия
0.6 x 3.5 mm
Сечение соединения проводов, тонкий скрученный с кабельными наконечниками DIN 46228/4, макс.
2,5 mm²
Сечение соединения проводов, тонкий скрученный с кабельными наконечниками DIN 46228/4, мин.
0,14 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG

General

Installation advice
Rail
Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated voltage to adjoining terminal
800 V
Rated DC voltage
800 V
Nominal current
0 A
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Voltage size B (cURus)
600 V
Voltage size C (cURus)
600 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
