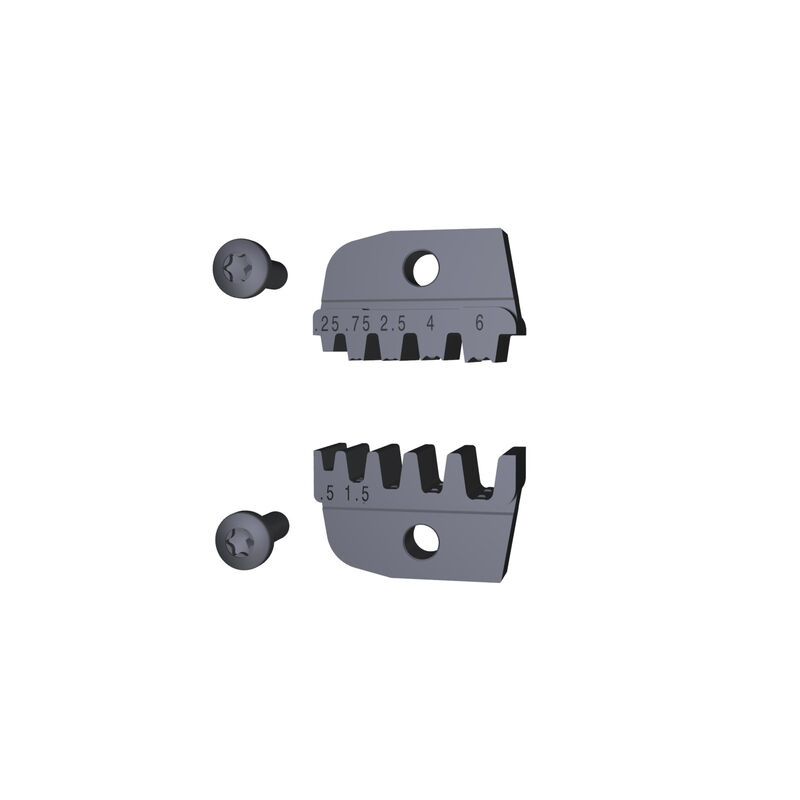

EINSATZPAAR PZ 6/5

EINSATZPAAR PZ 6/5

6mm², 사다리꼴 압착

Item No. 9011620000
Download data sheet Product Downloads
Is accessory of 2 Related products 9
일반 주문 데이터 치수 및 중량 환경 제품 규정 준수 Description du contact tool data crimping Classifications

일반 주문 데이터

Ausfuehrung
6mm², 사다리꼴 압착
Best.-Nr.
9011620000
Type
EINSATZPAAR PZ 6/5
GTIN (EAN)
4008190207939
Qty.
1 items

치수 및 중량

Depth
12 mm
Głębokość (cale)
0,472 inch
Height
31 mm
Height (inches)
1,22 inch
Width
26 mm
Width (inches)
1,024 inch
Net weight
41,36 g

환경 제품 규정 준수

Estado de cumplimiento de la directiva RoHS
Not affected
REACH SVHC
No SVHC above 0.1 wt%

Description du contact

Crimpbereich, max.
6 mm²
Leiterquerschnitt max. AWG
AWG 10
Leiterquerschnitt min. AWG
AWG 24

tool data crimping

Crimpart/-profil
Trapezoidal crimp

Classifications

ETIM 8.0
EC001282
ETIM 9.0
EC001282
ETIM 10.0
EC001282
ECLASS 14.0
21-04-90-90
ECLASS 15.0
21-04-90-90
