HDC 04A SLU 1M20G

HDC 04A SLU 1M20G

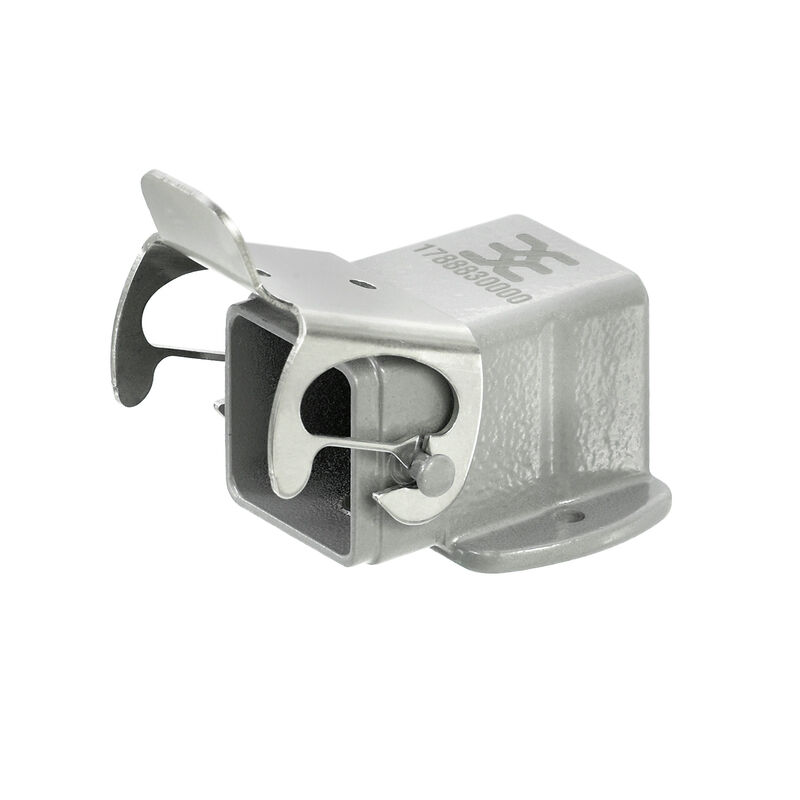

HDC enclosures, Installation size: 1, Protection degree: IP65, in plugged condition, Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 20

Item No. 1788830000
Download data sheet Engineering Support Product Downloads
Accessories 4 Is accessory of 2 Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Dimensions General data Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E92202

General ordering data

Version
HDC enclosures, Installation size: 1, Protection degree: IP65, in plugged condition, Base housing, Side-locking clamp on lower side, Standard, Size of cable entries: M 20
Order No.
1788830000
Type
HDC 04A SLU 1M20G
GTIN (EAN)
4032248206377
Qty.
1 items

Dimensions and weights

Depth
66 mm
Depth (inches)
2.598 inch
Height
53 mm
Height (inches)
2.087 inch
Width
37 mm
Width (inches)
1.457 inch
Mounting dimension - width
30 mm
Net weight
26.6 g

Temperatures

Limit temperature
-40 °C ... 125 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Chemical resistance
  • Substance:
    Acetone
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Drilling oil
  • Chemical resistance:
    Resistant
  • Substance:
    Diesel
  • Chemical resistance:
    Resistant
  • Substance:
    Ethyl alcohol
  • Chemical resistance:
    Resistant
  • Substance:
    Transmission oil
  • Chemical resistance:
    Resistant
  • Substance:
    Hydraulic oil
  • Chemical resistance:
    Resistant
  • Substance:
    Coolant
  • Chemical resistance:
    Resistant
  • Substance:
    Petroleum benzine
  • Chemical resistance:
    Resistant
  • Substance:
    Sweat
  • Chemical resistance:
    Resistant
  • Substance:
    Premium gasoline
  • Chemical resistance:
    Conditionally resistant
  • Substance:
    Water
  • Chemical resistance:
    Resistant
  • Substance:
    UV
  • Chemical resistance:
    Unstable
  • Substance:
    Ozone
  • Chemical resistance:
    Unstable

Dimensions

Altura capota B
42 mm
Cable entry
w. thread
Celková délka pouzdra
27 mm
Height of base B1
3 mm
Hole pitch length A2
30 mm
Width base C1
42 mm
Width housing C
25 mm

General data

EMC-kapslingar
No
Material of locking element
Stainless steel, rust-proof
Meghúzási nyomaték
0.5 Nm
Surface finish
Powder coating
Вид защиты
IP65
in plugged condition
하우징 기본 재질
diecast aluminium

Version

BG
1
Cable entry
w. thread
Clamp version
Side-locking clamp
Colour (RAL)
RAL 7035
Cover
without cover
Design
Standard
Design of housing
Base housing
Design of locking system
Side-locking clamp on lower side
Installation size
1
Internal thread
M 20
Number of cable entry on top
0
Number of cable entry sideways
1
Sealing
no sealing
Size of cable entries
M 20
Suitable for ModuPlug®
No
Tightening torque
0.5 Nm
Top part/bottom part/lid
lower part
Type
Base housing

Classifications

ETIM 8.0
EC000437
ETIM 9.0
EC000437
ETIM 10.0
EC000437
ECLASS 14.0
27-44-02-02
ECLASS 15.0
27-44-02-02
