IE-PP-V01P

IE-PP-V01P

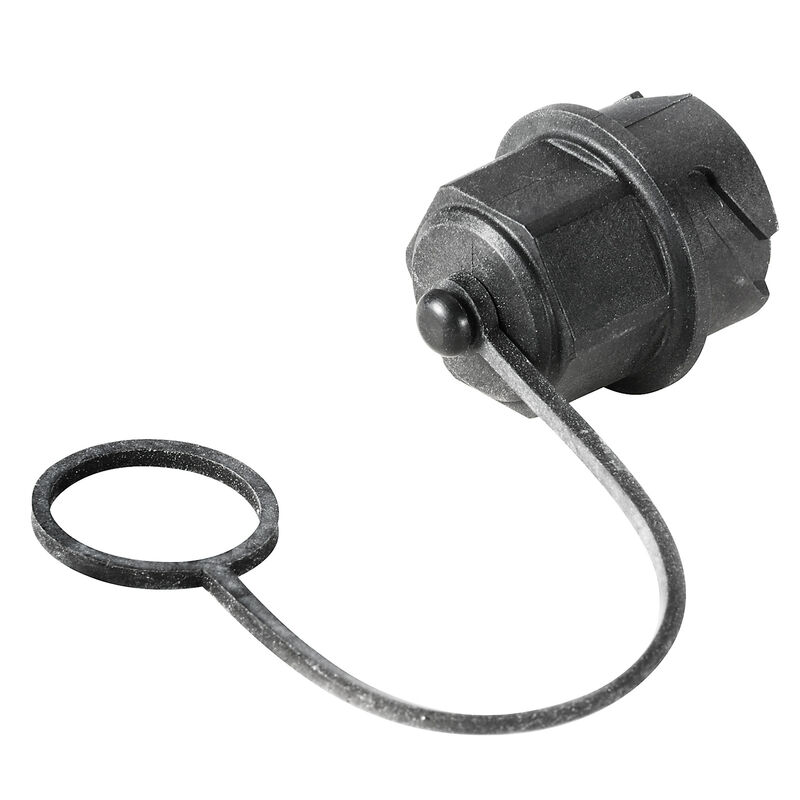

Plug housing protective cap

Item No. 1965690000
Download data sheet Product Downloads
Is accessory of 14 Related products 11
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Plug housing protective cap
Order No.
1965690000
Type
IE-PP-V01P
GTIN (EAN)
4032248653911
Qty.
10  items

Dimensions and weights

Depth
35.2  mm
Depth (inches)
1.386  inch
Net weight
11.716  g

Temperatures

Operating temperature
-40 °C...70 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Colour
black
Housing main material
PA UL 94 V0
Protection degree
IP67
Type of mounting
Indoors only
UL 94 flammability rating
V-0

Classifications

ETIM 6.0
EC002314
ETIM 7.0
EC002314
ETIM 8.0
EC002314
ETIM 9.0
EC002314
ETIM 10.0
EC002314
ECLASS 9.0
27-44-02-08
ECLASS 9.1
27-44-02-08
ECLASS 10.0
27-44-02-08
ECLASS 11.0
27-44-02-08
ECLASS 12.0
27-44-02-08
ECLASS 13.0
27-44-02-08
ECLASS 14.0
27-44-02-08
ECLASS 15.0
27-44-02-08
