KLBUE 10-20 RC TS27

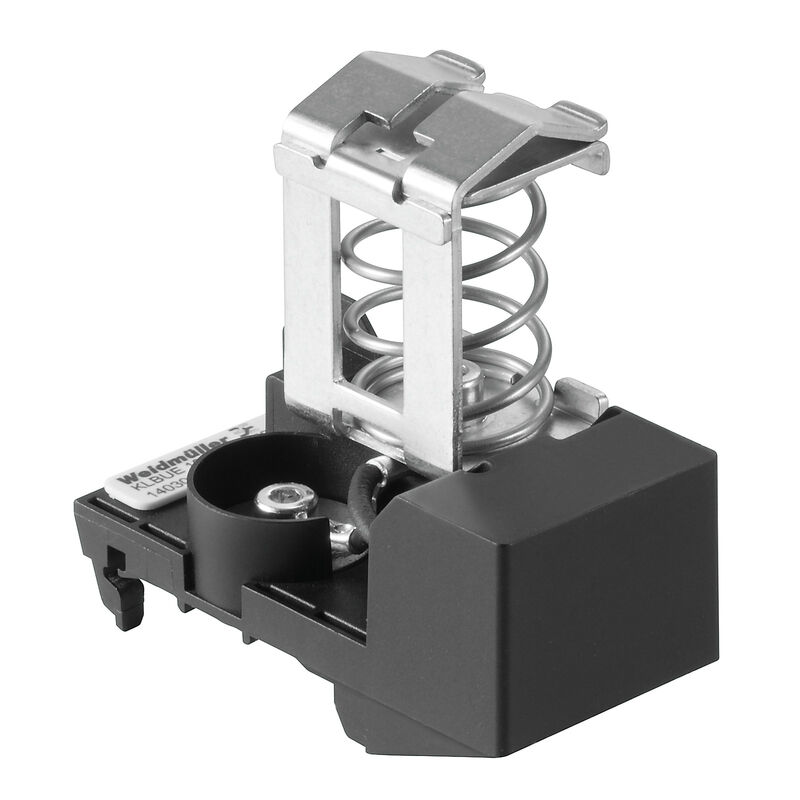

Product image
KLBUE 10-20 RC TS27

KLBUE 10-20 RC TS27

Clamping yoke, Clamping yoke for shield connection, PA 66 GF 30

Tuotteen tunnus 1403050000
Avaa konfiguraattorissa
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 3 Samankaltaiset tuotteet 44
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications ytterligare tekniska data Rögzíthető vezetékek (névleges csatlakozás) General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Clamping yoke, Clamping yoke for shield connection, PA 66 GF 30
Order No.
1403050000
Type
KLBUE 10-20 RC TS27
GTIN (EAN)
4050118204773
Qty.
1 items

Dimensions and weights

Depth
63.6 mm
Depth (inches)
2.504 inch
Height
67.5 mm
Height (inches)
2.657 inch
Width
39.6 mm
Width (inches)
1.559 inch
Net weight
99 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-25 °C
Continuous operating temp., max.
105 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
6fc8563f-82a2-46cf-b3da-0e2c7ddd4382

Material data

Material básico
PA 66 GF 30
Szín
black
Silver grey
UL 94 flammability rating
V-0

System specifications

Versión
For a shield connection
With resistor
Tapa final obligatoria
No
Tartósín
TS 27

ytterligare tekniska data

Felszerelés típusa
Snap-on
Indicación de montaje
Direct mounting
Version à l#92épreuve de l#92explosion
No

Rögzíthető vezetékek (névleges csatlakozás)

Cable diameter, max.
20 mm
Cable diameter, min.
10 mm
Connection cross-section, stranded, max.
20 mm²
Connection cross-section, stranded, min.
10 mm²
Number of connections
1
Stripping length
30 mm
Type of connection
Spring connection

General

Installation advice
Direct mounting
Mounting rail
TS 27

Rating data

Sección nominal
20 mm²
Tensión nominal
230 V

Classifications

ETIM 8.0
EC002020
ETIM 9.0
EC002020
ETIM 10.0
EC002020
ECLASS 14.0
27-25-01-20
ECLASS 15.0
27-25-01-20
