KTB QL 262620 S4E3
Similar to illustration
Abbildung ähnlich
KTB QL 262620 S4E3

KTB QL 262620 S4E3

Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 260 mm, Width: 260 mm, Depth: 200 mm, Gland plates: Bottom, left, right, Basic material: Stainless steel 1.4404 (316L), electropolished, silver

Tuotteen tunnus 1199980000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 22 Yksittäiset osat 3 Samankaltaiset tuotteet 5
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Cable glands, left Cable glands, right Cable glands, top/bottom Certificate numbers enclosure General information horizontal assembly Housing earth vertical assembly Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319219/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319245/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319251/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319239/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319242/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319243/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E243298

General ordering data

Version
Klippon TB QL (Terminal Box - Quarter Lock), Empty enclosure, stainless steel enclosure, Height: 260 mm, Width: 260 mm, Depth: 200 mm, Gland plates: Bottom, left, right, Basic material: Stainless steel 1.4404 (316L), electropolished, silver
Order No.
1199980000
Type
KTB QL 262620 S4E3
GTIN (EAN)
4032248982875
Qty.
1  items

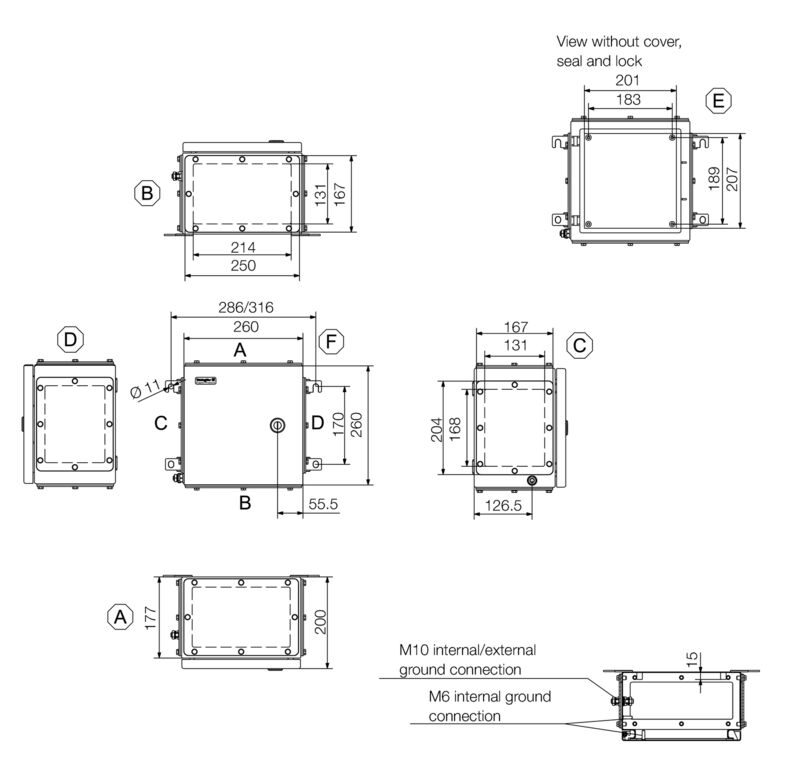

Dimensions and weights

Depth
200  mm
Depth (inches)
7,874  inch
Height
260  mm
Height (inches)
10,236  inch
Width
260  mm
Width (inches)
10,236  inch
Mounting dimension - height
170  mm
Mounting dimension - width
316  mm
Net weight
8 153  g

Temperatures

Operating temperature
-60 °C...135 °C
Note: room temperature (service)
Limited to IP66 protection when used in temperatures greater than 105 °C.

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
8d5fcdfe-c58e-44e1-a6b4-74d2bbccc9dd

Cable glands, left

M12
25
M16
16
M20
11
M25
9
M32
4
M40
4
M50
2
M63
1
M75
1

Cable glands, right

M12
25
M16
16
M20
11
M25
9
M32
4
M40
4
M50
2
M63
1
M75
1

Cable glands, top/bottom

M12
33
M16
22
M20
14
M25
12
M32
6
M40
5
M50
2
M63
2
M75
1

Certificate numbers enclosure

Approval conditions
ATEX
CCoE
cULus
DNV
IECEX
INMETRO
KC
NEPSI
CCC
UL AEx Class Div.
UL AEx Class Zone
Attestation of Conformatiy No. (AoC)
DE PS261X 160309 001ISS06
Certificate No. (ATEX)
KEMA10ATEX0047U
Certificate No. (CCOE)
P461058_1
Certificate no. (cULus)
E243298
Certificate No. (DNV)
TAE000013S
Certificate No. (IECEX)
IECEXKEM10.0015U
Certificate no. (INMETRO)
IEX13.0006U
Certificate No. Electronic Box (NEPSI)
2020322303003289
Certificate no. empty enclosure (ATEX)
IBExU14ATEX1028 U
Certificate no. empty enclosure (ECAS)
21-09-25241/E21-09-053807
Certificate no. empty enclosure (IECEx)
IECEx IBE 14.0004U
Certificate no. empty enclosure (INMETRO)
LMP 21.0016U
Certificate no. Terminal Box (AEx)
E223792
Certificate no. Terminal Box (ATEX)
IBExU14ATEX1050
Certificate no. Terminal Box (IECEx)
IECEXIBE14.0013
Certificate no. Terminal Box (INMETRO)
LMP 21.0017
Certificate no. Terminal Box (KOSHA)
16-AV4BO-0245X
Certificate No. UL 508A
E223801
Certificate No. UL Haz.Loc.
E223792
Certificate No. UL Ord.Loc.
E243298
Certificate No. UL Terminal Box
E223792
Declaration of Conformatiy No. (DoC LVD)
DE PS261X 160412 001ISS03

General information

Access opening: height
207  mm
Access opening: width
201  mm
AF size
10  mm
Areas of use
Explosive risk zone
Process industry
Oil and gas industry
Chemical industry
Offshore
Onshore
Basic material
Stainless steel 1.4404 (316L)
Dimension of box
320x455x290
Enclosure attachment
4 welded-on mounting feet with 11 mm holes (2 slotted feet and 2 cross-shaped feet)
Flange plate
Yes
Flange plate mounting
M6 hexagonal head screws 10 SW
Gland plates
Bottom
left
right
Impact resistance
7 J ATEX version
10 J version standard
Integral fixing
4, 6 or 9 stud bolts M6 inner (female) thread
Lid attachment
Quarter-turn fastener with slotted insert
Material thickness of cover
1,5  mm
Material thickness of enclosure
1,5  mm
Material thickness of flange
3  mm
Max. payload
27  kg
Note: protection class
If used in temperature ranges above 105 °C, IP protection is limited to IP 66.
Opening angle lid
130  °
Operating temperature, max.
135  °C
Operating temperature, min.
−60  °C
Overall dimensions
271 x 341 x 210
Position PE bolts
Enclosure side C
Protection class (UL)
Type 3
Type 4X
Type 12
Protection degree
IP66
Seal material
Silicone
Standards
DIN EN 62208 - Empty enclosure standard
DIN EN 61373 Class 1B**
DIN EN 15085-2
EN 60079-0
EN 60079-7
EN 60079-31
IEC 60079-0
IEC 60079-7
IEC 60079-31
Surface finish
electropolished

horizontal assembly

WDU 10 / ZDU 10
1x17
WDU 16 / ZDU 16
1x14
WDU 2,5 / ZDU 2,5 / IDU 2,5
2x34
WDU 4 / ZDU 4
1x29
WDU 6 / ZDU 6
1x22

Housing earth

Earth, enclosure, internal
Welded-on M6 stainless-steel earth stud in enclosure body and lid.

vertical assembly

WDU 10 / ZDU 10
1x18
WDU 16 / ZDU 16
1x15
WDU 2,5 / ZDU 2,5 / IDU 2,5
2x35
WDU 4 / ZDU 4
1x30
WDU 6 / ZDU 6
1x22

Classifications

ETIM 6.0
EC002503
ETIM 7.0
EC002503
ETIM 8.0
EC002503
ETIM 9.0
EC002503
ETIM 10.0
EC002503
ECLASS 9.0
27-18-05-02
ECLASS 9.1
27-18-05-02
ECLASS 10.0
27-18-05-02
ECLASS 11.0
27-18-05-02
ECLASS 12.0
27-18-05-02
ECLASS 13.0
27-18-05-02
ECLASS 14.0
27-18-05-02
ECLASS 15.0
27-18-05-02
