MultiFit, Terminal marker, 8 x 6 mm, Pitch in mm (P): 6.00 Siemens, white

Item No. 1889240000
Download data sheet Engineering Support Product Downloads
Related products 2
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Connector markers Product images Classifications

Approvals

ROHS
Conform

General ordering data

Utförande
MultiFit, Terminal marker, 8 x 6 mm, Pitch in mm (P): 6.00 Siemens, white
Art.nr.
1889240000
Typ
MF-SI 8/6 MC NE WS
GTIN (EAN)
4032248495542
Qty.
320 items

Dimensions and weights

Höjd
8 mm
Height (inches)
0,315 inch
Bredd
6 mm
Width (inches)
0,236 inch
Net weight
0,291 g

Temperatures

Temperaturområde för användning
-40...100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.002 kg CO2 eq.

General data

Application/manufacturer
Siemens
Basic material
Polyamide 66
Color de material según código de resistencia
9
Colour
white
compatible printer
[PRINTJET CONNECT](~/p/2715590000)
Halogen
No
Number of markers per combination
1 MultiCard = Terminal marker
Number of markers per packaging unit
  • Form of supply:
    MultiCard
Operating temperature range
-40...100 °C
Operating temperature range, max.
100 °C
Operating temperature range, min.
−40 °C
Printed characters
neutral
Type of printing
neutral
UL 94 flammability rating
V-2
Width
6 mm

Connector markers

Pitch in mm (P)
6 mm

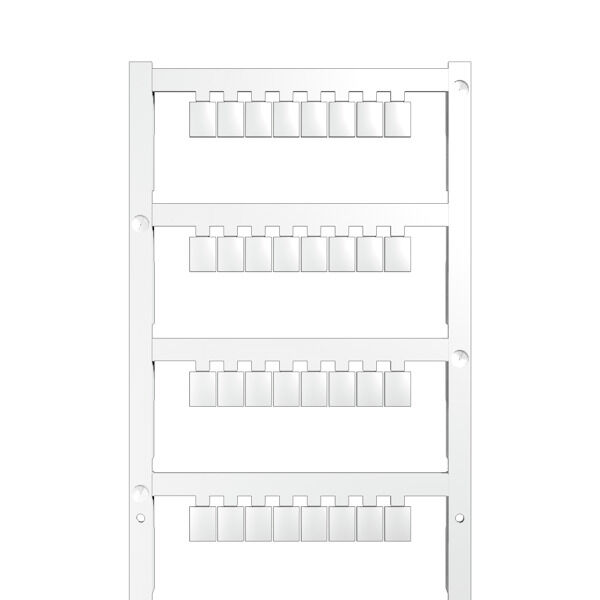

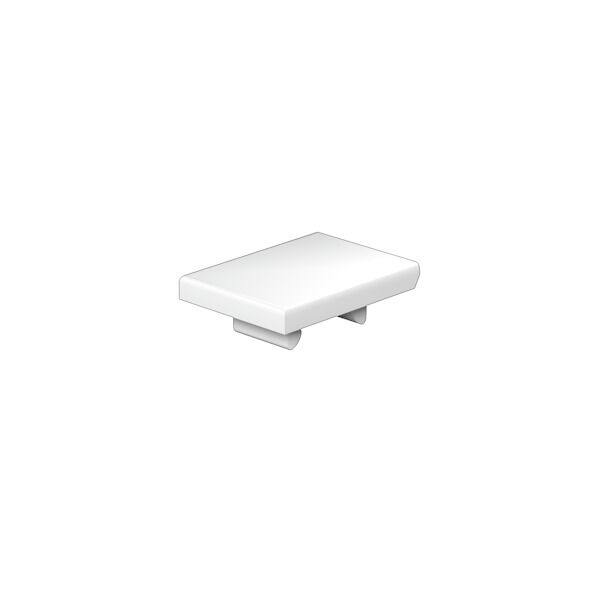

Product images

Classifications

ETIM 8.0
EC000761
ETIM 9.0
EC000761
ETIM 10.0
EC000761
ECLASS 14.0
27-28-11-01
ECLASS 15.0
27-28-11-01
