SAIL-M12BG-L-1.5PGR
SAIL-M12BG-L-1.5PGR
Dimensioned drawing
SAIL-M12BG-L-1.5PGR
Pole scheme
Socket
SAIL-M12BG-L-1.5PGR
Wiring diagram
SAIL-M12BG-L-1.5PGR
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M12BG-L-1.5PGR

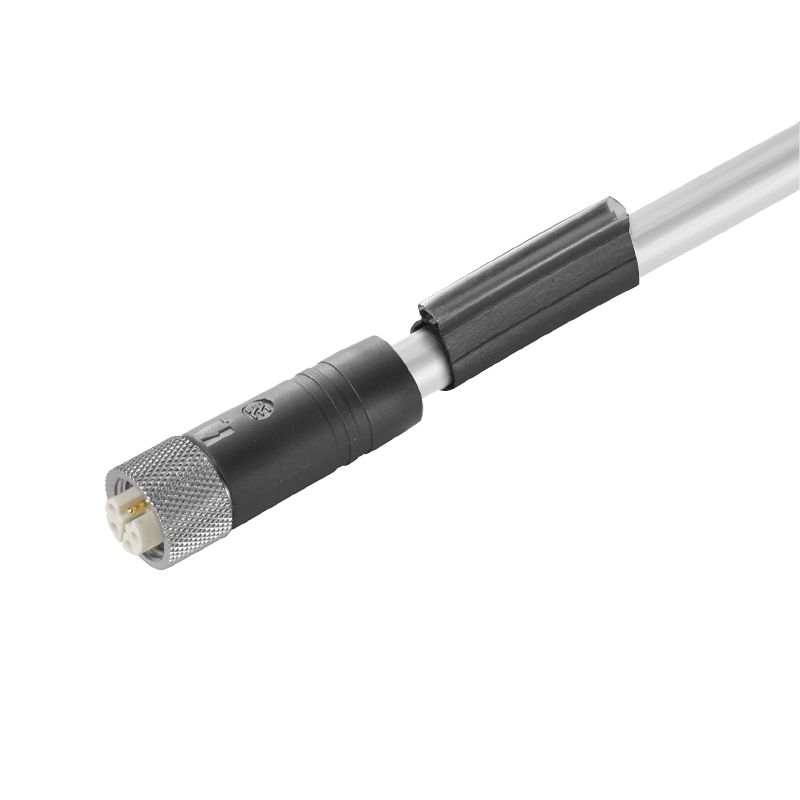

Sensor/actuator line, One end without connector, M12, Number of poles : 5, 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 2455330150
Download datablad Engineering Support Product Downloads
Er tilbehør til 6 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E257571

General ordering data

Version
Sensor/actuator line, One end without connector, M12, Number of poles : 5, 1.5 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Order No.
2455330150
Type
SAIL-M12BG-L-1.5PGR
GTIN (EAN)
4050118469950
Qty.
1  Styk

Dimensions and weights

Net weight
100  g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Technical specifications for cable

Acceleration
5  m/s²
Bending cycles
10 Mio
Bending radius, min., moving
7.5 x cable diameter
Bending radius, min., stationary
4 x cable diameter
Cable length
1,5  m
Colour coding
brown
white
blue
black
pink
Configurable cable length
No
Core cross-section
1,5  mm²
Halogen
No
Insulation
PP
Irradiation crosslinked
No
Number of poles
5
Outer cladding in accordance with UL AWM style
20939 (80 °C / 600 V)
Outside diameter
8 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
grey
Shielded
No
Speed
5  m/s
Suitable for cable carriers
Yes
Temperature range, moving
-30...80 °C
Temperature range, stationary
-40...80 °C
Welding spark resistance
No

General technical data

Coding
L-coded
Connection thread
M12
Contact surface
Gold-plated
Housing main material
PUR
Insulation resistance
108 Ω
jumpered
No
LED
No
Nominal current
16  A
Nominal voltage
50  V
Plugging cycles
≤ 100
Pollution severity
3
Protection degree
IP65
IP67
when screwed in
Temperature range of housing
-40 … +85 ° C
Tightening torque
M12: 0.8 - 1.2 Nm
Version
Female socket, straight

Electrical properties

Insulation resistance
108 Ω
Nominal voltage
50  V

General standards

Certificate no. (cULus)
E257571
Connector standard
IEC 61076-2-111

Standards

Connector standard
IEC 61076-2-111

Plug, left

Plug left
M12, L-coded, IP67, female contact, straight, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 6.0
EC001855
ETIM 7.0
EC001855
ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 9.0
27-06-03-11
ECLASS 9.1
27-06-03-11
ECLASS 10.0
27-06-03-11
ECLASS 11.0
27-06-03-11
ECLASS 12.0
27-06-03-11
ECLASS 13.0
27-06-03-11
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
