SAIL-M16BW-12-1.5U
SAIL-M16BW-12-1.5U
Dimensioned drawing
Angled socket
SAIL-M16BW-12-1.5U
Pole scheme
Socket
SAIL-M16BW-12-1.5U
Wiring diagram
SAIL-M16BW-12-1.5U
The ideal tool: Screwty ® with torque function
Light, securely screwed-in round plug-in connectors. Screwty set DM / VPE: 1 / Order No.: 1920000000 Adapters: M12, M12 F, M8, M8 F

SAIL-M16BW-12-1.5U

Tämä tuote ei ole pian enää saatavana.

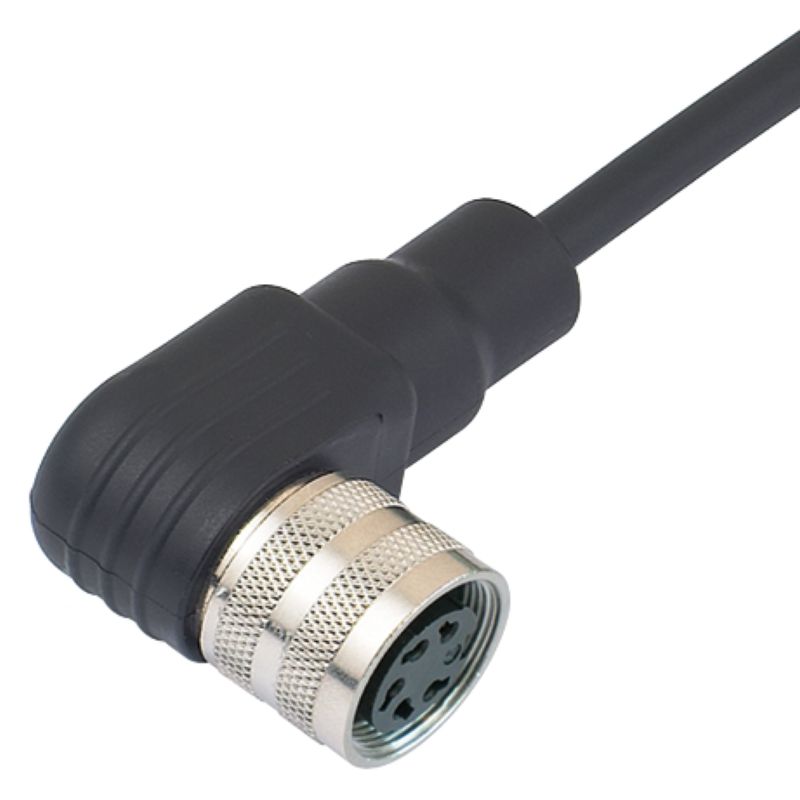

Sensor/actuator line, One end without connector, M16, Number of poles: 12, 1.5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: Yes

Tuotteen tunnus 1259010150
Lataa tietosivu Product Downloads Engineering Support
Samankaltaiset tuotteet 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Datos técnicos del cable Datos técnicos generales Electrical properties Plug, left Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Sensor/actuator line, One end without connector, M16, Number of poles: 12, 1.5 m, Socket, angled, Shielded: No, LED: No, Sheath material: PUR, Halogen: Yes
Order No.
1259010150
Tipo
SAIL-M16BW-12-1.5U
GTIN (EAN)
4050118146769
Qty.
1 items

Dimensions and weights

Net weight
153 g

Environmental Product Compliance

RoHS Compliance Status
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
e8d8af70-4c85-4483-bc8c-9bc5b598e2a9

Datos técnicos del cable

Bending radius, min., moving
15 x diámetro del cable
Bending radius, min., stationary
8 x diámetro del cable
Cable length
1,5 m
Colour coding
blanco
marrón
gris/rosa
rojo/azul
verde
amarillo
gris
rosa
azul
rojo
negro
violeta
Core cross-section
0,25 mm²
Halogen
Sì
Insulation
PVC
Irradiation crosslinked
Nej
Number of poles
12
Outside diameter
7 mm ± 0.2 mm
Resistant to welding beads
No
Sheath material
PUR
Sheathing colour
black
Shielded
No
Suitable for cable carriers
No
Temperature range, moving
-5...70 °C
Temperature range, stationary
-25...70 °C
Torsion resistance
0 °/m
Welding spark resistance
No

Datos técnicos generales

Anzugsdrehmoment
M16: 0,6 Nm
Connection thread
M16
Contact surface
bañado en oro
Housing main material
PUR
Insulation resistance
1012 Ω
jumpered
No
LED
No
Nominal current
3 A
Nominal voltage
60 V
Plugging cycles
≥ 500
Pollution severity
1
Protection degree
IP67
Rozsah teplot krytu
-25 … +70 °C
Threaded ring material
Brass, nickel-plated
Version
Socket, angled

Electrical properties

Insulation resistance
1012 Ω
Nominal voltage
60 V

Plug, left

Plug left
M16, IP67, female contact, angled 90°, Plastic, unshielded

Plug, right

Plug right
free conductor end

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
