SFX 30/60 MM WS
SFX 30/60 MM WS

SFX 30/60 MM WS

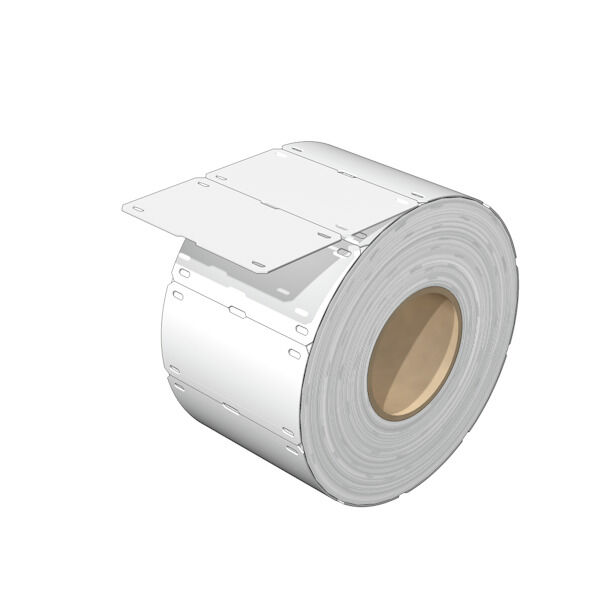

SlimFix, Conductor and cable markers, 7 -, 60 x 32 mm, white

Tuotteen tunnus 2005360000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 3 Samankaltaiset tuotteet 6
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Conductor and cable markers Classifications

Approvals

ROHS
Conform

General ordering data

Változat
SlimFix, Conductor and cable markers, 7 -, 60 x 32 mm, white
Référence
2005360000
Tipo
SFX 30/60 MM WS
GTIN (EAN)
4050118390131
Qty.
300 items

Dimensions and weights

Profondità
0,6 mm
Depth (inches)
0,024 inch
Posizione verticale
60 mm
Height (inches)
2,362 inch
Larghezza
32 mm
Width (inches)
1,26 inch
Net weight
1,443 g

Temperatures

Campo delle temperature di impiego
-40...90 °C

Environmental Product Compliance

Stato conformità RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Basic material
Polyurethane
Colour
white
compatible printer
[THM MULTIMARK](~/p/2599430000)
[THM MULTIMARK PLUS](~/p/2599440000)
Halogen
No
Number per roll
300
Operating temperature range
-40...90 °C
Operating temperature range, max.
90 °C
Operating temperature range, min.
-40 °C
Printed characters
without
Size of labelling field
45 x 29.5 mm
Type of printing
neutral
UL 94 flammability rating
HB
Version
halogen-free
Width
32 mm

Conductor and cable markers

Cable tie passage
Flat
Conductor O.D.
7 -
Halogen
No
Suitable cable tie
Plastic
Text field height
29,5 mm
Text field width
45 mm
Zewnętrzna średnica przewodu, maks.
40 mm
Zewnętrzna średnica przewodu, min.
7 mm
Сечение соединительного провода
500 mm²
전선 굵기, 최대
500 mm²

Classifications

ETIM 8.0
EC001530
ETIM 9.0
EC001530
ETIM 10.0
EC001530
ECLASS 14.0
27-28-11-02
ECLASS 15.0
27-28-11-02
