SV 7.62HP/03/270MF2 SC/08R SN BK BX

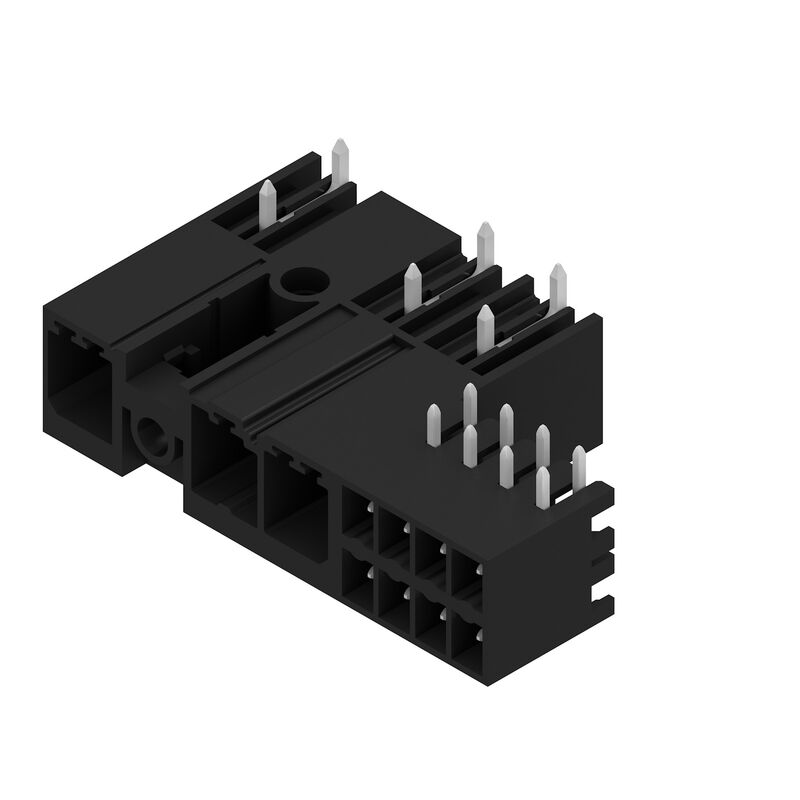

Produktillustration
SV 7.62HP/03/270MF2 SC/08R SN BK BX

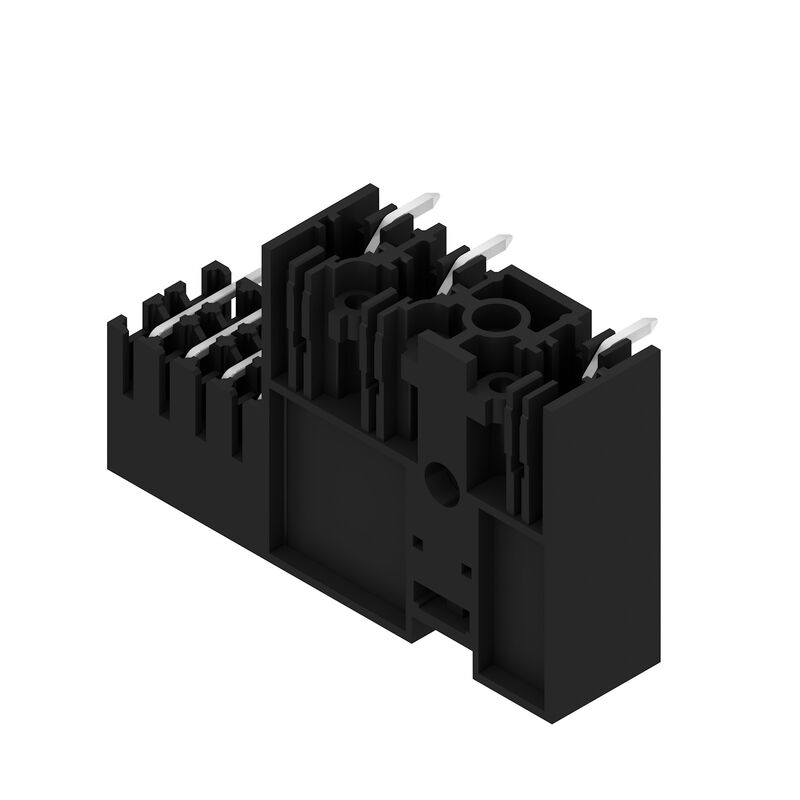

Produktillustration
SV 7.62HP/03/270MF2 SC/08R SN BK BX
Dimensional drawing

SV 7.62HP/03/270MF2 SC/08R SN BK BX

PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, Number of poles: 3, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box

Ürün No. 1156170000
Veri sayfasını indir 엔지니어링 지원 제품 다운로드
Aksesuarlar 1 Şunun karşı parçasıdır 2 İlgili ürünler 18
Approvals General ordering data Dimensions and weights Environmental Product Compliance System specifications Material data Rated data acc. to IEC Rated data acc. to CSA Rated data acc. to UL 1059 Packing Technical data - hybrid Important note Product images Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
PCB plug-in connector, male header, closed side, Middle flange, THT solder connection, 7.62 mm, Number of poles: 3, 270°, Solder pin length (l): 3.5 mm, tinned, black, Box
Order No.
1156170000
Type
SV 7.62HP/03/270MF2 SC/08R SN BK BX
GTIN (EAN)
4032248942671
Qty.
36 adet
Product data
IEC: 1000 V / 41 A
UL: 300 V / 35 A
Packaging
Box

Dimensions and weights

Depth
28,3 mm
Depth (inches)
1,114 inch
Height
14,9 mm
Hauteur (pouces)
0,587 inch
Height of lowest version
11,4 mm
Width
46,69 mm
Width (inches)
1,838 inch
Net weight
2 g

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

System specifications

Product family
OMNIMATE Power - series BV/SV 7.62HP
Type of connection
Board connection
Mounting onto the PCB
THT solder connection
Pitch in mm (P)
7,62 mm
Pitch in inches (P)
0,3 "
Outgoing elbow
270°
Number of poles
3
Number of solder pins per pole
2
Solder pin length (l)
3,5 mm
Solder pin length tolerance
+0.1 / -0.3 mm
Solder pin dimensions
0.8 x 1.0 mm
Solder eyelet hole diameter (D)
1,4 mm
Solder eyelet hole diameter tolerance (D)
+ 0,1 mm
L1 in mm
22,86 mm
L1 in inches
0,9 "
L2 in mm
11,43 mm
L2 in inch
0,45 "
Количество рядов
1
Pin series quantity
1
Touch-safe protection acc. to DIN VDE 57 106
safe to back of hand above the printed circuit board
Touch-safe protection acc. to DIN VDE 0470
IP 20
Volume resistance
2.00 mΩ
Can be coded
Yes
Plugging cycles
25
Plugging force/pole, max.
12 N
Pulling force/pole, max.
7 N

Material data

Materiales aislantes
PA GF
Color
black
Carta de colores (similar)
RAL 9011
Grupo de materiales aislantes
II
Comparative Tracking Index (CTI)
≥ 500
UL 94 flammability rating
V-0
Material de contacto
Cu-alloy
Contact surface
tinned
Forrasztott csatlakozás rétegszerkezete
1...3 µm Ni / 4...6 µm Sn matt
플러그 접점의 레이어 구조
1...3 µm Ni / 4...6 µm Sn matt
Storage temperature, min.
-40 °C
Storage temperature, max.
70 °C
Operating temperature, min.
-50 °C
Operating temperature, max.
130 °C
Temperature range, installation, min.
-25 °C
Temperature range, installation, max.
130 °C

Rated data acc. to IEC

tested acc. to standard
IEC 60664-1
IEC 61984
Corriente nominal, número de polos mín. (Tu=20 °C)
41 A
Corriente nominal, número de polos máx. (Tu=20 °C)
41 A
Corriente nominal, número de polos mín. (Tu=40 °C)
41 A
Corriente nominal, número de polos máx. (Tu=40 °C)
41 A
Rated voltage for surge voltage class / pollution degree II/2
1.000 V
Rated voltage for surge voltage class / pollution degree III/2
630 V
Rated voltage for surge voltage class / pollution degree III/3
630 V
Névleges lökőfeszültség a II/2 túlfeszültség osztályhoz / szennyezés mértékéhez
6 kV
Rated impulse voltage for surge voltage class/ pollution degree III/2
6 kV
Sobretensión de choque nominal con categoría de sobretensión/grado de polución III/3
6 kV
Short-time withstand current resistance
3 x 1s with 420 A

Rated data acc. to CSA

Institute (CSA)
CSA
Certificate No. (CSA)
200039-1121690
Rated voltage (Use group B / CSA)
300 V
Rated voltage (Use group C / CSA)
300 V
Rated voltage (Use group D / CSA)
600 V
Rated current (Use group B / CSA)
33 A
Rated current (Use group C / CSA)
33 A
Névleges áram (D felhasználási csoport / CSA)
5 A
Ссылка на утвержденные значения
Specifikace jsou maximální hodnoty, podrobnosti viz příslušná certifikace.

Rated data acc. to UL 1059

Institute (cURus)
CURUS
Certificate No. (cURus)
E60693
Rated voltage (Use group B / UL 1059)
300 V
Rated voltage (Use group C / UL 1059)
300 V
Rated voltage (Use group D / UL 1059)
600 V
Rated current (Use group B / UL 1059)
35 A
Rated current (Use group C / UL 1059)
33 A
Rated current (Use group D / UL 1059)
5 A
Creepage distance, min.
9,6 mm
Luftstrecke, min.
6,9 mm
Reference to approval values
Specifications are maximum values, details - see approval certificate.

Packing

Packaging
Box
VPE length
352 mm
VPE width
135 mm
VPE height
40 mm

Technical data - hybrid

Pitch in mm (hybrid)
  • nominal:
    3,81 mm
  • Hybrid component:
    Signal
Pitch in mm (Signal)
3.81 mm
Pitch in inch (hybrid)
  • nominal:
    0,15 "
  • Hybrid component:
    Signal
Pas en pouces (Signal)
0.15 "
Pole count (hybrid)
  • nominal:
    8
  • Hybrid component:
    Signal
Number of poles (Signal)
8
Number of solder pins per pole (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1
Number of solder pins per pole (Signal)
1
Solder pin dimensions (hybrid)
  • Solder pin dimensions:
    0.8 x 0.8 mm
  • Hybrid component:
    Signal
Solder pin dimensions (Signal)
0.8 x 0.8 mm
Solder pin dimensions = d tolerance (hybrid)
  • Solder pin dimensions = d tolerance:
    • Lower tolerance with prefix (reveals minimum):
      -0,03
    • Upper tolerance with prefix (reveals maximum):
      +0,01
    • Tolerance, unit:
      mm
  • Hybrid component:
    Signal
Solder pin dimensions = d tolerance (Signal)
-0,03 / +0,01 mm
Diameter of solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    1,3 mm
PCB hole diameter (Signal)
1.3 mm
Tolerance of the diameter of the solder eyelet (hybrid)
  • Hybrid component:
    Signal
  • Solder eyelet hole diameter tolerance (D):
    ± 0.1 mm
PCB hole diameter tolerance (Signal)
± 0.1 mm
L2 in mm
11,43 mm
L2 in inch
0,45 "
Number of rows (hybrid)
  • Hybrid component:
    Signal
Number of rows (Signal)
2
Contact material (hybrid)
  • Hybrid component:
    Signal
  • Contact material:
    CuMg
Contact material (Signal)
CuMg
Contact surface (hybrid)
  • Hybrid component:
    Signal
  • Contact surface:
    tinned
Contact surface (Signal)
tinned
Layer structure of the solder connection (hybrid)
  • Layer structure of the solder connection:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the solder connection (Signal)
1-3 µm Ni / 4-8 µm Sn
Layer structure of the plug contact (hybrid)
  • Layer structure of the plug contact:
    • Material:
      Ni
    • Layer strength:
      • min.:
        1 µm
      • max.:
        3 µm
    • Material:
      Sn
    • Layer strength:
      • min.:
        4 µm
      • max.:
        8 µm
  • Hybrid component:
    Signal
Layer structure of the plug contact (Signal)
1-3 µm Ni / 4-8 µm Sn
Rated voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    320 V
Rated voltage for overvoltage class/pollution severity level II/2 (Signal)
320 V
Rated voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/2 (Signal)
160 V
Tensione nominale per classe di sovratensione / grado di lordura di livello III/3 (ibrido)
  • Hybrid component:
    Signal
  • nominal:
    160 V
Rated voltage for overvoltage class/pollution severity level III/3 (Signal)
160 V
Rated impulse voltage for overvoltage class / pollution severity level II/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level II/2 (Signal)
2.5 kV
Rated impulse voltage for overvoltage class / pollution severity level III/2 (hybrid)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Znamionowe napięcie impulsowe dla klasy przepięć / stopień zanieczyszczenia III/2 (Signal)
2.5 kV
Номинальное импульсное напряжение для класса перенапряжения / степень загрязнения III/3 (гибридн.)
  • Hybrid component:
    Signal
  • nominal:
    2,5 kV
Rated impulse voltage for overvoltage class/pollution severity level III/3 (Signal)
2.5 kV
Rated current, number of poles (Tu=40°C) (hybrid)
  • Hybrid component:
    Signal
  • min.:
    12,7 A
Rated current, number of poles (Tu=20°C) (hybrid)
  • Hybrid component:
    Signal
  • min.:
    14,2 A
Short-time withstand current capacity (hybrid)
  • Short-time withstand current resistance:
    3 x 1s with 80 A
  • Hybrid component:
    Signal
Short-time withstand current resistance (Signal)
3 x 1s with 80 A
Creepage distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    4,38 mm
Clearance distance (hybrid)
  • Hybrid component:
    Signal
  • min.:
    3,6 mm
Rated voltage (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / CSA) (Signal)
300 V
Rated voltage (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / CSA) (Signal)
50 V
Rated current (Use group B / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group B / CSA) (Signal)
9 A
Rated current (Use group C / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group C / CSA) (Signal)
9 A
Rated current (Use group D / CSA) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    9 A
Rated current (Use group D / CSA) (Signal)
9 A
Rated voltage (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    300 V
Rated voltage (Use group B / UL 1059] (Signal)
300 V
Rated voltage (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    50 V
Rated voltage (Use group C / UL 1059] (Signal)
50 V
Rated voltage (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
Rated current (Use group B / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group B / UL 1059) (Signal)
5 A
Rated current (Use group C / UL 1059) (Hybrid)
  • Hybrid component:
    Signal
  • nominal:
    5 A
Rated current (Use group C / UL 1059) (Signal)
5 A
Rated current (Use group D / UL 1059) (Hybrid)
  • Hybrid component:
    Signal

Important note

IPC conformity
Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request.
Notes
  • Technical specifications refer to the power contacts
  • Technical data of signal contacts: 50V / 5A, stripping length 8mm
  • Rated current related to rated cross-section & min. No. of poles.
  • Specifications of diagram: P1=7.62 mm; P2=3.81 mm
  • Rated data refer only to the component itself. Clearance and creepage distances to other components are to be designed in accordance with the relevant application standards.
  • MFX and MSFX: X= Position of the middle flange e.g. MF2, MSF3
  • In accordance with IEC 61984, OMNIMATE-connectors are connectors without breaking capacity (COC). During designated use, connectors are not allowed to be engaged or disengaged when live or under load
  • Long term storage of the product with average temperature of 50 °C and maximum humidity 70%, 36 months


Product images

Classifications

ETIM 8.0
EC002637
ETIM 9.0
EC002637
ETIM 10.0
EC002637
ECLASS 14.0
27-46-03-01
ECLASS 15.0
27-46-03-01
