WKS 2/10

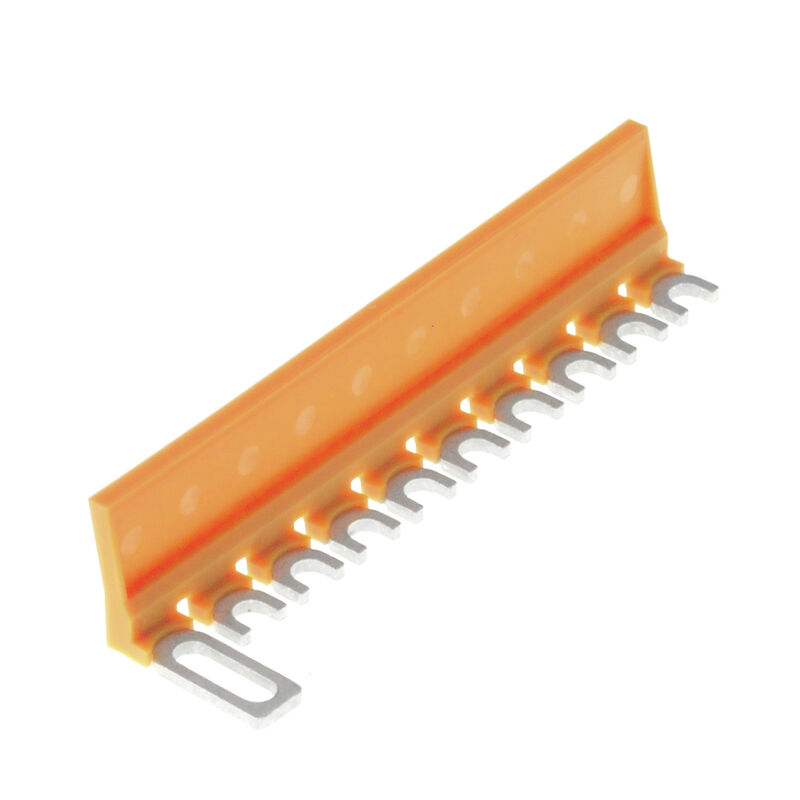

Product image

WKS 2/10

Accessories, Cross-connection slider, x 77.3

Tuotteen tunnus 1936180000
Lataa tietosivu Engineering Support Product Downloads
Samankaltaiset tuotteet 21
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Dimensions General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Accessories, Cross-connection slider, x 77.3
Order No.
1936180000
Type
WKS 2/10
GTIN (EAN)
4032248605910
Qty.
20  items

Dimensions and weights

Depth
16,1  mm
Depth (inches)
0,634  inch
Height
18,86  mm
Height (inches)
0,743  inch
Width
77,3  mm
Width (inches)
3,043  inch
Net weight
9,3  g

Temperatures

Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
−50  °C
Continuous operating temp., max.
100  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Polyamide 66
Colour
orange
UL 94 flammability rating
V-2

System specifications

Version
Cross-connector

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Type of fixing
Plugged
Type of mounting
Clamped

Dimensions

Pitch in mm (P)
7,9  mm

General

Installation advice
Direct mounting
Number of poles
10
Operating temperature range, max.
100  °C

Rating data

Rated voltage
400  V
Nominal current
41  A

Classifications

ETIM 6.0
EC000489
ETIM 7.0
EC000489
ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 9.0
27-14-11-40
ECLASS 9.1
27-14-11-40
ECLASS 10.0
27-14-11-40
ECLASS 11.0
27-14-11-40
ECLASS 12.0
27-14-11-40
ECLASS 13.0
27-25-03-03
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
