ZAP/TW ZIA1.5/3L

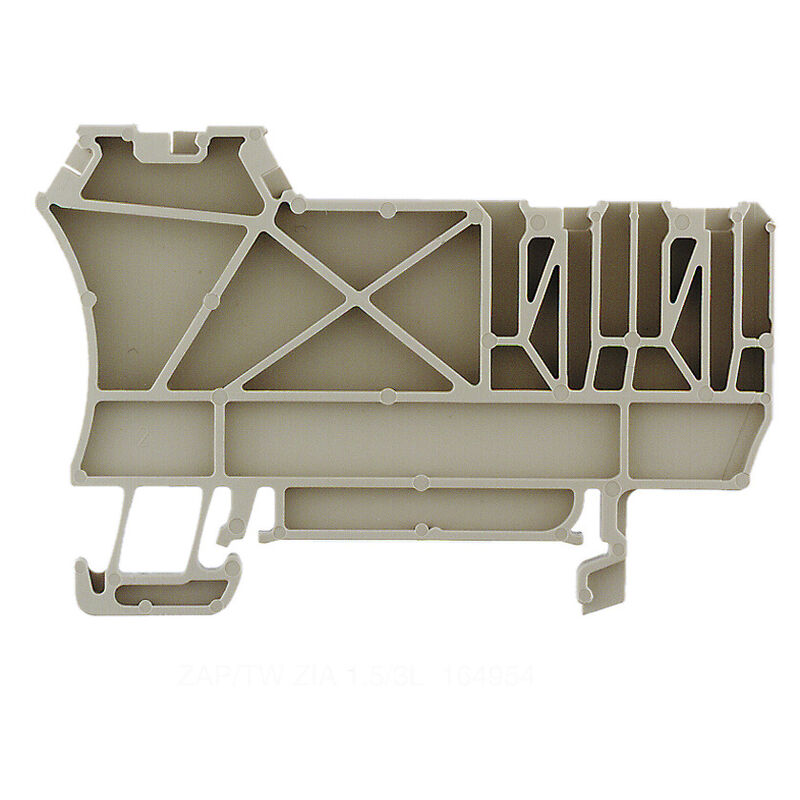

Product image

ZAP/TW ZIA1.5/3L

Z-series, End plate, Partition plate

Produkt ID 1649540000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 1 Er tilbehør til 5 Enkeltdel til 2 Anvendte produkter 420
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Classifications

Approvals

ROHS
Conform

General ordering data

Versión
Z-series, End plate, Partition plate
Código
1649540000
Tipo
ZAP/TW ZIA1.5/3L
GTIN (EAN)
4008190295165
Qty.
50 Styk

Dimensions and weights

Profundidad
45,8 mm
Depth (inches)
1,803 inch
Altura
68 mm
Height (inches)
2,677 inch
Anchura
5,08 mm
Width (inches)
0,2 inch
Net weight
5,301 g

Temperatures

Temperatura de almacenamiento
-25 °C...55 °C
Omgivningstemperatur
-50 °C…75 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
120 °C

Environmental Product Compliance

Estado de cumplimiento de la directiva RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
제품 탄소 발자국
  • Cradle to gate:
    0.046 kg CO2eq.

Material data

Basic material
Wemid
Colour
dark beige
Classe d'infiammabilità UL 94
V-0

System specifications

Versione
End and intermediate plate
Mounting rail
TS 35

Additional technical data

Rodzaj zamocowania
Top-hat rail 35 mm
Snap-on
Yes
Wskazówka montażowa
Direct mounting

General

Carril de montaje
TS 35
Indicación de montaje
Direct mounting

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
