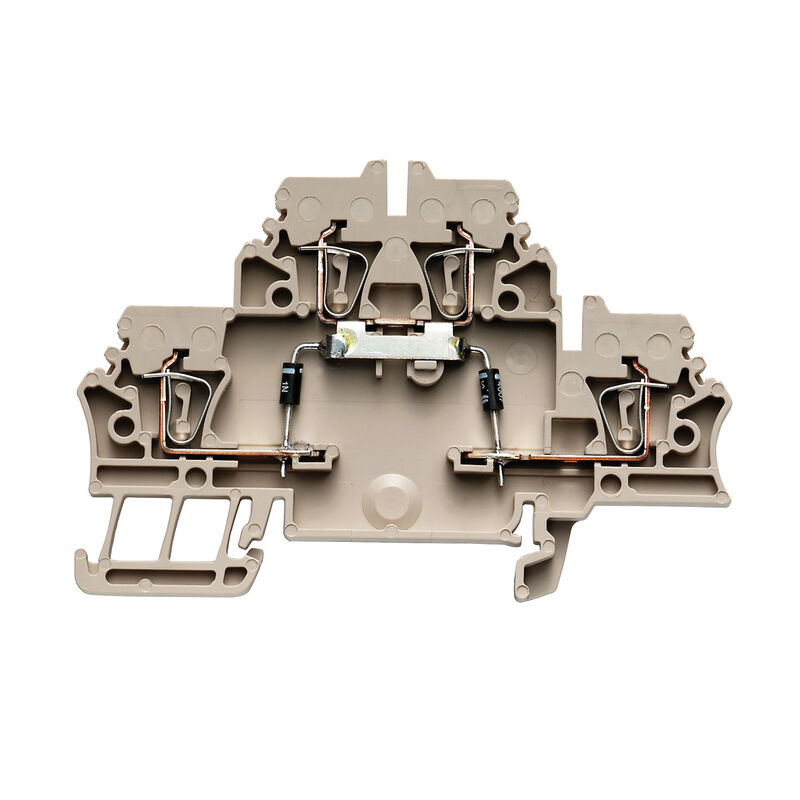

ZDK 2.5/D/5
Product image
ZDK 2.5/D/5
ZDK 2.5/D/5

ZDK 2.5/D/5

Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige

Tuotteen tunnus 1690050000
Lataa tietosivu Engineering Support Product Downloads
Lisävarusteet 36 Samankaltaiset tuotteet 12
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Component Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Dimensions General Rating data UL rating data Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E60693

General ordering data

Version
Z-series, Component terminal, Double-tier terminal, Rated cross-section: 2.5 mm², Tension-clamp connection, dark beige
Order No.
1690050000
Type
ZDK 2.5/D/5
GTIN (EAN)
4008190898885
Qty.
50  items

Dimensions and weights

Depth
53  mm
Depth (inches)
2,087  inch
Depth including DIN rail
54  mm
Height
79,1  mm
Height (inches)
3,114  inch
Width
5,1  mm
Width (inches)
0,201  inch
Net weight
10,02  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
−50  °C
Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7a
REACH SVHC
Lead 7439-92-1
SCIP
c6099607-b1cd-4fc8-8f5b-8c2defa73093

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Tension-clamp connection
for plug-in cross-connector
One end without connector
with diode
End cover plate required
Yes
Number of potentials
1
Number of levels
2
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
Yes
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Electronic component
Diode
Explosion-tested version
Yes
Open sides
right
Type of mounting
Snap-on

Component

Component diode
  • Type diode:
    1N4007
  • Forward current:
    1 A
  • Reverse voltage:
    1 300 V
  • Forward voltage:
    0,7 V

Conductors for clamping (additional connection)

Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
2,5  mm²

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
2,5  mm²
Clamping range, min.
0,05  mm²
Connection cross-section, finely stranded, min.
0,05  mm²
Connection cross-section, stranded, max.
2,5  mm²
Connection cross-section, stranded, min.
0,05  mm²
Connection direction
top
Gauge to IEC 60947-1
A2
Number of connections
4
Stripping length
10  mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • nominal:
      1 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
Twin wire-end ferrules, max.
0,34  mm²
Twin wire-end ferrules, min.
0,14  mm²
Type of connection
Tension-clamp connection
Type of connection 2
Tension-clamp connection
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 30
Wire connection cross section, finely stranded, max.
2,5  mm²
Wire connection cross section, finely stranded, min.
0,05  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,05  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,05  mm²
Wire connection cross-section, solid core, max.
2,5  mm²
Wire connection cross-section, solid core, min.
0,05  mm²

CSA rating data

Certificate No. (CSA)
80053378-200039
Conductor size Factory wiring max. (CSA)
12 AWG
Conductor size Factory wiring min. (CSA)
26 AWG
Conductor size Field wiring max. (CSA)
12 AWG
Conductor size Field wiring min. (CSA)
26 AWG

Dimensions

TS 35 offset
50  mm

General

Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 30

Rating data

Rated cross-section
2,5  mm²
Rated voltage
500  V
Rated DC voltage
500  V
Nominal current
0,5  A
Current at maximum wires
0,5  A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33  mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,77  W
Pollution severity
3

UL rating data

Certificate No. (UR)
E60693
Conductor size Factory wiring max. (UR)
14 AWG
Conductor size Factory wiring min. (UR)
26 AWG
Conductor size Field wiring max. (UR)
14 AWG
Conductor size Field wiring min. (UR)
26 AWG
Current size C (UR)
15 A
Voltage size C (UR)
300 V

Important note

Product information
The allowed continuous operating temperature must be observed

Classifications

ETIM 6.0
EC000903
ETIM 7.0
EC000903
ETIM 8.0
EC000903
ETIM 9.0
EC000903
ETIM 10.0
EC000903
ECLASS 9.0
27-14-11-27
ECLASS 9.1
27-14-11-47
ECLASS 10.0
27-14-11-27
ECLASS 11.0
27-14-11-27
ECLASS 12.0
27-14-11-27
ECLASS 13.0
27-25-01-14
ECLASS 14.0
27-25-01-14
ECLASS 15.0
27-25-01-14
