ALO 6
Product image
ALO 6
ALO 6

ALO 6

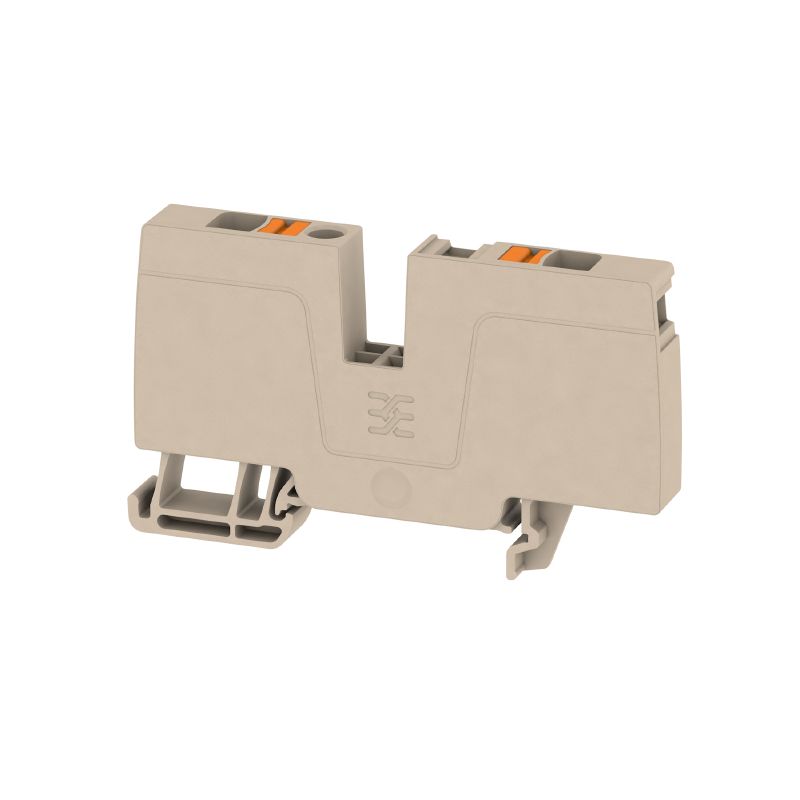

Supply terminal, PUSH IN, 6 mm², 800 V, 41 A, dark beige

Produkt ID 1991780000
Åbn i konfiguratoren
Download datablad Engineering-support Produktdownloads
Tilbehør 87 Anvendte produkter 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/2a4a8742-86e3-45cc-8b68-a2da67801c40/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/8761d6a8-633c-4aff-8793-97a5d2b0ca50/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/7849a070-6e16-4866-9b5a-c610b7f622e5/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/680ba583-8621-4d57-b79a-2859678ecdf9/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/cbf09862-97e9-475d-b71a-c6db1e3e9933/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/52b59257-358c-4bc4-9ea4-df407cebf157/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/35c2d189-508a-474d-b19d-eb9035fb9c7c/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/2fb608f0-c73d-4515-a7a5-878046a505f4/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Supply terminal, PUSH IN, 6 mm², 800 V, 41 A, dark beige
Order No.
1991780000
Type
ALO 6
GTIN (EAN)
4050118376470
Qté.
20 Styk

Dimensions and weights

Depth
45,5 mm
Depth (inches)
1,791 inch
Depth including DIN rail
46 mm
Height
77 mm
Height (inches)
3,031 inch
Width
9 mm
Width (inches)
0,354 inch
Net weight
20,054 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

Statut de conformité RoHS
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7909U
Certificat Nº (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Courant (ATEX)
33 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
33 A
Section max. du conducteur (IECEX)
6 mm²
Caracterización EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
Yes
Installation advice
Rail
Open sides
closed
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No

Conductors for clamping (additional connection)

Anschlussart, weiterer Anschluss
PUSH IN

Conductors for clamping (rated connection)

PUSH IN
Calibre selon 60 947-1
A5
Dimension de la lame
1.0 x 5.5 mm
Embouts doubles, max.
1,5 mm²
Embouts doubles, min.
0,5 mm²
Longueur de dénudage
12 mm
Longueur de tube pour embout avec collerette plastique DIN 46228/4
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      4 mm²
    • max.:
      6 mm²
Longueur de tube pour embout sans collerette plastique DIN 46228/1
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      6 mm²
    • max.:
      10 mm²
Longueur de tube pour embouts jumeaux
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      1 mm²
    • max.:
      1,5 mm²
Nombre de raccordements
2
Plage de serrage, max.
6 mm²
Plage de serrage, min.
0,34 mm²
Section de raccordement du conducteur, AWG, max.
AWG 8
Section de raccordement du conducteur, AWG, min.
AWG 22
Section de raccordement du conducteur, rigide, max.
6 mm²
Section de raccordement du conducteur, rigide, min.
0,34 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/1, max.
10 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/1, min.
0,34 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/4, max.
6 mm²
Section de raccordement du conducteur, souple avec embout DIN 46228/4, min.
0,34 mm²
Section de raccordement du conducteur, souple, max.
10 mm²
Section de raccordement du conducteur, souple, min.
0,34 mm²
Section de raccordement, semi-rigide, max.
10 mm²
Section de raccordement, semi-rigide, min.
0,34 mm²
Sens de raccordement
top

CSA rating data

Certificat Nº (CSA)
200039-70089609
Courant gr. B (CSA)
38 A
Courant gr. c (CSA)
38 A
Courant gr. D (CSA)
5 A
Section max. du conducteur (CSA)
8 AWG
Section min. du conducteur (CSA)
22 AWG
Tension Gr B (CSA)
600 V
Tension Gr C (CSA)
600 V
Tension Gr D (CSA)
600 V

General

Installation advice
Rail
Normen
IEC 60947-7-1
Průřez propojení AWG, min.
AWG 22
Tragschiene
TS 35
Wire connection cross section AWG, max.
AWG 8

Rating data

Rated cross-section
6 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
41 A
Current at maximum wires
41 A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3
Surge voltage category
III

UL rating data

B feszültség nagyság (cURus)
600 V
Conductor size Factory wiring min. (cURus)
22 AWG
Conductor size Field wiring max. (cURus)
8 AWG
Current size C (cURus)
38 A
Current size D (cURus)
5 A
D feszültség nagyság (cURus)
600 V
N° certificato (cURus)
E60693
Spänning grupp C (cURus)
600 V
Vezetékméret, gyári vezetékezés, max. (cURus)
8 AWG
Ток, класс B (cURus)
38 A
컨덕터 크기 필드 결선 최소(cURus)
22 AWG

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
