SAI-8-M 5P M12 OL2
SAI-8-M 5P M12 OL2
Abbildung ähnlich
SAI-8-M 5P M12 OL2

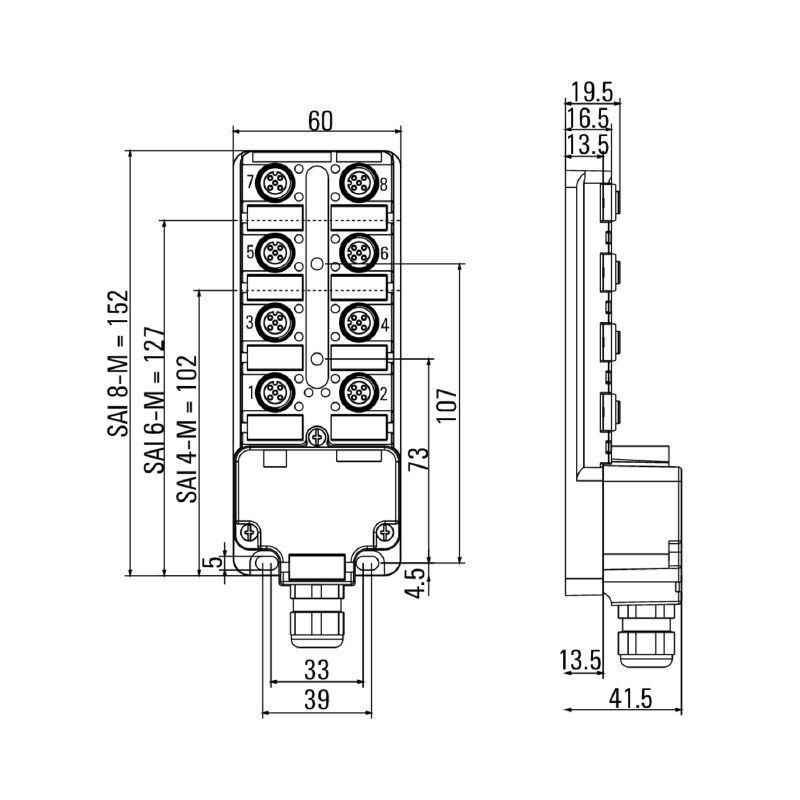

Maßzeichnung
SAI-8-M 5P M12 OL2
Schaltbild

SAI-8-M 5P M12 OL2

Hood distributor, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: PNP

Produkt ID 1816610000
Download datablad Engineering-support Produktdownloads
Tilbehør 3 Anvendte produkter 30
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Connection data Electrical data General technical data Material data Technical data cable Classifications

Approvals

ROHS
Conform

General ordering data

Version
Hood distributor, M12, 30 V, A-coded, LED: No, LED initiator: No, Wiring type: PNP
Order No.
1816610000
Type
SAI-8-M 5P M12 OL2
GTIN (EAN)
4032248308002
Qty.
1 Styk

Dimensions and weights

Depth
152 mm
Depth (inches)
5,984 inch
Height
41,5 mm
Height (inches)
1,634 inch
Width
60 mm
Width (inches)
2,362 inch
Net weight
270 g

Temperatures

Operating temperature
-20 - 90°C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Connection data

Ledarytterdiameter, min.
6 mm
Conductor O.D., max.
12 mm
Sheathing stripping length
100 mm
Cable gland
M 20
Anslutningsområde, min.
0,08 mm²
Anslutningsområde, max.
1,5 mm²
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section AWG, max.
AWG 14
Solid, min. H05(07) V-U
0,2 mm²
Solid, max. H05(07) V-U
1,5 mm²
Flexible, min. H05(07) V-K
0,2 mm²
Flexible, max. H05(07) V-K
1,5 mm²
w. plastic collar ferrule, DIN 46228 pt 4, min.
0,2 mm²
w. plastic collar ferrule, DIN 46228 pt 4, max.
1,5 mm²
w. wire end ferrule, DIN 46228 pt 1, min.
0,2 mm²
w. wire end ferrule, DIN 46228 pt 1, max.
1,5 mm²
Storage space
Standard
Distributor outlet
Hood distributor

Electrical data

Rated voltage, min.
10 V
Nennspannung, max.
30 V
Test voltage
1 kV
max. Strombelastbarkeit pro Steckplatz
4 A
Summenstrom
10 A
Current per signal
2 A
Electrical isolation available
Yes
Insulation resistance
109 Ω

General technical data

Codifica punto di innesto
A-coded
보호 등급
IP68
Numero di poli
5
Érintkező aljzatok száma
8
Rosca de conexión
M12
Pollution severity
3
Brandegenskaper
V-0
Stickcykler
≤ 50
LED
No
LED initiator
No

Material data

Hlavní materiál krytu
Pocan
Verteilermaterial
Plastic
Colore della custodia
grey, RAL 7032
Hood sealing material
Viton
Screw socket
Nickel-plated CuZn
Contact material
CuZn
Kontaktoberfläche
Gold-plated
Kontaktträgermaterial
PBT (UL 94 V0)

Technical data cable

Conductor O.D., min.
6 mm
Liczba biegunów
5
Zewnętrzna średnica przewodu, maks.
12 mm
케이블 캐리어에 적합
No

Classifications

ETIM 8.0
EC003558
ETIM 9.0
EC003558
ETIM 10.0
EC003558
ECLASS 14.0
27-44-01-11
ECLASS 15.0
27-44-01-11
