SAIL-M8BG-8-10U
SAIL-M8BG-8-10U
Dimensioned drawing
Straight socket
SAIL-M8BG-8-10U
Pole scheme
M12 = A-coded
SAIL-M8BG-8-10U
Wiring diagram

SAIL-M8BG-8-10U

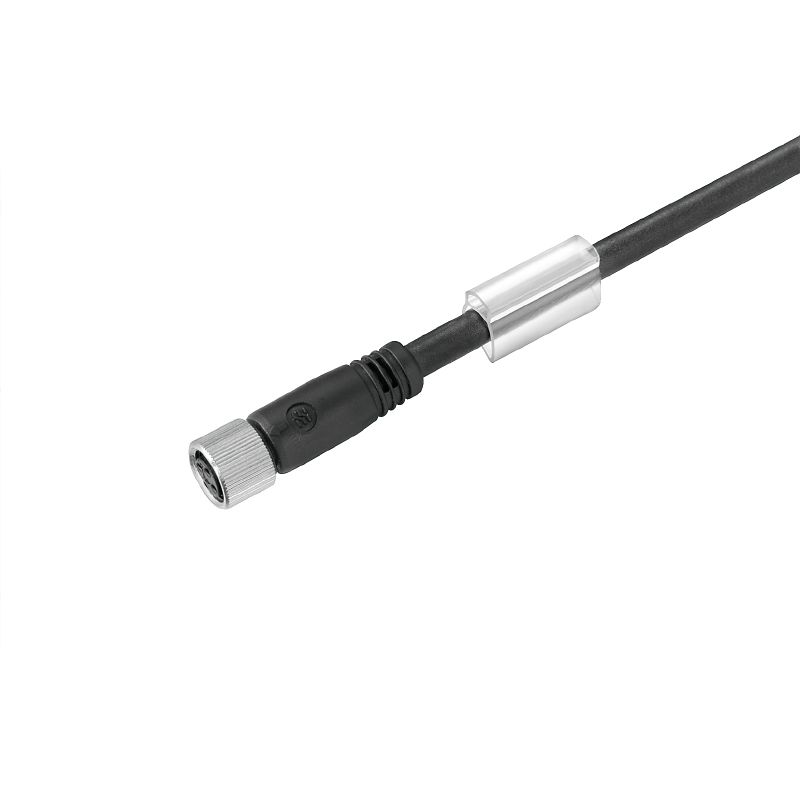

Sensor/actuator line, One end without connector, M8, Number of poles : 8, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No

Produkt ID 1555371000
Download datablad Produktdownloads
Tilbehør 6 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance Technical specifications for cable General technical data Electrical properties General standards Standards Plug, left Plug, right Product images Classifications

Approvals

Godkännanden
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/5855f480-81e6-48e1-aa53-1e87419df7ba/DAP_Master_ICON,w_80,q_80)
ROHS
Conform

General ordering data

Utförande
Sensor/actuator line, One end without connector, M8, Number of poles : 8, 10 m, Female socket, straight, Shielded: No, LED: No, Sheath material: PUR, Halogen: No
Art.nr.
1555371000
Typ
SAIL-M8BG-8-10U
GTIN (EAN)
4050118368758
Qty.
1 Styk

Dimensions and weights

Net weight
408,32 g

Environmental Product Compliance

RoHS-kompatibilitetsstatus
Compliant
REACH SVHC
Lead 7439-92-1
SCIP
ebf89fc8-a87f-4691-b87a-dfb9921774b4

Technical specifications for cable

PP
Aderquerschnitt
0,25 mm²
Beschleunigung
5 m/s²
Biegeradius min., bewegt
10 x cable diameter
Biegeradius, min., fest verlegt
5 x cable diameter
Biegezyklen
1 mill.
Campo delle temperature, posa fissa
-40...80 °C
Colour coding
blue
red
white
brown
green
yellow
grey
pink
Geschirmt
No
Geschwindigkeit
5 m/s
Halogene
No
Kabellänge
10 m
Konfigurierbare Kabellänge
No
Liczba biegunów
8
Mantel nach UL AWM style
20549 (80 °C / 300 V)
Mantelfarbe
black
Mantelmaterial
PUR
Núcleo de conformidad con el estilo UL AWM
10493 (80 °C / 300 V)
Resistencia a chispas de soldadura
No
Reticulado por radiación
No
Résistance à la torsion
180 °/m
Schleppkettentauglichkeit
Yes
Temperature range, moving
-25...80 °C
Średnica zewnętrzna
5.9 mm ± 0.2 mm
용접 비드 내성
No

General technical data

Anslutningsgänga
M8
Anslutningsvridmoment
M12: 0.8 - 1.2 Nm
bockad
No
Isolationsmotstånd
108 Ω
Kapslingsmaterial
PUR
Kodering
A-coded
Kontaktyta
Gold-plated
LED
No
Material låsring
Brass, nickel-plated
Märkström
2 A
Nedsmutsningsgrad
3
Nominell spänning
30 V
Skyddsklass
IP67
when screwed in
IP65
IP66
Stickcykler
≥ 100
Temperaturområde kapsling
-40 … +85 ° C
Utförande
Female socket, straight

Electrical properties

Märkström
2 A (8-pole) / 1.5 A (12-pole)
Nominell spänning
30 V
Сопротивление изоляции
108 Ω

General standards

Steckverbinder Norm
IEC 61076-2-104

Standards

Connector standard
IEC 61076-2-104

Plug, left

Stickkontakt vänster
M8, IP67, female contact, straight, Plastic, unshielded

Plug, right

Stickkontakt höger
free conductor end

Product images

Classifications

ETIM 8.0
EC001855
ETIM 9.0
EC001855
ETIM 10.0
EC001855
ECLASS 14.0
27-06-03-11
ECLASS 15.0
27-06-03-11
