CABTITE GI I BK
Similar to illustration
CABTITE GI I BK

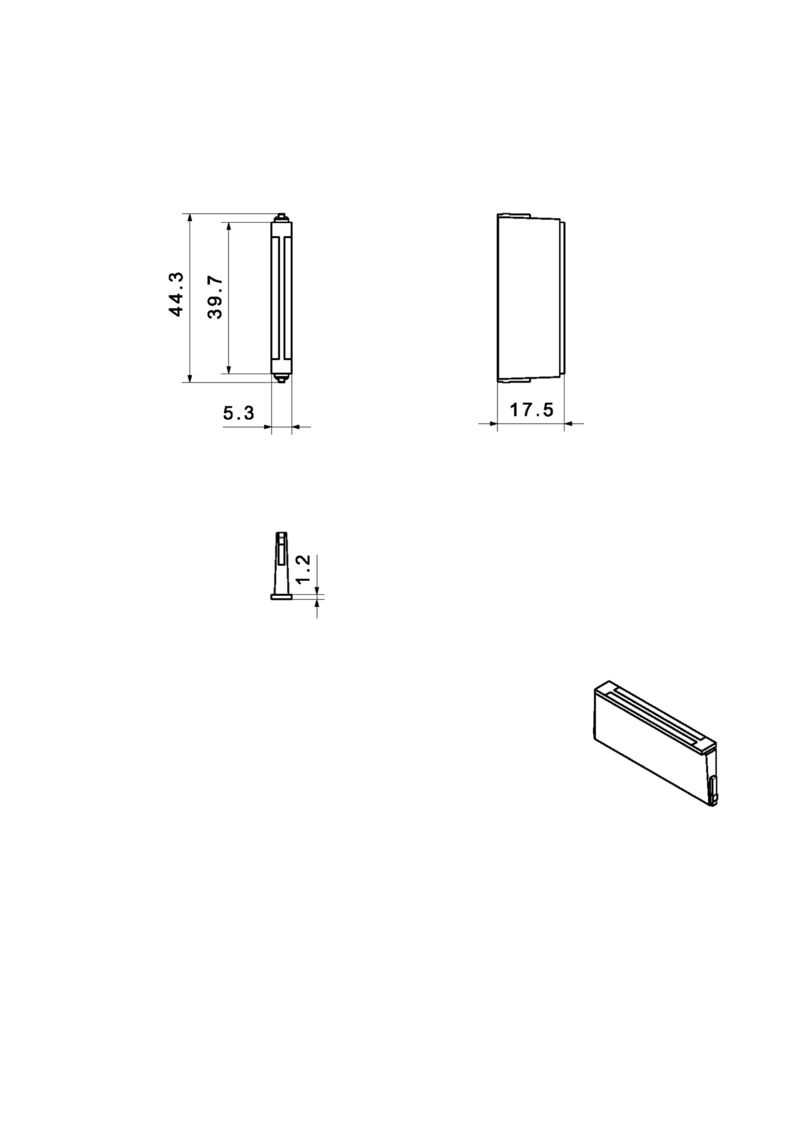

Dimensioned drawing

CABTITE GI I BK

Inserto, Cabtite (sistema di inserimento cavi), poliammide, rinforzato in fibra di vetro, Nero assoluto, Posizione verticale: 5 mm, Larghezza: 44 mm, Profondità: 17.5 mm, -40 °C…120 °C, IP66

Produkt ID 2584320000
Download datablad Engineering-support Produktdownloads
Er tilbehør til 1 Enkeltdel til 1 Anvendte produkter 4
承認 Általános rendelési adatok Dimensions et poids Temperatures Conformité environnementale du produit Všeobecné informace Classifications

承認

Approvals
![](https://assets.dam.weidmueller.com/assets/api/98e12ea5-58f4-450a-9983-f439987b3951/DAP_Master_ICON,w_80,q_80)
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223801

Általános rendelési adatok

Version
Inserto, Cabtite (sistema di inserimento cavi), poliammide, rinforzato in fibra di vetro, Nero assoluto, Posizione verticale: 5 mm, Larghezza: 44 mm, Profondità: 17.5 mm, -40 °C…120 °C, IP66
Order No.
2584320000
Type
CABTITE GI I BK
GTIN (EAN)
4050118616071
Qty.
5 Styk

Dimensions et poids

Depth
17,5 mm
깊이 (인치)
0,689 inch
Height
5 mm
Height (inches)
0,197 inch
Height of lowest version
17,5 mm
Width
44 mm
Width (inches)
1,732 inch
Net weight
2,7 g

Temperatures

Operating temperature
-40 °C...120 °C

Conformité environnementale du produit

RoHS Compliance Status
Conforme sans exemption
REACH SVHC
No SVHC above 0.1 wt%

Všeobecné informace

Basic material
Polyamid, vyztužený skelnými vlákny
Halogen
No
Protection degree
IP66
Sealing
TPE
Silicone
No
UL 94 flammability rating
V-0

Classifications

ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
