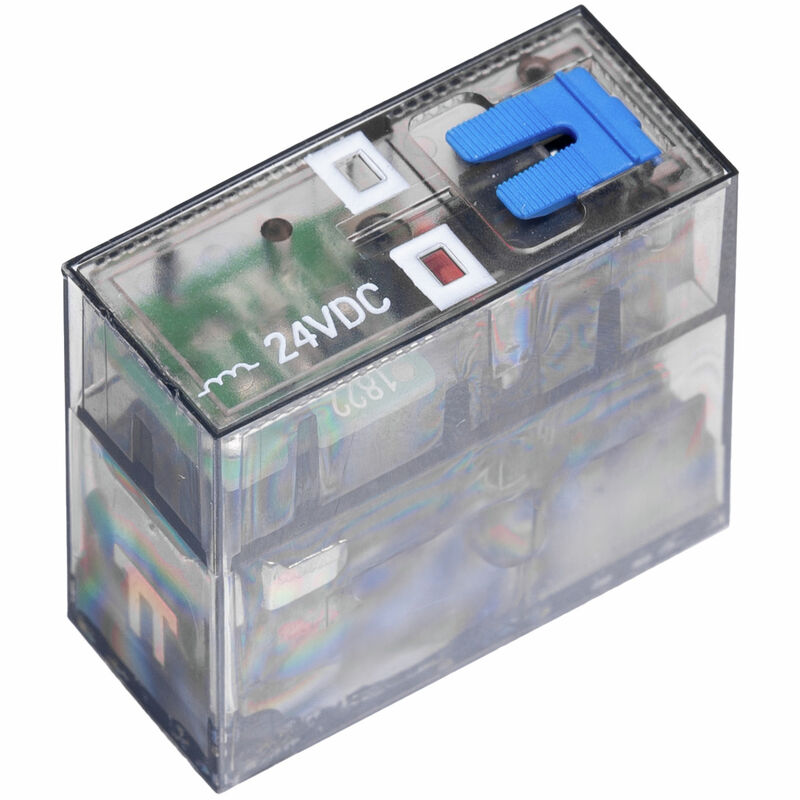

CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Plug-in connection, Test button available: Yes

Item No. 3052510000
Download data sheet Engineering Support Product Downloads
Accessories 20 Counterparts 2 Related products 7
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Rated data UL Control side Load side General data Insulation coordination Further details of approvals / standards Connection data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E223474

General ordering data

Version
CUBESERIES, Relay, Number of contacts: 2, CO contact AgNi, Rated control voltage: 24 V DC, Continuous current: 8 A, Plug-in connection, Test button available: Yes
Order No.
3052510000
Type
CRI20024T
GTIN (EAN)
4099987022347
Qty.
10 items

Dimensions and weights

Depth
25.5 mm
Depth (inches)
1.004 inch
Height
29 mm
Height (inches)
1.142 inch
Width
13 mm
Byggbredd (tum)
0.512 inch
Net weight
15 g

Temperatures

Storage temperature
-40 °C...70 °C
Ambient temperature
-40 °C…70 °C
Humidity
35…85 % RH (at ambient temperature)

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
7cI
REACH SVHC
No SVHC above 0.1 wt%

Rated data UL

Certificate No. (cURus)
E223474

Control side

Znamionowe napięcie sterowania
24 V DC
Rated current DC
16.7 mA
Potencia nominal
400 mW
Odpor cívky
1440 Ω ± 10 %
Status indicator
No

Load side

Nennschaltspannung
250 V AC
Continuous current
8 A
Макс. частота коммутации при номинальной нагрузке
0.1 Hz
Max. switching voltage, AC
250 V
Max. switching voltage, DC
250 V
Min. switching power
10 mA @ 12 V
100 mA @ 5 V
Intensidad de conexión
12 A / 20 ms
AC switching capacity (resistive), max.
2000 VA
DC switching capacity (resistive), max.
192 W @ 24 V
Bekapcsolási késleltetés
≤ 15 ms
Switch-off delay
≤ 8 ms
Contact type
2 CO contact (AgNi)
Mechanical service life
5 x 106 switching cycles

General data

Altitude de service
≤ 2000 m
above sea level
Test button available
Yes
Version of test button
Lockable test button
Momentary test button
Mechanical switch position indicator
Yes
Colour
Transparent
UL 94 flammability rating
V-2

Insulation coordination

Rated voltage
250 V
Pollution severity
3
Surge voltage category
III
Insulating material group
IIIa
Distanza in aria e superficiale lato comando/lato di carico
≥ 8 mm
Rigidità dielettrica lato comando - lato di carico
5 kVeff / 1min
Rigidité diélectrique des contacts voisins
2.5 kVeff / 1 Min.
Dielectric strength of open contact
1 kVeff / 1 min
Impulse withstand voltage
6 kV (1.2/50 µs)
Impulse withstand voltage at neighbouring contacts
4 kV (1.2/50 µs)

Further details of approvals / standards

Certificate No. (CSA)
607226-80220633
Certificate No. (VDE)
40057912
Certificate No. (cURus)
E223474

Connection data

Wire connection method
Plug-in connection
Pitch in mm (P)
5 mm

Classifications

ETIM 8.0
EC001437
ETIM 9.0
EC001437
ETIM 10.0
EC001437
ECLASS 14.0
27-37-16-01
ECLASS 15.0
27-37-16-01
