IE-PI-RJ45-TH
IE-PI-RJ45-TH
Dimensioned drawing

IE-PI-RJ45-TH

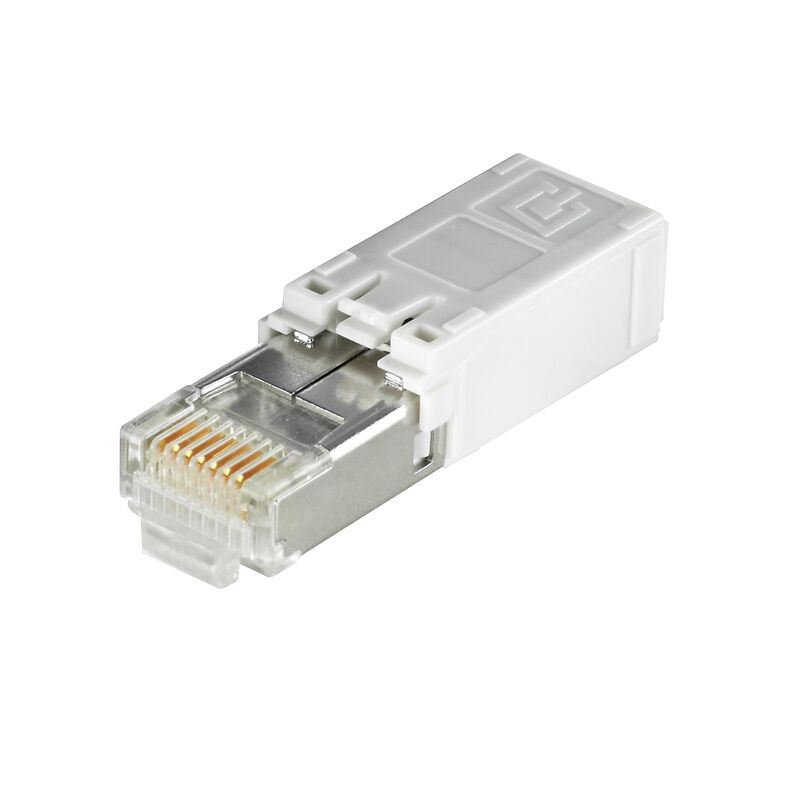

Plug insert RJ45 IDC, Plug insert RJ45, crimp

Tuotteen tunnus 1962720000
Lataa tietosivu Tekninen tuki Tuotelataukset
Lisävarusteet 1 On lisävaruste 8 Samankaltaiset tuotteet 10
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Electrical properties General standards Important note Classifications

Approvals

Approvals
![](https://assets.dam.weidmueller.com/assets/api/33feeb02-46e9-4a14-9d79-8ec5ee409fe3/DAP_Master_ICON,w_80,q_80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E316369

General ordering data

Version
Plug insert RJ45 IDC, Plug insert RJ45, crimp
Order No.
1962720000
Type
IE-PI-RJ45-TH
GTIN (EAN)
4032248644834
Qty.
10 items

Dimensions and weights

Net weight
9,62 g

Temperatures

Provozní teplota
-40 °C...70 °C
Humidity
0...93 % rel. humidity

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

1. csatlakozás
RJ45
Collegamento 2
IDC
Description of article
Plug insert RJ45, crimp
Colour
Miscellaneous
Shock resistance acc. to IEC 60512-6-3
250 ms-2
Vibration resistance acc. to IEC 60512-6-4
50 ms-2 sinusoidal (9…500 Hz)
Humidity
0...93 % rel. humidity
Housing main material
Brass
PC UL 94 V0
Insulation cross-section, min.
0,85 mm
Insulation cross-section, max.
1,05 mm
Category
Cat.6A / Class EA (ISO/IEC 11801 2010)
Contact material
Phosphorus bronze
Contact surface
Gold over Nickel, Au ≥ 0.8 µm, Ni 2.54 µm
Connection diameter, solid
0.4...0.51 mm
Conductor connection cross-section, solid (AWG)
AWG 26/1...AWG 24/1
Connection diameter, flexible
0.46...0.61 mm
Conductor connection cross-section, flexible (AWG)
AWG 27/7...AWG 24/7
Sheath diameter, min.
5 mm
Sheath diameter, max.
7,3 mm
Shielding
360° all-round enclosure
Protection degree
IP67 with housing
Plugging cycles
750

Electrical properties

Dielectric strength, contact / contact
≥ 1000 V AC/DC
Obciążalność przy temp. 50°C
1 A
PoE / PoE+
conforming to IEEE 802.3af
Resistencia de contacto
≤ 20 mΩ
Rigidité diélectrique, contact - blindage
≥ 1500 V AC/DC
절연 저항
500 MΩ

General standards

Certificate No. (cURus)
E316369
Connector standard
IEC 60603-7-51
Tipos de protección IP
IEC 60529
UL standard for communication accessories
UL 1863

Important note

Product information
RJ45 inserts for plug-in connectors ver.1 / 4 / 5 / 14 and HDC

Classifications

ETIM 8.0
EC001121
ETIM 9.0
EC001121
ETIM 10.0
EC001121
ECLASS 14.0
27-44-03-90
ECLASS 15.0
27-44-03-90
