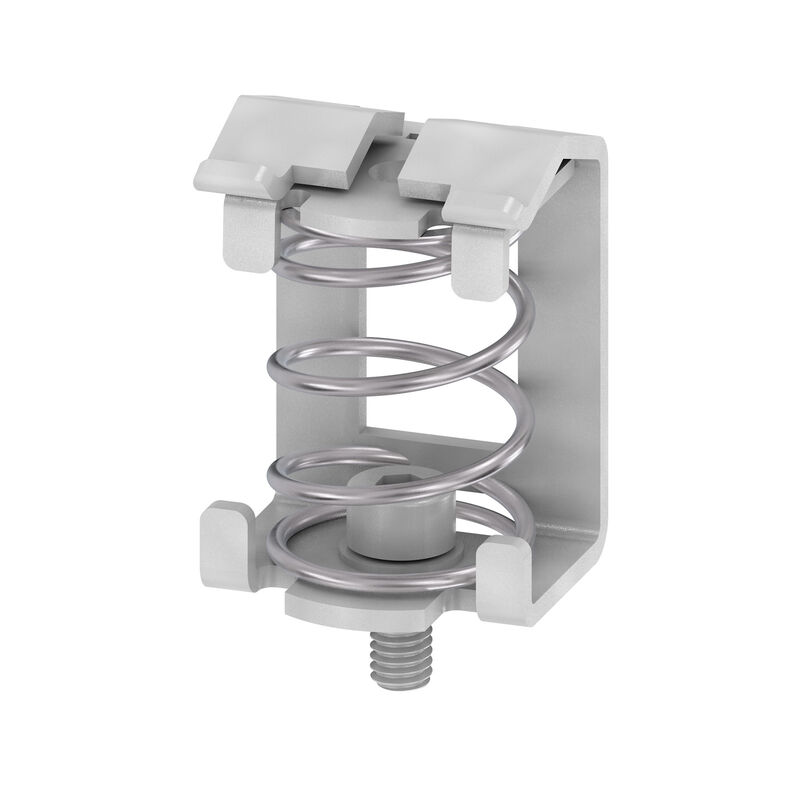

KLBUE 4-13.5 SC

KLBUE 4-13.5 SC

Clamping yoke, Clamping yoke for shield connection, Steel

Produkt ID 1712310050
Download datablad Engineering-support Produktdownloads
Anvendte produkter 44
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (rated connection) General Rating data Classifications

Approvals

ROHS
Conform

General ordering data

버전
Clamping yoke, Clamping yoke for shield connection, Steel
Código
1712310050
유형
KLBUE 4-13.5 SC
GTIN (EAN)
4032248007066
Qty.
50 Styk

Dimensions and weights

깊이
31,45 mm
Depth (inches)
1,238 inch
높이
22 mm
Height (inches)
0,866 inch
너비
20,1 mm
Width (inches)
0,791 inch
Mounting dimension - width
18,9 mm
Net weight
18,32 g

Temperatures

보관 온도
-25 °C...55 °C
주변 온도
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Product Carbon Footprint
  • Cradle to gate:
    0.107 kg CO2 eq.

Material data

Basic material
Steel
Colour
silver
UL 94 flammability rating
None

System specifications

Version
For a shield connection
End cover plate required
No
Mounting rail
Mounting plate

Additional technical data

Explosion-tested version
No
Installation advice
Direct mounting
Type of mounting
Screw

Conductors for clamping (rated connection)

Spring connection
Cable diameter, max.
13,5 mm
Cable diameter, min.
4 mm
Connection cross-section, stranded, max.
13,5 mm²
Connection cross-section, stranded, min.
4 mm²
Number of connections
1
탈피 길이
22 mm

General

설치 권고
Direct mounting
장착 레일
Mounting plate

Rating data

Rated cross-section
10 mm²

Classifications

ETIM 8.0
EC002020
ETIM 9.0
EC002020
ETIM 10.0
EC002020
ECLASS 14.0
27-25-01-20
ECLASS 15.0
27-25-01-20
