AP SAK2.5+AST3+4/35

AP SAK2.5+AST3+4/35

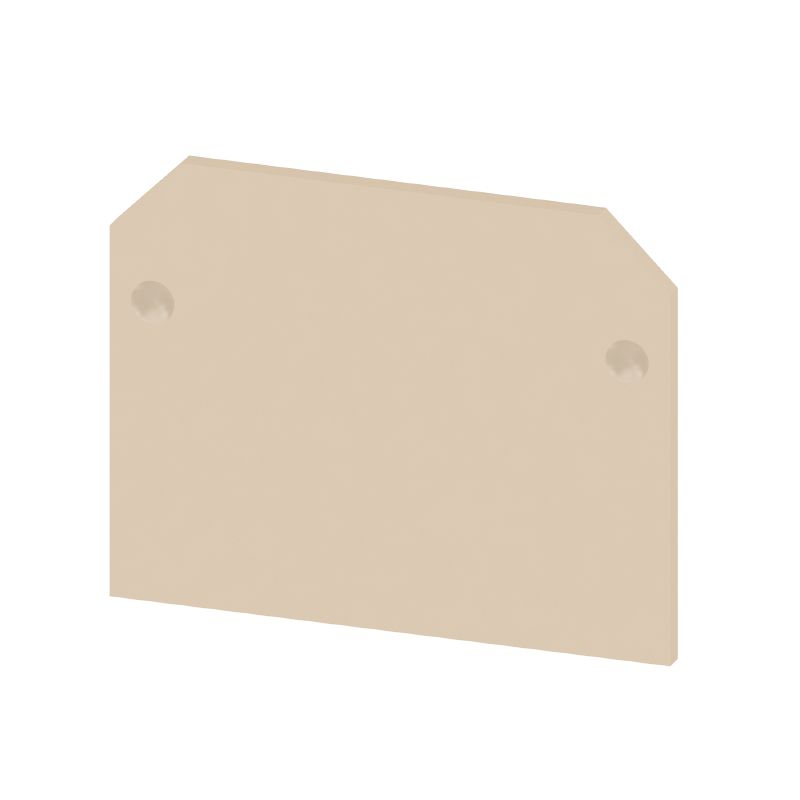

End plate for terminals, beige, Height: 39 mm, Width: 1.5 mm, V-2, PA 66, Snap-on: Yes

Item No. 0460560000
Download data sheet Product Downloads Engineering Support
Related products 426
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data General Product images Classifications

Approvals

ROHS
Conform

General ordering data

Version
End plate for terminals, beige, Height: 39 mm, Width: 1.5 mm, V-2, PA 66, Snap-on: Yes
Order No.
0460560000
Art
AP SAK2.5+AST3+4/35
GTIN (EAN)
4008190048334
Qty.
20 items

Dimensions and weights

Tiefe
31 mm
Depth (inches)
1,22 inch
Höhe
39 mm
Höhe (inch)
1,535 inch
Breite
1,5 mm
Width (inches)
0,059 inch
Net weight
2 g

Temperatures

Température de stockage
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50 °C
Continuous operating temp., max.
100 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%
Ślad węglowy produktu
  • Cradle to gate:
    0.047 kg CO2eq.

Material data

Основной материал
PA 66
Colour
beige
Klasa palności wg UL 94
V-2

System specifications

Wykonanie
End plate

Additional technical data

Monteringsanvisning
Direct mounting
с фиксатором
Yes

General

Istruzioni di montaggio
Direct mounting

Product images

Classifications

ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
