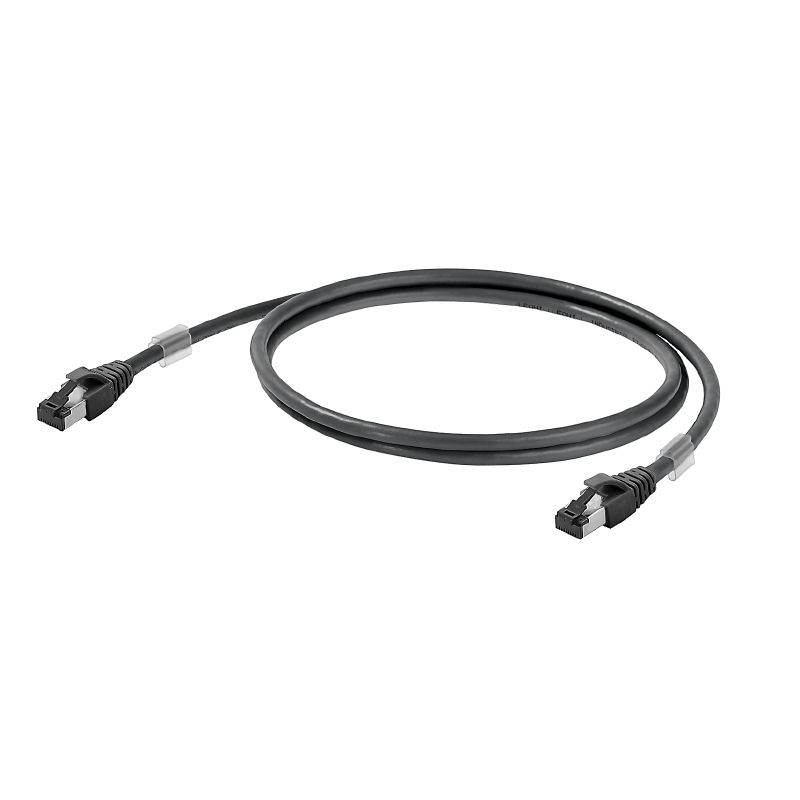

Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 0.5 m

N. articolo 1251610005
Download foglio dati Engineering Support Product Downloads
Tilbehør 2 Anvendte produkter 17
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Elektrische Eigenschaften General standards Standards Cable structure Electrical properties of cable Mechanical and material properties of cable Spina di collegamento 플러그, 좌 Plug, right Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319218/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319228/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate no. (cULus)
E316369

General ordering data

Version
Patch cable, RJ45 IP 20, RJ45 IP 20, <20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010), LSZH, 0.5 m
Order No.
1251610005
Type
IE-C6FP8LE0005M40M40-E
GTIN (EAN)
4050118042986
Qty.
1 Styk

Dimensions and weights

Length
0,5 m
Length (inches)
19,685 inch
Net weight
29 g

Temperatures

Storage temperature
-20 °C...60 °C
Operating temperature
-20 °C...60 °C
Installation temperature
0 °C...50 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Elektrische Eigenschaften

Current-carrying capacity at 50 °C
1 A
PoE / PoE+
согласно IEEE 802.3at

General standards

Application-specific communication cable facilities
ANSI / TIA / EIA-568-B.2-10
ISO / IEC 11801:2002
EN50173-1:2007
Certificate no. (cULus)
E316369
Connector standard
IEC 60603-7-51

Standards

Connector standard
IEC 60603-7-51

Cable structure

Apantallamiento total
Shielding braid made from copper wiring
Arrangement of wire cores
Twisted pair
Cross-section
4*2*AWG 27/7 - 4*2*0,1 mm²
Insulation
PE
Insulation cross-section
1,04 mm
Manteldurchmesser, min.
5,5 mm
Material sheath
LSZH
Number of wires
8
Průměr pláště, max.
5,9 mm
Sequenza cromatica –fili - coppie di fili
white - blue, white - orange, white - green, white - brown
Sheathing colour
black
Shielding
S/FTP
Strands
7
Wire pair shielding
Aluminium foil
Árnyékoló fonat átfedése
60 %

Electrical properties of cable

1 kHz에서 용량
46 nF/km
Categoria
<20 m: Cat.6A / >20 m Class EA (ISO/IEC 11801 2010)
Characteristic impedance
100 ± 15 Ω at 1–100 MHz
Coupling resistance at 10 MHz / m
5 mΩ
Driftspänning (UL-märkning)
30 V AC / 42.4 V DC
EN 50174-2 규격 분리 등급
d
Smorzamento di accoppiamento fino a 1000 MHz
80 dB
Tensione d'esercizio
50 V DC
Velocità di trasmissione
10 Gbit/s
Задержка наклона
2,5 ns/100m
Испытательное напряжение: провод–провод–экран
2.5 kV / DC for 2 sec
Разность сопротивления
5 %

Mechanical and material properties of cable

Colour
black
Halogen
halogen-free, according to IEC 60754-2
Min. bending radius, once only
4 x diametro cavo
Resistance to spread of flame
in accordance with IEC 60332-2-2
in accordance with IEC 60332-1-2
in accordance with IEC 60332-3-24
in accordance with UL 2556 (FT1)

Spina di collegamento

Plug left
RJ45, IP20, 수형 접점, 직선, 플러그, 플라스틱, 차폐
Plug right
RJ45, IP20, штыревой контакт, прямой, штекер, Пластмасса, экранированный

플러그, 좌

Plug left
RJ45, IP20, male contact, straight, plug, Plastic, shielded

Plug, right

Plug right
RJ45, IP20, styk męski, prosty, wtyk, Tworzywo sztuczne, Ekranowane

Classifications

ETIM 8.0
EC002599
ETIM 9.0
EC002599
ETIM 10.0
EC002599
ECLASS 14.0
27-06-03-08
ECLASS 15.0
27-06-03-08
