ZQV 2.5N/20 RD

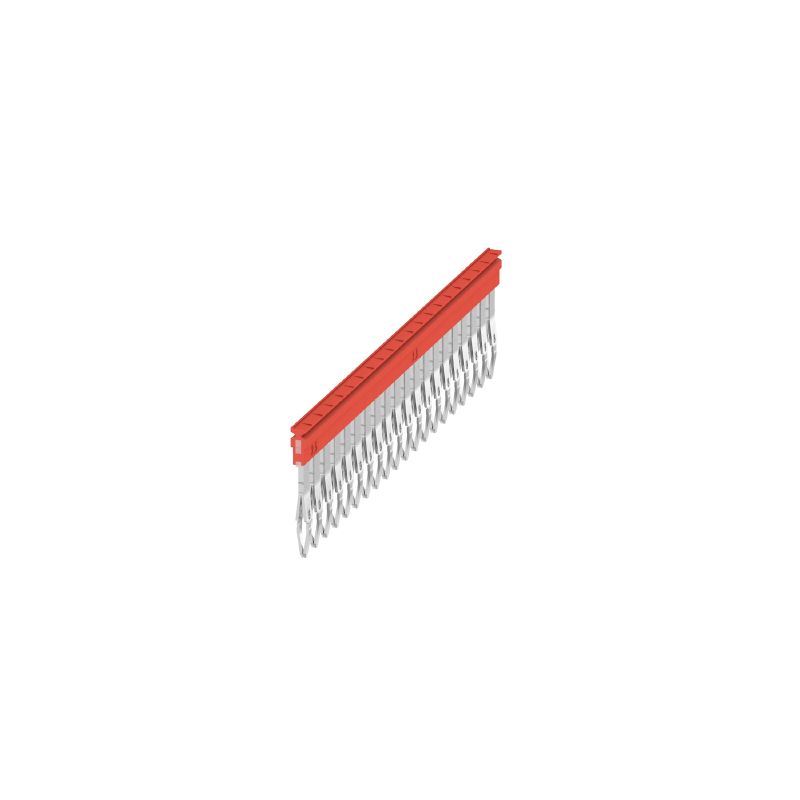

Product image

ZQV 2.5N/20 RD

Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 20, Pitch in mm (P): 5.10, Insulated: Yes, Width: 102 mm

Produkt ID 2108920000
Download datablad Engineering Support Product Downloads
Er tilbehør til 426 Anvendte produkter 55
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Additional technical data Dimensions General Rating data Important note Classifications

Approvals

ROHS
Conform

General ordering data

Version
Cross-connector (terminal), Plugged, red, 24 A, Number of poles: 20, Pitch in mm (P): 5.10, Insulated: Yes, Width: 102 mm
Order No.
2108920000
Type
ZQV 2.5N/20 RD
GTIN (EAN)
4050118485899
Qty.
20  Styk

Dimensions and weights

Depth
24,7  mm
Depth (inches)
0,972  inch
Height
2,8  mm
Height (inches)
0,11  inch
Width
102  mm
Width (inches)
4,016  inch
Net weight
11,95  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
130  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
red
UL 94 flammability rating
V-0

Additional technical data

Explosion-tested version
No
Type of fixing
Plugged
Type of mounting
Direct mounting

Dimensions

Pitch in mm (P)
5,1  mm

General

Number of poles
20

Rating data

Rated voltage
400  V
Nominal current
24  A

Important note

Product information
Due to stability and temperature reasons It is only possible to break out 60% of contact elements The usage of cross connectors reduces the rated voltage to 400VThe voltage reduced to 25V if cut cross connection with blank cut edges are used

Classifications

ETIM 6.0
EC000489
ETIM 7.0
EC000489
ETIM 8.0
EC000489
ETIM 9.0
EC000489
ETIM 10.0
EC000489
ECLASS 9.0
27-14-11-40
ECLASS 9.1
27-14-11-40
ECLASS 10.0
27-14-11-40
ECLASS 11.0
27-14-11-40
ECLASS 12.0
27-14-11-40
ECLASS 13.0
27-25-03-03
ECLASS 14.0
27-25-03-03
ECLASS 15.0
27-25-03-03
