APGSR 2.5/4

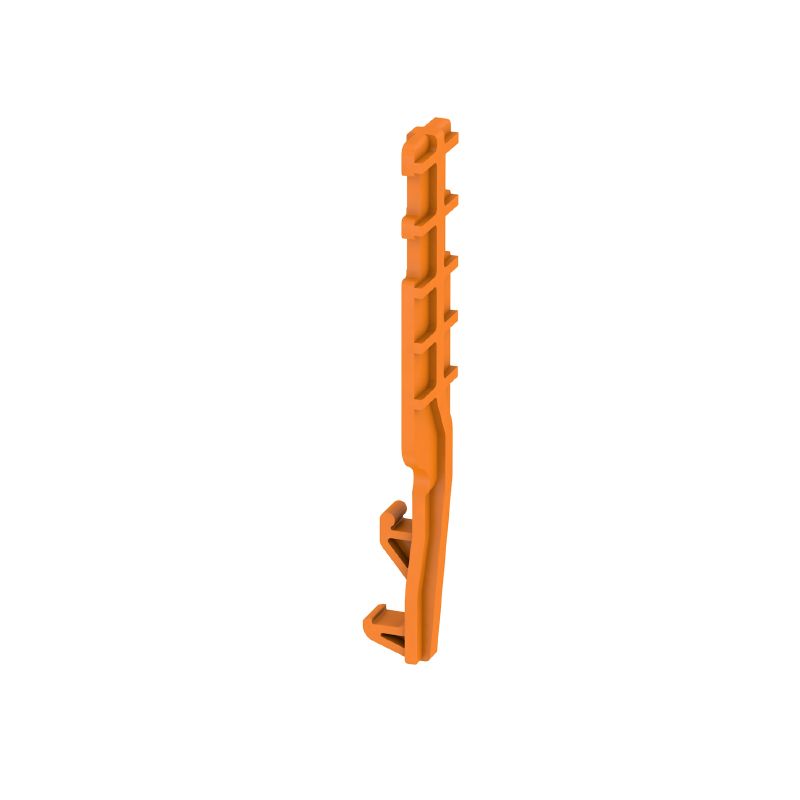

Product image
APGSR 2.5/4

APGSR 2.5/4

Strain relief (terminal), Wemid, orange

Ürün No. 2457580000
Veri sayfasını indir Engineering Support Product Downloads
aksesuarıdır 98 İlgili ürünler 6
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Classifications Approvals

General ordering data

Version
Strain relief (terminal), Wemid, orange
Order No.
2457580000
Type
APGSR 2.5/4
GTIN (EAN)
4050118472998
Qty.
25  adet

Dimensions and weights

Depth
53  mm
Depth (inches)
2,087  inch
Height
7,87  mm
Height (inches)
0,31  inch
Width
9,9  mm
Width (inches)
0,39  inch
Net weight
0,986  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
130  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material
Wemid
Colour
orange

Classifications

ETIM 6.0
EC002848
ETIM 7.0
EC002848
ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 9.0
27-14-11-92
ECLASS 9.1
27-14-11-92
ECLASS 10.0
27-14-11-92
ECLASS 11.0
27-14-11-92
ECLASS 12.0
27-14-11-92
ECLASS 13.0
27-25-03-90
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90

Approvals

ROHS
Conform
