AWPD 35 4X10
AWPD 35 4X10

AWPD 35 4X10

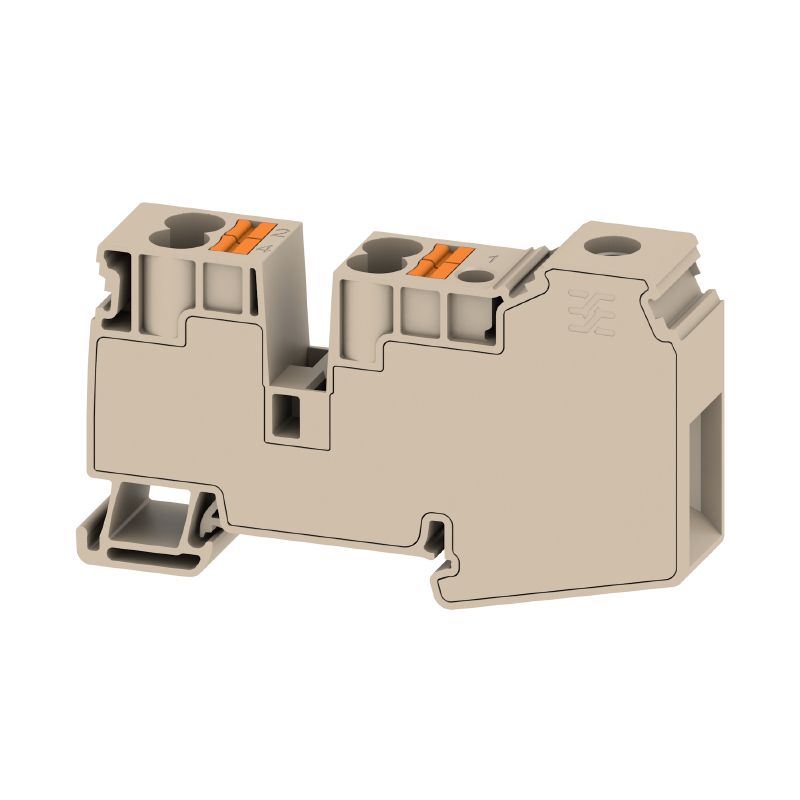

Potential distributor terminal, Screw connection, dark beige, 35 mm², 110 A, 1000 V, Number of connections: 5, Number of levels: 1

Item No. 2728630000
Download data sheet Engineering Support Product Downloads
Accessories 112 Related products 6
General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Rating data UL rating data Classifications Approvals

General ordering data

Version
Potential distributor terminal, Screw connection, dark beige, 35 mm², 110 A, 1000 V, Number of connections: 5, Number of levels: 1
Order No.
2728630000
Type
AWPD 35 4X10
GTIN (EAN)
4050118801118
Qty.
20  items

Dimensions and weights

Depth
51.6  mm
Depth (inches)
2.031  inch
Height
86.18  mm
Height (inches)
3.393  inch
Width
16.2  mm
Width (inches)
0.638  inch
Net weight
40  g

Temperatures

Storage temperature
-25 °C...55 °C
Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
110  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

Version
Hybrid terminal
Potential distributor
End cover plate required
No
Number of potentials
1
Number of levels
1
Number of clamping points per level
5
Number of potentials per tier
1
Levels cross-connected internally
No
Rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
closed
Snap-on
Yes
Type of mounting
TS 35

Conductors for clamping (additional connection)

Blade size, additional connection
1.0 x 5.5 mm
Clamping range, further connection, max.
10  mm²
Clamping range, further connection, min.
0.5  mm²
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, max.
10  mm²
Conductor cross-section, flexible plus plastic collar DIN 46228/1, further connection, min.
0.5  mm²
Conductor cross-section, flexible, further connection, min.
0.5  mm²
Connection direction
top
Connection type, additional connection
PUSH IN
Cross-section for connected wire, AWG, additional connection, max.
AWG 10
Cross-section for connected wire, AWG, additional connection, min.
AWG 20
Cross-section for connected wire, flexible, further connection, max.
10  mm²
Cross-section for connected wire, multi-core, further connection, max.
10  mm²
Cross-section for connected wire, multi-core, further connection, min.
0.5  mm²
Cross-section for connected wire, solid-core, further connection, max.
0.5  mm²
Cross-section for connected wire, solid-core, further connection, min.
0.5  mm²
Number of connections, additional connection
4
Rated cross-section, further connection
6  mm²
Stripping length , additional connection
18  mm

Conductors for clamping (rated connection)

Blade size
1 x 5.5
Clamping range, max.
35  mm²
Clamping range, min.
1.5  mm²
Clamping screw
M 6
Connection cross-section, stranded, max.
35  mm²
Connection direction
top
Gauge to IEC 60947-1
B9
Number of connections
5
Stripping length
17  mm
Tightening torque, max.
2.5  Nm
Tightening torque, min.
2.5  Nm
Twin wire-end ferrules, max.
6  mm²
Twin wire-end ferrules, min.
1.5  mm²
Type of connection
Screw connection
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 2
Wire connection cross section, finely stranded, max.
35  mm²
Wire connection cross section, finely stranded, min.
1.5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
35  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
1.5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
35  mm²
Wire connection cross-section, solid core, max.
35  mm²
Wire connection cross-section, solid core, min.
1.5  mm²

General

Rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 2

Rating data

Rated cross-section
35  mm²
Rated voltage
1,000  V
Rated AC voltage
1,000  V
Rated DC voltage
1,000  V
Rated current
110  A
Current at maximum wires
110  A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
0.26  mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
4  W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
2 AWG
Conductor size Factory wiring min. (cURus)
14 AWG
Conductor size Field wiring max. (cURus)
2 AWG
Conductor size Field wiring min. (cURus)
14 AWG

Classifications

ETIM 6.0
EC000897
ETIM 7.0
EC000897
ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 9.0
27-14-11-20
ECLASS 9.1
27-14-11-20
ECLASS 10.0
27-14-11-20
ECLASS 11.0
27-14-11-20
ECLASS 12.0
27-14-11-20
ECLASS 13.0
27-25-01-19
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
