DG M16 PT6

DG M16 PT6

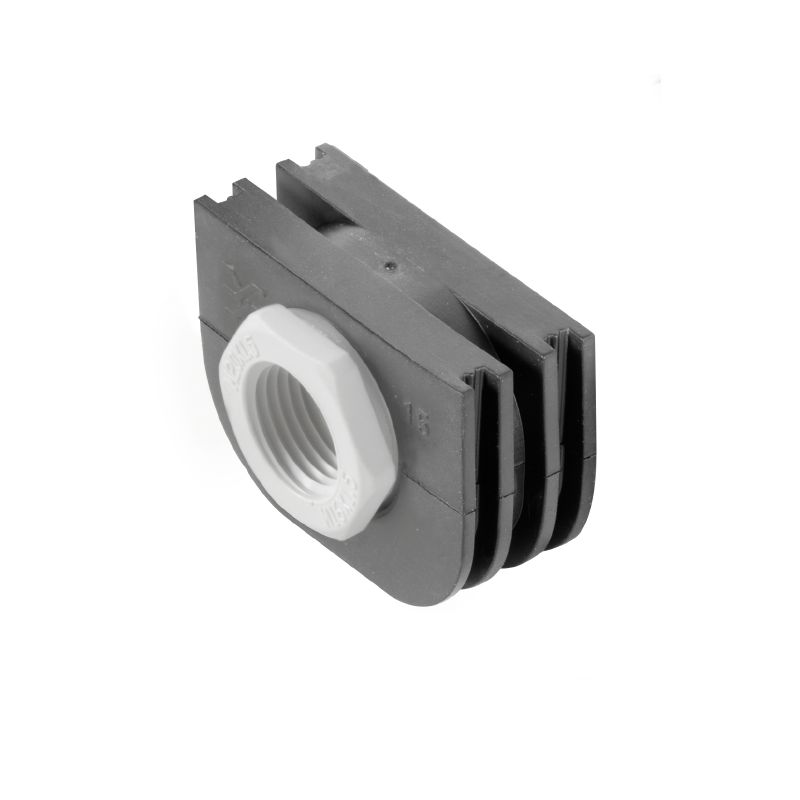

Field Power® sealing insert, Seal with connection thread, IP65, with corresponding enclosure, EPDM

Ürün No. 2545540000
Veri sayfasını indir Engineering Support Product Downloads
Aksesuarlar 7 aksesuarıdır 41 Münferit parçaları 4 İlgili ürünler 15
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Field Power® sealing insert, Seal with connection thread, IP65, with corresponding enclosure, EPDM
Order No.
2545540000
Type
DG M16 PT6
GTIN (EAN)
4050118555523
Qty.
1  adet

Dimensions and weights

Depth
25  mm
Depth (inches)
0,984  inch
Height
33,8  mm
Height (inches)
1,331  inch
Width
46,7  mm
Width (inches)
1,839  inch
Net weight
23,01  g

Temperatures

Storage temperature
-40 °C...85 °C
Operating temperature
-40 °C...85 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General data

Material
EPDM
Silicone
No
Colour
black
Design
Seal with connection thread
Protection degree
IP65
with corresponding enclosure
UL 94 flammability rating
HB
Mounting position, installation notice
in FieldPower® sealing slot
Internal thread
M 16
Version
Threaded adapter M16

Classifications

ETIM 6.0
EC002624
ETIM 7.0
EC002624
ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 9.1
27-18-27-90
ECLASS 10.0
27-18-28-15
ECLASS 11.0
27-18-28-15
ECLASS 12.0
27-18-28-15
ECLASS 13.0
27-18-28-15
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
