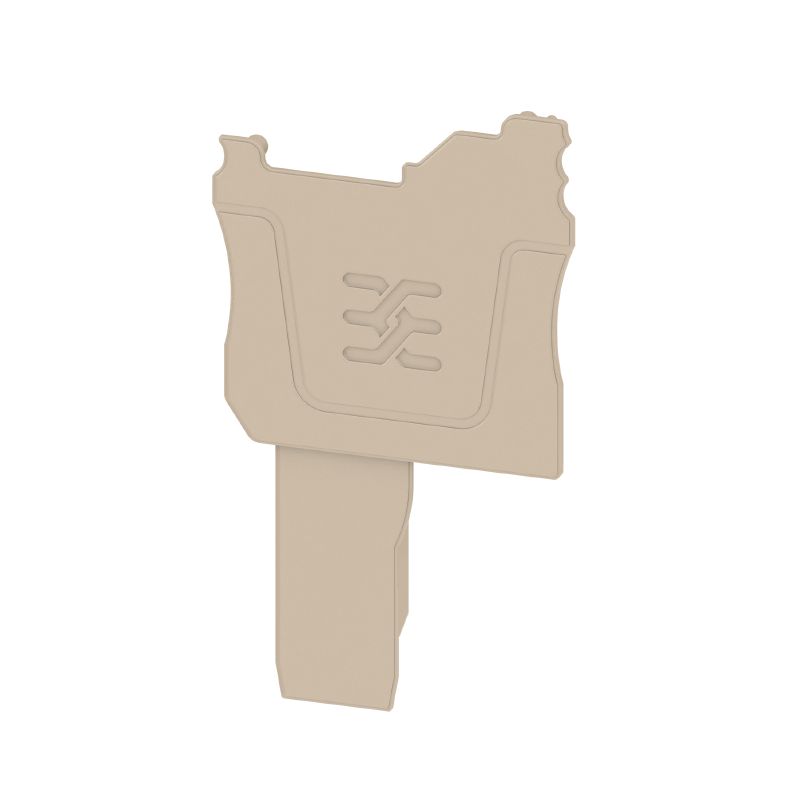

MCV APG 6

MCV APG 6

A-series, End plate

Item No. 2762380000
Download data sheet Engineering Support
Is accessory of 16 Related products 4
General ordering data Dimensions and weights Temperatures Material data Classifications

General ordering data

Version
A-series, End plate
Order No.
2762380000
Type
MCV APG 6
GTIN (EAN)
4064675021384
Qty.
50  items

Dimensions and weights

Depth
41.8  mm
Depth (inches)
1.646  inch
Height
24.3  mm
Height (inches)
0.957  inch
Width
2.45  mm
Width (inches)
0.096  inch
Net weight
1  g

Temperatures

Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
130  °C

Material data

Basic material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

Classifications

ETIM 6.0
EC000886
ETIM 7.0
EC000886
ETIM 8.0
EC000886
ETIM 9.0
EC000886
ETIM 10.0
EC000886
ECLASS 9.1
27-14-11-33
ECLASS 10.0
27-14-11-33
ECLASS 11.0
27-14-11-33
ECLASS 12.0
27-14-11-33
ECLASS 13.0
27-25-03-01
ECLASS 14.0
27-25-03-01
ECLASS 15.0
27-25-03-01
