A3C 2.5 BR

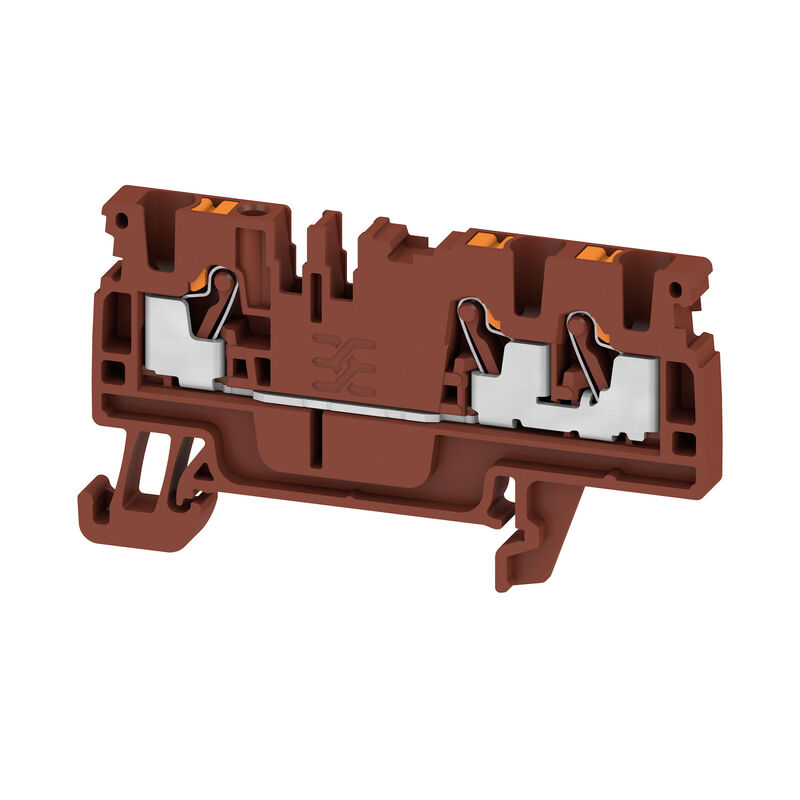

Product image

A3C 2.5 BR

Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, brown

Product ID 2534730000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 89 Verwante producten 1078
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319231/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319246/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693
Certificate No. (cURusEX)
E184763

General ordering data

Version
Feed-through terminal, PUSH IN, 2.5 mm², 800 V, 24 A, brown
Order No.
2534730000
Type
A3C 2.5 BR
GTIN (EAN)
4050118546323
Qty.
100 items

Dimensions and weights

Depth
36,5 mm
Depth (inches)
1,437 inch
Depth including DIN rail
37 mm
Height
66,5 mm
Height (inches)
2,618 inch
Width
5,1 mm
Width (inches)
0,201 inch
Net weight
8,031 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
brown
Colour of operational elements
orange
Grado inflamabilidad según UL 94
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7909U
Certificate No. (IECEX)
IECEXTUR16.0036U
Max. voltage (ATEX)
550 V
Current (ATEX)
21 A
Wire cross section max. (ATEX)
2.5 mm²
Max. voltage (IECEX)
550 V
Current (IECEX)
21 A
Wire cross section max. (IECEX)
2.5 mm²
Marking EN 60079-7
Ex eb II C Gb
Ex 2014/34/EU label
II 2 G D

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
3
Pisos internos puenteados
No
Укомплектованная монтажная рейка
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

con espiga de sujeción
No
Esecuzione a prova di esplosione
Yes
Lados abiertos
right
Snap-on
No
Telepítési útmutató
Rail
Type de fixation
Snap-on
장착 유형
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

4 mm²
Blade size
0.6 x 3.5 mm
Clamping range, min.
0,14 mm²
Connection cross-section, finely stranded, min.
0,14 mm²
Connection cross-section, stranded, max.
4 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
3
Stripping length
10 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      0,75 mm²
Tube length for twin wire-end ferrule acc. to cross-section
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar acc. to cross-section
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    8 mm
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    12 mm
  • Tube length, min.:
    8 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      6 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      0,14 mm²
    • max.:
      0,34 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
Tube length for wire-end ferrule without plastic collar acc. to cross-section
  • Tube length, min.:
    5 mm
  • Tube length, max.:
    5 mm
  • Tube length, min.:
    6 mm
  • Tube length, max.:
    10 mm
  • Tube length, min.:
    7 mm
  • Tube length, max.:
    12 mm
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      4 mm²
Twin wire-end ferrules, max.
0,75 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
2,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
600 V
Voltage size C (CSA)
600 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG

General

Installation advice
Rail
Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28

Rating data

Rated cross-section
2,5 mm²
Rated voltage
800 V
Rated DC voltage
800 V
Nominal current
24 A
Current at maximum wires
24 A
Normer
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33 mΩ
Rated impulse withstand voltage
8 kV
Power loss in accordance with IEC 60947-7-x
0,77 W
Categoría de sobretensión
III
Grado de polución
3

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Corriente Gr B (cURus)
20 A
Corriente Gr C (cURus)
20 A
Corriente Gr D (cURus)
5 A
Sección del conductor Cableado de campo máx. (cURus)
12 AWG
Sección del conductor Cableado de fábrica mín. (cURus)
28 AWG
Spannung Gr D (cURus)
600 V
Tensión Gr C (cURus)
600 V
Voltage size B (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-01
ECLASS 15.0
27-25-01-01
