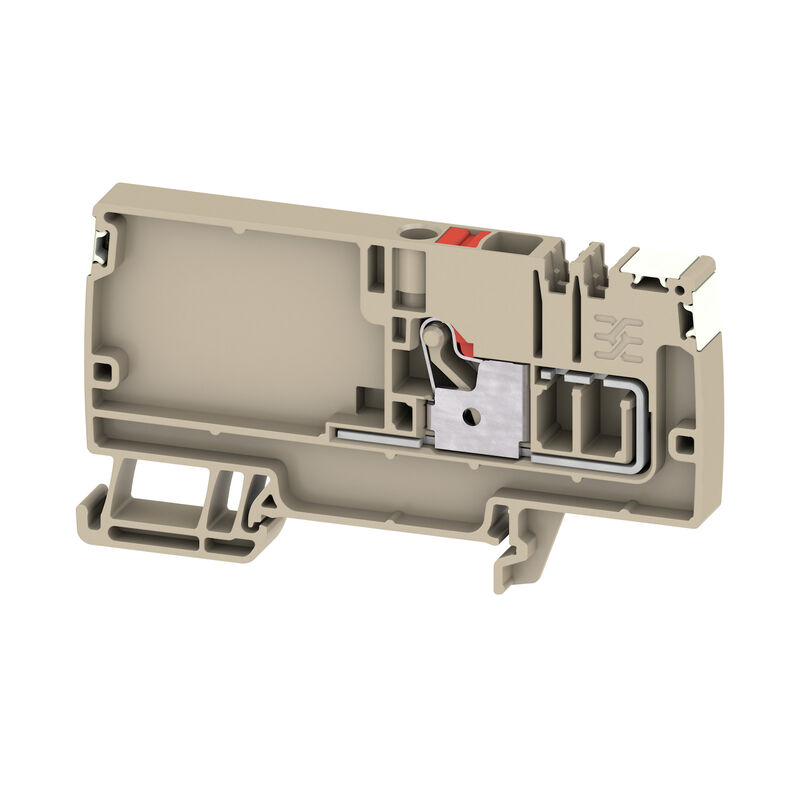

Einspeiseklemme, PUSH IN, 6 mm², 500 V, 41 A, dunkelbeige

Nr. produktu 2675320000
Otwórz w konfiguratorze
Pobierz kartę katalogową Wsparcie inżynieryjne Pobieranie produktów
Akcesoria 87 Produkty pokrewne 33
Approvals Allgemeine Bestelldaten Dimensions and weights Temperaturen Umweltanforderungen Údaje materiálu Údaje hodnocení IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) General Bemessungsdaten Clasificaciones

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319246/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conforme

Allgemeine Bestelldaten

Version
Einspeiseklemme, PUSH IN, 6 mm², 500 V, 41 A, dunkelbeige
Order No.
2675320000
Type
AAP11 6 LO DL BL
GTIN (EAN)
4050118733686
Qty.
20 szt.

Dimensions and weights

Depth
48 mm
Depth (inches)
1,89 inch
Depth including DIN rail
48 mm
Height
85,5 mm
Altura (pulgadas)
3,366 inch
Width
8,1 mm
Szélesség (coll)
0,319 inch
Net weight
17 g

Temperaturen

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
długotrwała temperatura użytkowa, min.
-60 °C
długotrwała temperatura użytkowa, maks.
130 °C

Umweltanforderungen

RoHS Compliance Status
Konform ohne Ausnahme
REACH SVHC
Pas de SVHC au-dessus de 0,1 % en poids

Údaje materiálu

Basic material
Wemid
Colour
Ciemnobeżowy
Colour of operational elements
niebieski
UL 94 flammability rating
V-0

Údaje hodnocení IECEx/ATEX

Certificate No. (ATEX)
TUEV17ATEX8030U
Certificate No. (IECEX)
IECEXTUR17.0015U
Max. voltage (ATEX)
550 V
Current (ATEX)
33 A
Wire cross section max. (ATEX)
6 mm²
Max. voltage (IECEX)
550 V
Prąd (IECEX)
33 A
Wire cross section max. (IECEX)
6 mm²
Marking EN 60079-7
Ex ec II C Gc
Etykieta Ex 2014/34/WE
II 2 G D

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
liczba zacisków na poziom
1
Number of potentials per tier
1
Levels cross-connected internally
Nie
PE connection
Nie
Mounting rail
TS 35
PE function
Nie

Additional technical data

Explosion-tested version
Yes
Open sides
right
Snap-on
Yes
Type of mounting
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

6 mm²
Blade size
1.0 x 5.5 mm
Clamping range, min.
0,34 mm²
Connection cross-section, stranded, max.
6 mm²
Connection cross-section, stranded, min.
0,34 mm²
Connection direction
top
Gauge to IEC 60947-1
A5
Number of connections
1
Stripping length
12 mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • nominal:
      0,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      0,75 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      1 mm²
    • max.:
      1,5 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      10 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      1,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      2,5 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      4 mm²
    • max.:
      6 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      2,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • nominal:
      4 mm²
  • Tube length:
    • min.:
      10 mm
    • max.:
      18 mm
  • Cross-section for conductor connection:
    • min.:
      6 mm²
    • max.:
      10 mm²
Twin wire-end ferrules, max.
1,5 mm²
Twin wire-end ferrules, min.
0,5 mm²
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22
Wire connection cross section, finely stranded, max.
6 mm²
Wire connection cross section, finely stranded, min.
0,34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,34 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
6 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,34 mm²
Wire connection cross-section, solid core, max.
6 mm²
Wire connection cross-section, solid core, min.
0,34 mm²

General

Mounting rail
TS 35
Number of poles
1
Standards
In accordance with IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 8
Wire connection cross section AWG, min.
AWG 22

Bemessungsdaten

Rated cross-section
6 mm²
Rated voltage
500 V
Rated AC voltage
500 V
Rated DC voltage
500 V
Nominal current
41 A
Current at maximum wires
41 A
Standards
Zgodnie z wymaganiami IEC 60947-7-1
Rezystancja objętościowa wg IEC 60947-7-x
0,78 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
1,31 W
Pollution severity
3
Surge voltage category
III

Clasificaciones

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-19
ECLASS 15.0
27-25-01-19
