ADT 2.5 2C W/O DTLV

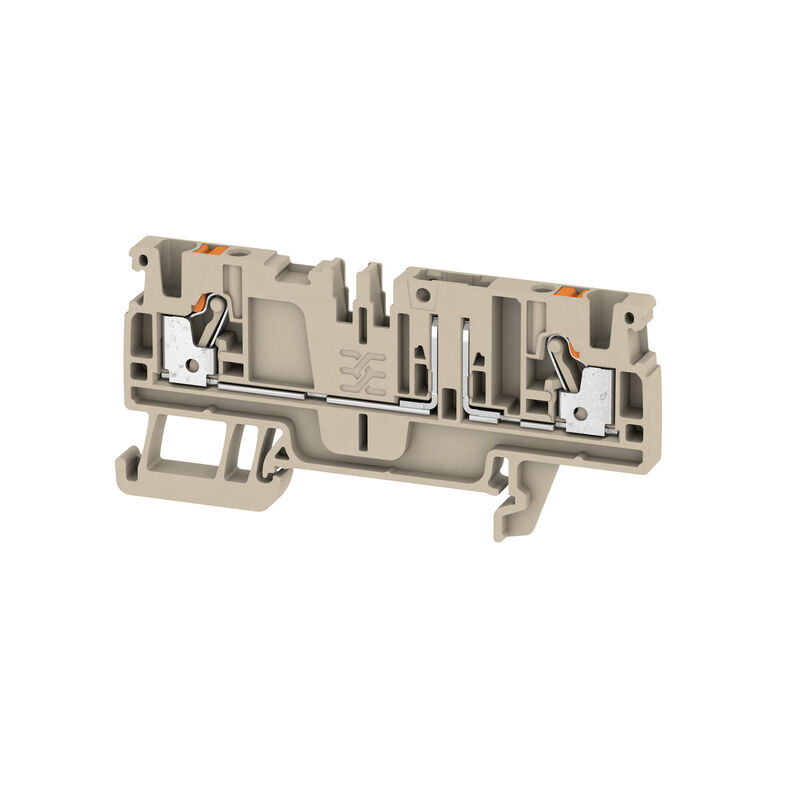

Product image
ADT 2.5 2C W/O DTLV
ADT 2.5 2C W/O DTLV

ADT 2.5 2C W/O DTLV

Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige

Product ID 1989930000
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 97 Is accessoire van 3 Verwante producten 25
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Conductors for clamping (additional connection) Conductors for clamping (rated connection) CSA rating data Disconnect terminals General Rating data UL rating data Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319226/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319244/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319260/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (cURus)
E60693

General ordering data

Version
Test-disconnect terminal, PUSH IN, 2.5 mm², 500 V, 20 A, dark beige
Order No.
1989930000
Type
ADT 2.5 2C W/O DTLV
GTIN (EAN)
4050118374483
Qty.
50  items

Dimensions and weights

Depth
36,5  mm
Depth (inches)
1,437  inch
Depth including DIN rail
37  mm
Height
77,5  mm
Height (inches)
3,051  inch
Width
5,1  mm
Width (inches)
0,201  inch
Net weight
9,117  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60  °C
Continuous operating temp., max.
130  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
Colour of operational elements
orange
UL 94 flammability rating
V-0

System specifications

End cover plate required
Yes
Number of potentials
1
Number of levels
1
Number of clamping points per level
2
Number of potentials per tier
1
Levels cross-connected internally
No
PE connection
No
Mounting rail
TS 35
N-function
No
PE function
No
PEN function
No

Additional technical data

Installation advice
Rail
Open sides
right
Snap-on
No
Type of fixing
Snap-on
Type of mounting
TS 35
With snap-in pegs
No

Conductors for clamping (additional connection)

Connection type, additional connection
PUSH IN

Conductors for clamping (rated connection)

Blade size
0.6 x 3.5 mm
Clamping range, max.
4  mm²
Clamping range, min.
0,14  mm²
Connection cross-section, finely stranded, min.
0,14  mm²
Connection cross-section, stranded, max.
4  mm²
Connection cross-section, stranded, min.
0,14  mm²
Connection direction
top
Gauge to IEC 60947-1
A3
Number of connections
2
Stripping length
10  mm
Tube length for twin wire-end ferrule
  • Tube length:
    • min.:
      8 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      0,75 mm²
Tube length for wire-end ferrule with plastic collar DIN 46228/4
  • Tube length:
    • min.:
      8 mm
    • max.:
      6 mm
  • Cross-section for conductor connection:
    • min.:
      0,34 mm²
    • max.:
      0,14 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      6 mm
  • Cross-section for conductor connection:
    • min.:
      1 mm²
    • max.:
      0,5 mm²
  • Tube length:
    • min.:
      12 mm
    • max.:
      8 mm
  • Cross-section for conductor connection:
    • min.:
      2,5 mm²
    • max.:
      1,5 mm²
Tube length for wire-end ferrule without plastic collar DIN 46228/1
  • Tube length:
    • nominal:
      5 mm
  • Cross-section for conductor connection:
    • nominal:
      0,25 mm²
  • Tube length:
    • min.:
      6 mm
    • max.:
      10 mm
  • Cross-section for conductor connection:
    • min.:
      0,5 mm²
    • max.:
      1 mm²
  • Tube length:
    • min.:
      7 mm
    • max.:
      12 mm
  • Cross-section for conductor connection:
    • min.:
      1,5 mm²
    • max.:
      4 mm²
Twin wire-end ferrules, max.
0,75  mm²
Twin wire-end ferrules, min.
0,5  mm²
Type of connection
PUSH IN
Type of connection 2
PUSH IN
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28
Wire connection cross section, finely stranded, max.
4  mm²
Wire connection cross section, finely stranded, min.
0,14  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
4  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
2,5  mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14  mm²
Wire connection cross-section, solid core, max.
2,5  mm²
Wire connection cross-section, solid core, min.
0,14  mm²

CSA rating data

Certificate No. (CSA)
200039-70089609
Current size B (CSA)
20 A
Current size C (CSA)
20 A
Current size D (CSA)
5 A
Voltage size B (CSA)
300 V
Voltage size C (CSA)
300 V
Voltage size D (CSA)
600 V
Wire cross section max. (CSA)
12 AWG
Wire cross section min. (CSA)
28 AWG

Disconnect terminals

Cross-disconnect
without
Integral test socket
Yes
Slitting
Pivoting

General

Installation advice
Rail
Mounting rail
TS 35
Standards
IEC 60947-7-1
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section AWG, min.
AWG 28

Rating data

Rated cross-section
2,5  mm²
Rated voltage
500  V
Rated DC voltage
500  V
Nominal current
20  A
Current at maximum wires
20  A
Standards
IEC 60947-7-1
Volume resistance according to IEC 60947-7-x
1,33  mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,77  W
Pollution severity
3
Surge voltage category
III

UL rating data

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
12 AWG
Conductor size Factory wiring min. (cURus)
28 AWG
Conductor size Field wiring max. (cURus)
12 AWG
Conductor size Field wiring min. (cURus)
28 AWG
Current size B (cURus)
20 A
Current size C (cURus)
20 A
Current size D (cURus)
5 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Classifications

ETIM 6.0
EC000902
ETIM 7.0
EC000902
ETIM 8.0
EC000902
ETIM 9.0
EC000902
ETIM 10.0
EC000902
ECLASS 9.0
27-14-11-26
ECLASS 9.1
27-14-11-26
ECLASS 10.0
27-14-11-26
ECLASS 11.0
27-14-11-26
ECLASS 12.0
27-14-11-26
ECLASS 13.0
27-25-01-09
ECLASS 14.0
27-25-01-09
ECLASS 15.0
27-25-01-09
