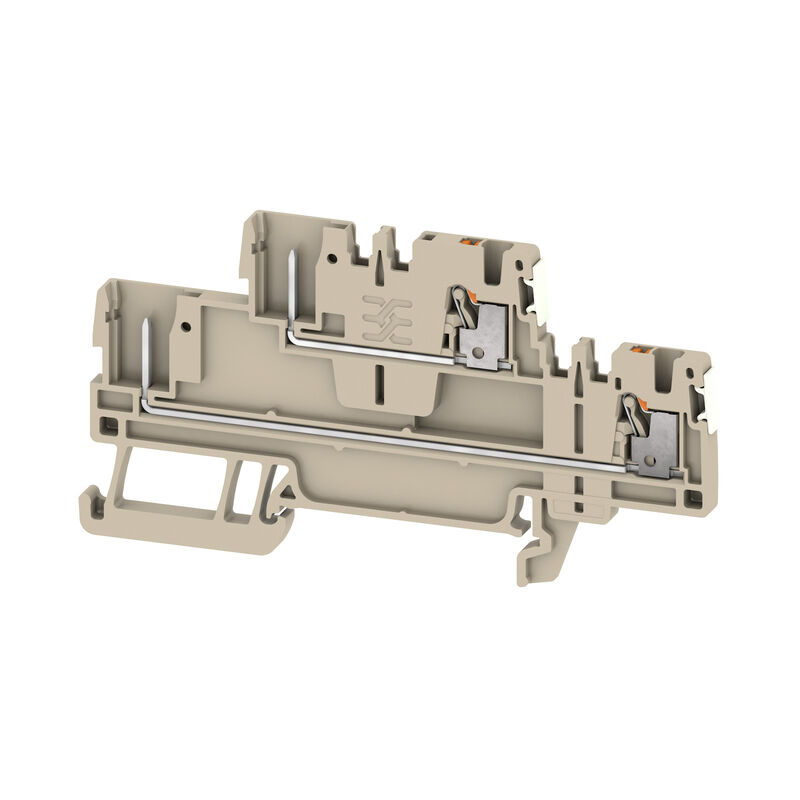

Plug-in modular terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige

Product ID 2675770000
Openen in configurator
Gegevensblad downloaden Engineering Support Product Downloads
Toebehoren 6 Verwante producten 162
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data Rating data IECEx/ATEX System specifications Additional technical data Conductors for clamping (additional connection) przewody zaciskane (złącze wymiarowane) General Rating data dane znamionowe wg UL Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319217/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319230/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319234/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319240/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319213/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Nr certyfikatu (cURus)
E60693

General ordering data

Version
Plug-in modular terminals, PUSH IN, 1.5 mm², 500 V, 17.5 A, dark beige
Order No.
2675770000
Type
APGTB 1.5 2T 4C/2 DL
GTIN (EAN)
4050118716436
Qty.
50 items

Dimensions and weights

Depth
45 mm
Depth (inches)
1,772 inch
Depth including DIN rail
46 mm
Height
84,5 mm
Height (inches)
3,327 inch
Width
3,5 mm
Width (inches)
0,138 inch
Nettó tömeg
8,9 g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-60 °C
Continuous operating temp., max.
130 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Basic material
Wemid
Colour
dark beige
kolor elementów uruchamiających
orange
UL 94 flammability rating
V-0

Rating data IECEx/ATEX

Certificate No. (ATEX)
TUEV16ATEX7940U
Certificate No. (IECEX)
IECEXTUR16.0046U
Napięcie maks. (ATEX)
500 V
Current (ATEX)
10.5 A
Maks. przekrój przewodu (ATEX)
1.5 mm²
Napięcie maks. (IECEX)
500 V
Current (IECEX)
10.5 A
Wire cross section max. (IECEX)
1.5 mm²

System specifications

Flasque de fermeture nécessaire
Yes
Liczba potencjałów
2
liczba poziomów
2
Number of clamping points per level
2
Number of potentials per tier
1
Pisos internos puenteados
No
PE connection
No
장착 레일
TS 35
N-function
No
PE működés
No
PEN function
No

Additional technical data

Explosion-tested version
No
Open sides
right
Snap-on
Yes
Type of fixing
Snap-on
Type of mounting
TS 35

Conductors for clamping (additional connection)

Connection type, additional connection
pluggable

przewody zaciskane (złącze wymiarowane)

1,5 mm²
Blade size
0,4 x 2,0 mm
Clamping range, min.
0,14 mm²
Connection cross-section, stranded, max.
1,5 mm²
Connection cross-section, stranded, min.
0,14 mm²
Connection direction
top
Gauge to IEC 60947-1
A1
Number of connections
4
Stripping length
8 mm
Type of connection
PUSH IN
Type of connection 2
pluggable
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26
Wire connection cross section, finely stranded, max.
1,5 mm²
Wire connection cross section, finely stranded, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/1, min.
0,14 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
1,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,14 mm²
Wire connection cross-section, solid core, max.
1,5 mm²
Wire connection cross-section, solid core, min.
0,14 mm²

General

Mounting rail
TS 35
Wire connection cross section AWG, max.
AWG 14
Wire connection cross section AWG, min.
AWG 26

Rating data

Rated cross-section
1,5 mm²
Tension nominale
500 V
Rated DC voltage
500 V
Nominal current
17,5 A
Current at maximum wires
17,5 A
Volume resistance according to IEC 60947-7-x
1 mΩ
Rated impulse withstand voltage
6 kV
Power loss in accordance with IEC 60947-7-x
0,56 W
Pollution severity
3
Surge voltage category
III

dane znamionowe wg UL

Certificate No. (cURus)
E60693
Conductor size Factory wiring max. (cURus)
14 AWG
Conductor size Factory wiring min. (cURus)
26 AWG
Conductor size Field wiring max. (cURus)
14 AWG
Conductor size Field wiring min. (cURus)
26 AWG
Current size B (cURus)
13 A
Current size C (cURus)
13 A
Current size D (cURus)
5 A
Voltage size B (cURus)
300 V
Voltage size C (cURus)
300 V
Voltage size D (cURus)
600 V

Classifications

ETIM 8.0
EC000897
ETIM 9.0
EC000897
ETIM 10.0
EC000897
ECLASS 14.0
27-25-01-17
ECLASS 15.0
27-25-01-17
