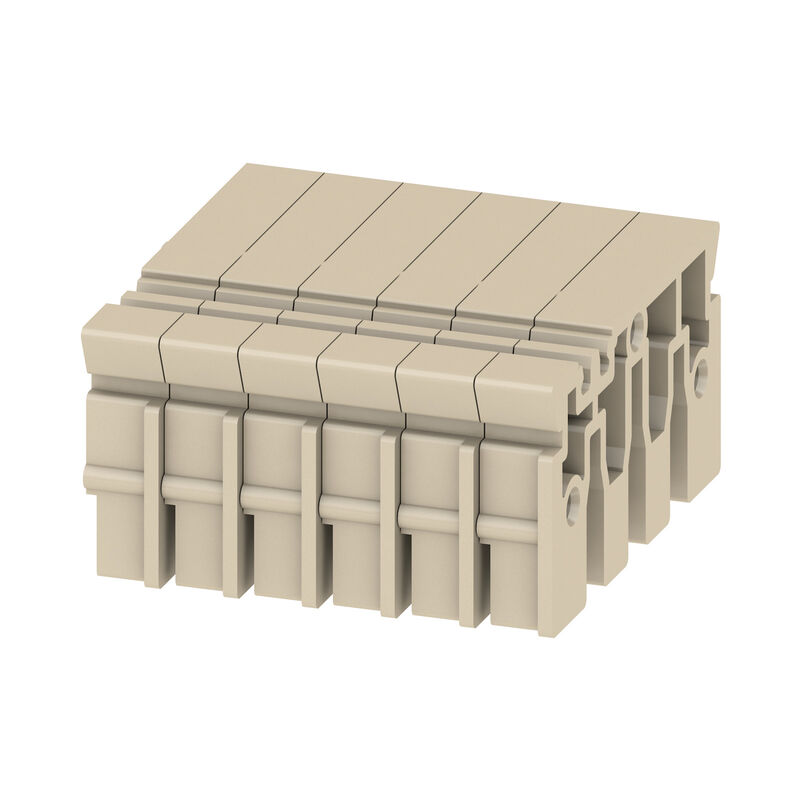

BST 4 ZRV2.5

BST 4 ZRV2.5

Z-series, Blind plug, 20.8 mm, dark beige

Product ID 1906990000
Gegevensblad downloaden Engineering Support Product Downloads
Is accessoire van 2 Verwante producten 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance Material data System specifications Additional technical data Classifications

Approvals

ROHS
Conform

General ordering data

Version
Z-series, Blind plug, 20.8 mm, dark beige
Order No.
1906990000
Type
BST 4 ZRV2.5
GTIN (EAN)
4032248530755
Qty.
25  items

Dimensions and weights

Depth
17  mm
Depth (inches)
0,669  inch
Height
31,5  mm
Height (inches)
1,24  inch
Width
20,8  mm
Width (inches)
0,819  inch
Net weight
5,88  g

Temperatures

Storage temperature
-25 °C...55 °C
Ambient temperature
-5 °C…40 °C
Continuous operating temp., min.
-50  °C
Continuous operating temp., max.
120  °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

Material data

Material
Wemid
Colour
dark beige
UL 94 flammability rating
V-0

System specifications

Version
Plug
End cover plate required
No
Levels cross-connected internally
No

Additional technical data

Explosion-tested version
No

Classifications

ETIM 6.0
EC002848
ETIM 7.0
EC002848
ETIM 8.0
EC002848
ETIM 9.0
EC002848
ETIM 10.0
EC002848
ECLASS 9.0
27-14-11-92
ECLASS 9.1
27-14-11-92
ECLASS 10.0
27-14-11-92
ECLASS 11.0
27-14-11-92
ECLASS 12.0
27-14-11-92
ECLASS 13.0
27-25-03-90
ECLASS 14.0
27-25-03-90
ECLASS 15.0
27-25-03-90
