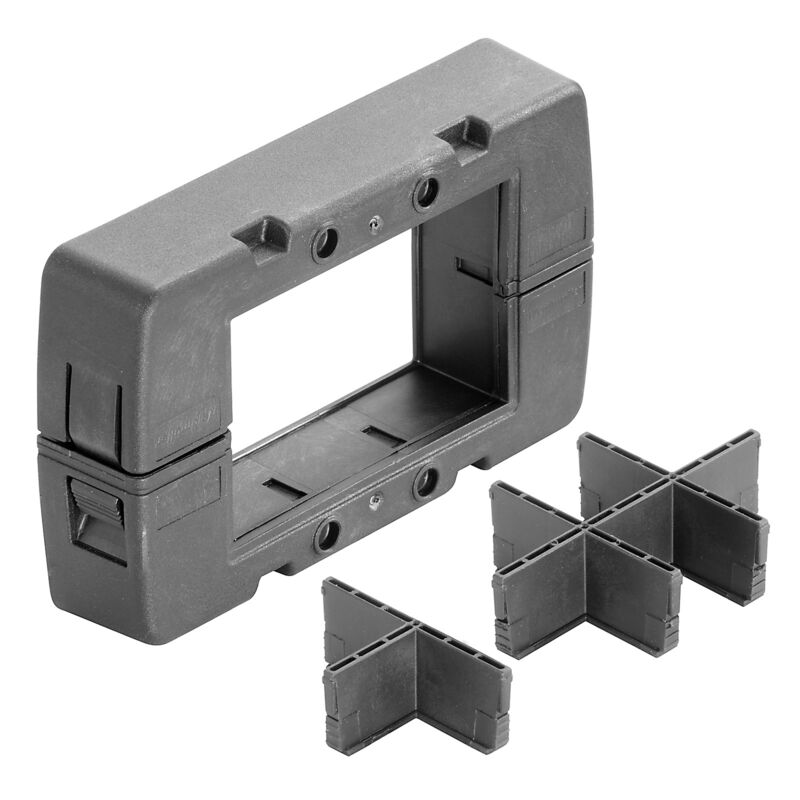

Similar to illustration
CABTITE FRFT 10/6 SET
CABTITE FRFT 10/6 SET
CABTITE FRFT 10/6 SET
Similar to illustration
CABTITE FRFT 10/6 SET
Similar to illustration
CABTITE FRFT 10/6 SET

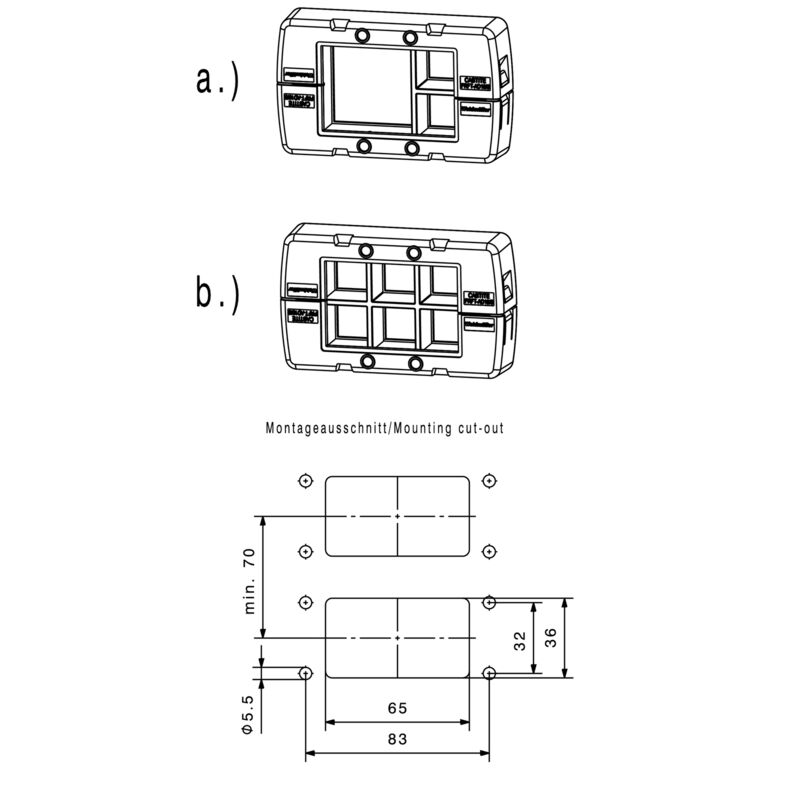

Example of use

CABTITE FRFT 10/6 SET

Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 64 mm, Width: 106 mm, Depth: 24.2 mm, -40 °C…120 °C, IP66

Produkt ID 2891500000
Download datablad Engineering Support Product Downloads
Tilbehør 22 Enkeltdele 22 Anvendte produkter 8
Approvals General ordering data Dimensions and weights Temperatures Environmental Product Compliance General information Standard features Important note Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319222/-S800/-T1z1mm-S80)
ROHS
Conform

General ordering data

Version
Frame, Cabtite (cable entry system), Polyamide, glass fibre-reinforced, Deep black, Height: 64 mm, Width: 106 mm, Depth: 24.2 mm, -40 °C…120 °C, IP66
Order No.
2891500000
Type
CABTITE FRFT 10/6 SET
GTIN (EAN)
4064675880493
Qty.
1 Styk

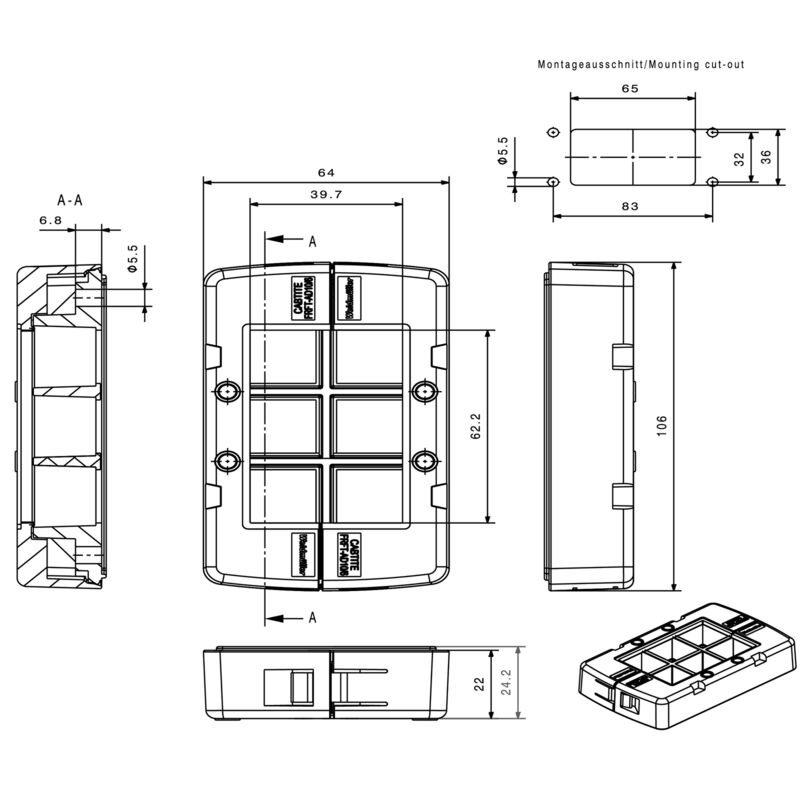

Dimensions and weights

Depth
24,2 mm
Depth (inches)
0,953 inch
Height
64 mm
Height (inches)
2,52 inch
Width
106 mm
Width (inches)
4,173 inch
Net weight
81,6 g

Temperatures

Operating temperature
-40 °C...120 °C

Environmental Product Compliance

RoHS Compliance Status
Compliant without exemption
REACH SVHC
No SVHC above 0.1 wt%

General information

Basic material
Polyamide, glass fibre-reinforced
Brännbarhetsklass enligt UL 94
V-0
Halogener
No
halogen-free
Opening length
68,5 mm
Opening width
36 mm
Protection class (UL)
Type 12
Type 4X
Protection degree
IP66
Sealing
TPE
Sealing element
6 small sealing elements or 1 large sealing element and 2 small sealing elements
Silikon
No
Момент затяжки
3 Nm

Standard features

Version
in closed state

Important note

Product information
The set is made from UR-certified individual parts, so the approval is also valid for the set. Fixing material for mounting on the enclosure or control cabinet, is not included.

Classifications

ETIM 8.0
EC002624
ETIM 9.0
EC002624
ETIM 10.0
EC002624
ECLASS 14.0
27-18-28-15
ECLASS 15.0
27-18-28-15
