DSTV HE BR16 S
DSTV HE BR16 S
DSTV HE BR16 S

DSTV HE BR16 S

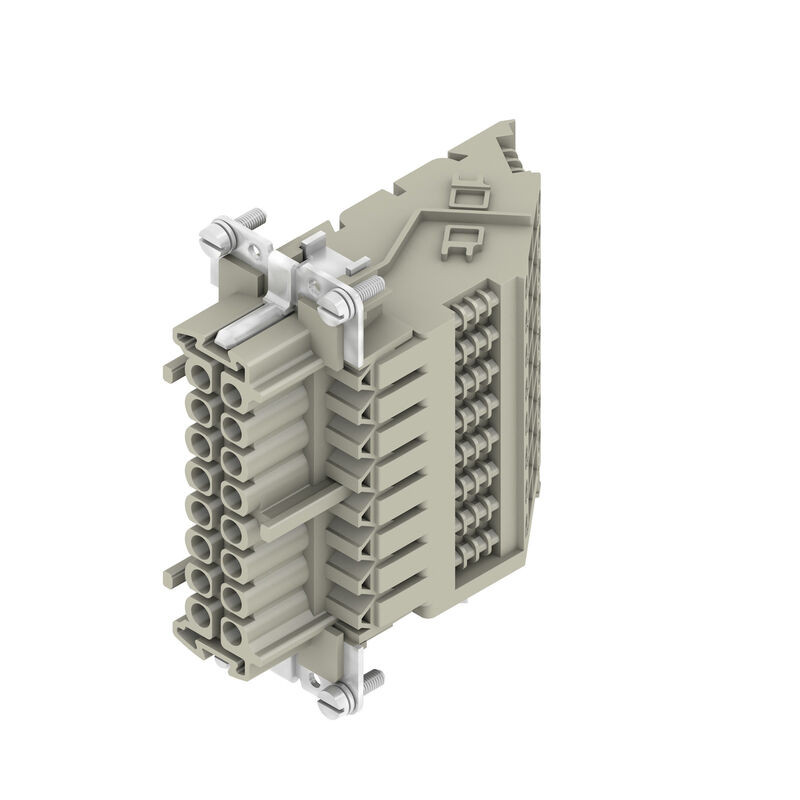

HDC insert, Female, 500 V, 16 A, Number of poles: 16, Screw connection, Installation size: 6

N.º de artículo 1848620000
Descargar hoja de datos Engineering Support Product Downloads
Příslušenství 2 Anvendte produkter 4
Approvals General ordering data Dimensions and weights Environmental Product Compliance General data Connection data PE Version Classifications

Approvals

Approvals
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319262/-S800/-T1z1mm-S80)
![](https://mdcop.weidmueller.com.cn/mediadelivery/rendition/900_319263/-S800/-T1z1mm-S80)
ROHS
Conform
UL File Number Search
[UL Website](https://database.ul.com/cgi-bin/XYV/cgifind/LISEXT/1FRAME/gfilenbr.html)
Certificate No. (UR)
E92202

General ordering data

Version
HDC insert, Female, 500 V, 16 A, Number of poles: 16, Screw connection, Installation size: 6
Order No.
1848620000
Type
DSTV HE BR16 S
GTIN (EAN)
4032248371938
Qty.
10 items

Dimensions and weights

Net weight
183 g

Environmental Product Compliance

RoHS Compliance Status
Compliant with exemption
RoHS Exemption (if applicable/known)
6c
REACH SVHC
Lead 7439-92-1
SCIP
d0694b55-f1aa-4d24-a200-c532c6ffc384

General data

Basic material
Copper alloy
BG
6
Colour
beige
Installation size
6
Insulating material
PC glass-fibre reinforced (UL-listed and railway-certified)
Insulating material group
IIIa
Insulation resistance
1010 Ω
Low smoke acc. DIN EN 45545-2
Yes
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,5 Nm
Number of poles
16
Plugging cycles, silver
≥ 200
Pollution severity
3
Rated current (DIN EN 61984)
16 A
Rated impulse voltage (DIN EN 61984)
6 kV
Rated voltage (DIN EN 61984)
500 V
Rated voltage according to UL/CSA
600 V AC/DC
Series
DSTV-HE
Surface finish
Silver passivated
Type
Female
Type of connection
Screw connection
UL 94 flammability rating
V-0
Volume resistance
≤3 mΩ

Connection data PE

Dimens. caña destornillador pala plana (conexión PE)
SD 0.8 x 4.0
Lunghezza di spellatura, collegamento PE
10 mm
moment dokręcający min. złącze PE
1,2 Nm
Märkarea
4 mm²
Taille de la lame pour vis à tête cruciforme
size PZ1
Tipo de conexión PE
Screw connection
Vis de fixation
M 4
Wire cross section, AWG (PE), max.
AWG 12
Wire cross section, AWG (PE), min.
AWG 20
조임 토크, 최대 PE 결선
1,6 Nm

Version

Anschlussart
Screw connection
Basic material
Copper alloy
Baugröße
6
BG
6
Blade size, slotted (screw connection)
SD 0.6 x 3.5
Conductor cross-section, max.
4 mm²
Conductor cross-section, min.
0,5 mm²
Durchgangswiderstand
≤3 mΩ
Klemmschraube
M 3
Klingenmaß
size PZ0
Leiteranschlussquerschnitt AWG, min.
AWG 20
Max. torque for main contact
0,7 Nm
Min. torque for main contact
0,5 Nm
Stripping length, rated connection
12 mm
Surface finish
Silver passivated
Wire connection cross section AWG, max.
AWG 12
Wire connection cross section, finely stranded, max.
4 mm²
Wire connection cross section, finely stranded, min.
0,5 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, max.
4 mm²
Wire connection cross-section, finely stranded with wire-end ferrules DIN 46228/4, min.
0,5 mm²
Wire cross-section, solid, max.
4 mm²
Wire cross-section, solid, min.
0,5 mm²

Classifications

ETIM 8.0
EC002311
ETIM 9.0
EC002311
ETIM 10.0
EC002311
ECLASS 14.0
27-44-02-03
ECLASS 15.0
27-44-02-03
